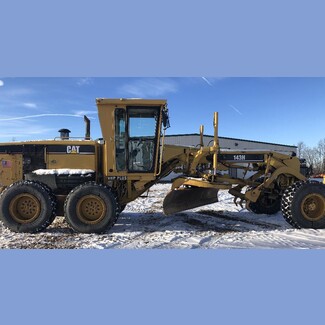

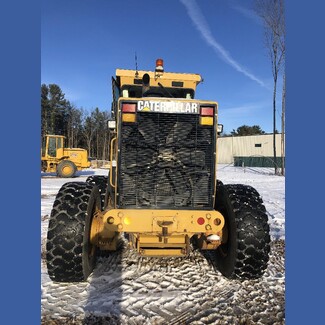

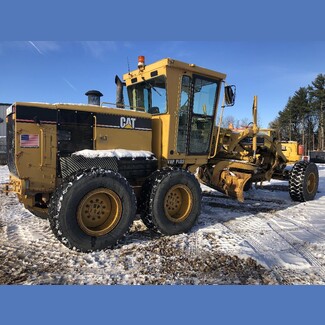

CAT 143H VHP Plus Grader ID: 1136097

CAT 143H VHP Plus Grader

• Make: Caterpillar
• Model: 143H VHP Plus
• Year: 2005
• Condition: Used
• Hours: 7,790 Hours


• Engine
  • Engine Model: 3176C DITA ATAAC VHP
  • Net Power Gear 1-3: 165HP
  • Net Power Gear 4-6: 185HP
  • Net Power Gears 7-8: 205HP
  • Max Power: 205HP
  • Displacement: 629 in³


• Transmission
  • Transmission Type: Direct Drive, Powershift
  • Number Of Gears - Forward: 8
  • Number Of Gears - Reverse: 6
  • Max Speed - Forward: 27.4mph
  • Max Speed - Reverse: 21.6mph


• Circle
  • Diameter: 60.2in
  • Shift Left: 27.4in
  • Shift Right: 28.7in
  • Max Reach Outside Tires - Left: 74.6in
  • Max Reach Outside Tires - Right: 77.9in
  • Max Lift Above Ground: 18.9in
  • Blade Tip Angle - Front: 40°
  • Blade Tip Angle - Rear: 5°


• Moldboard
  • Moldboard Width: 14'
  • Moldboard Height: 24"
  • Moldboard Thickness: 0.9"
  • Max Depth Of Cut: 28.1"
  • Side Shift Left: 20.6"
  • Side Shift Right: 26"
  • Blade Pull At Max Weight: 43,977 Lbs
  • Blade Down Pressure: 30,126.2 Lbs


• Steering
  • Articulation Angle: 20°
  • Turning Radius: 24.6'


• Front Axle
  • Wheel Lean: 18°
  • Oscillation - Total: 32°
  • Ground Clearance: 2'


• Hydraulic System
  • Pump Type: Axial Piston
  • Pump Flow: 54.4 Gal/Min
  • Relief Valve Pressure: 3500 PSI


• Additional Notes:
  • Fuel Capacity: 105 Gal
  • Hydraulic System Fluid Capacity: 20.8 Gal
  • Circle Gearbox Fluid Capacity: 1.8 Gal
  • Tandem Case Fluid Capacity (Each): 16.9 Gal
  • Cooling System Fluid Capacity: 10 Gal
  • One Owner, County Owned
  • Rebuilt Transmission and Differential by Dealer
  • Mid-Mount Scarifier
  • Circle Recently Done

• Overall Dimensions:
  • Length: 28.58"
  • Width: 8.39"
  • Height: 11"
  • Weight: 33,670 Lbs (15,273 Kg)


• Location: USA
