CAT 143H VHP Plus Grader ID: 1136097

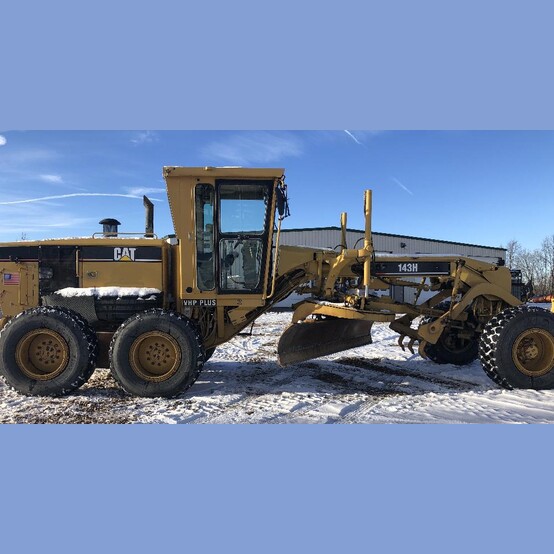

CAT 143H VHP Plus Grader

  • Make: Caterpillar
  • Model: 143H VHP Plus
  • Year: 2005
  • Condition: Used
  • Hours: 7,790 Hours

  • Engine
    • Engine Model: 3176C DITA ATAAC VHP
    • Net Power Gear 1-3: 165HP
    • Net Power Gear 4-6: 185HP
    • Net Power Gears 7-8: 205HP
    • Max Power: 205HP
    • Displacement: 629 in³

  • Transmission
    • Transmission Type: Direct Drive, Powershift
    • Number Of Gears - Forward: 8
    • Number Of Gears - Reverse: 6
    • Max Speed - Forward: 27.4mph
    • Max Speed - Reverse: 21.6mph

  • Circle
    • Diameter: 60.2in
    • Shift Left: 27.4in
    • Shift Right: 28.7in
    • Max Reach Outside Tires - Left: 74.6in
    • Max Reach Outside Tires - Right: 77.9in
    • Max Lift Above Ground: 18.9in
    • Blade Tip Angle - Front: 40°
    • Blade Tip Angle - Rear: 5°

  • Moldboard
    • Moldboard Width: 14'
    • Moldboard Height: 24"
    • Moldboard Thickness: 0.9"
    • Max Depth Of Cut: 28.1"
    • Side Shift Left: 20.6"
    • Side Shift Right: 26"
    • Blade Pull At Max Weight: 43,977 Lbs
    • Blade Down Pressure: 30,126.2 Lbs

  • Steering
    • Articulation Angle: 20°
    • Turning Radius: 24.6'

  • Front Axle
    • Wheel Lean: 18°
    • Oscillation - Total: 32°
    • Ground Clearance: 2'

  • Hydraulic System
    • Pump Type: Axial Piston
    • Pump Flow: 54.4 Gal/Min
    • Relief Valve Pressure: 3500 PSI

  • Additional Notes:
    • Fuel Capacity: 105 Gal
    • Hydraulic System Fluid Capacity: 20.8 Gal
    • Circle Gearbox Fluid Capacity: 1.8 Gal
    • Tandem Case Fluid Capacity (Each): 16.9 Gal
    • Cooling System Fluid Capacity: 10 Gal
    • One Owner, County Owned
    • Rebuilt Transmission and Differential by Dealer

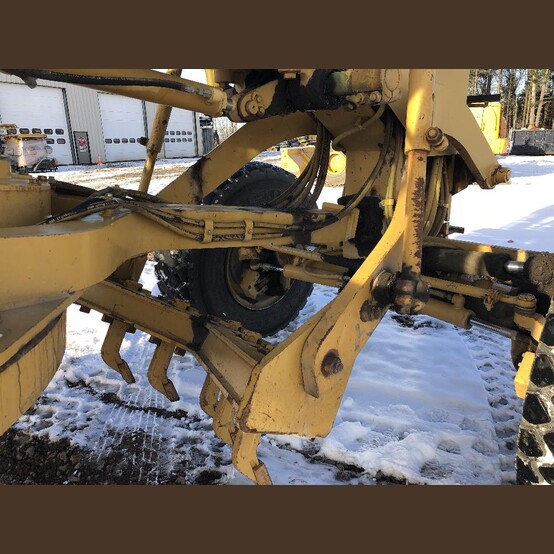

    • Mid-Mount Scarifier
    • Circle Recently Done
  • Overall Dimensions:
    • Length: 28.58"
    • Width: 8.39"
    • Height: 11"
    • Weight: 33,670 Lbs (15,273 Kg)

  • Location: USA
