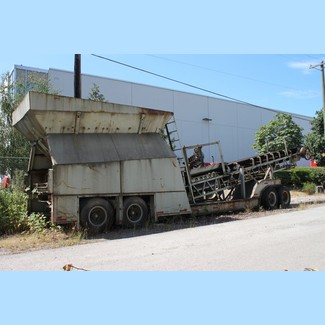

3 ft x 12 ft Portable Apron Feeder ID: 95924

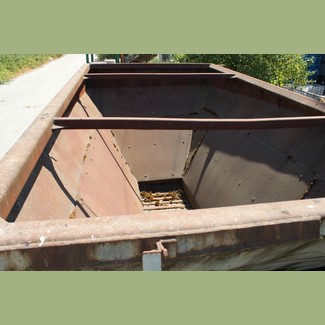

• 8.5 ft W x 16 ft L x 6 ft D feed hopper.
  • Bottom 4 ft. steel lined.
  • 1-1/2 in. thick adjustable discharge gate.
• 3 ft x 12 ft apron feeder - 10 ft inside hopper.
  • 7.5 in. dia x 4.5 in. face steel bed rollers on 15.5 in. centers.
  • 12 in. dia. head and tail sprockets.
  • 7.5 hp electric motor belt driven through Reynord Gear box
    • 13.85-1 ratio.
  • Chain drive to feeder.
  • 6 in. dia. x 4 ft. long flat impact roller section (7 ft. wide discharge plate).

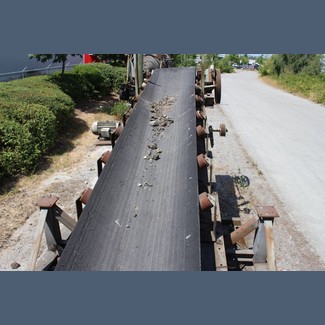

• 36 in. wide x 37 ft. long discharge conveyor.
  • 18 in. rubber head pulley.
  • 16 in. self cleaning tail pulley.
  • 20 hp electric motor.
    • Direct drive through jack shaft & 9 in. sheave.
  • Dodge TXT 5 shaft mount reducer.
  • 5 in. 25 deg. idlers and 26 in. spacing.
• 43 in. long x 21 in. dia. 3 finger rock kicker (8 sections).

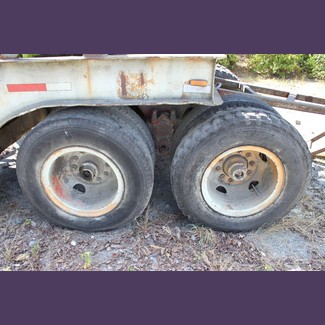

• Twin axle, dual wheel 5th wheel.
  • Front boggie.
  • 10.00-22 tires.
• Overall dimensions: 9 ft. 6 in. wide, 48 ft. long, and 12 ft. 6 in. high.
