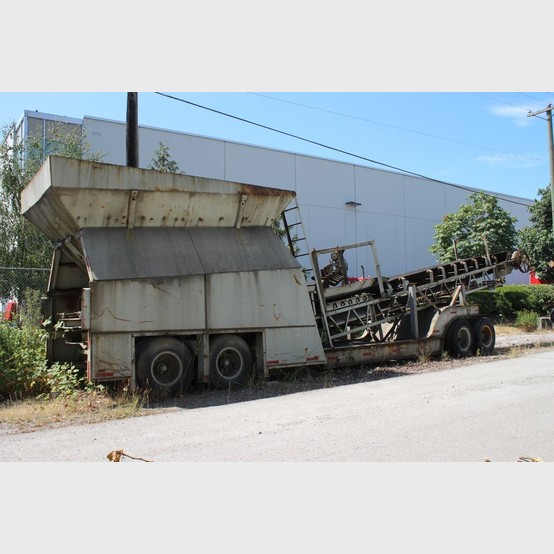

• 8.5 ft W x 16 ft L x 6 ft D feed hopper.
    • Bottom 4 ft. steel lined.
    • 1-1/2 in. thick adjustable discharge gate.
  • 3 ft x 12 ft apron feeder - 10 ft inside hopper.
    • 7.5 in. dia x 4.5 in. face steel bed rollers on 15.5 in. centers.
    • 12 in. dia. head and tail sprockets.
    • 7.5 hp electric motor belt driven through Reynord Gear box
      • 13.85-1 ratio.
    • Chain drive to feeder.
    • 6 in. dia. x 4 ft. long flat impact roller section (7 ft. wide discharge plate).
  • 36 in. wide x 37 ft. long discharge conveyor.
    • 18 in. rubber head pulley.
    • 16 in. self cleaning tail pulley.
    • 20 hp electric motor.
      • Direct drive through jack shaft & 9 in. sheave.
    • Dodge TXT 5 shaft mount reducer.
    • 5 in. 25 deg. idlers and 26 in. spacing.
  • 43 in. long x 21 in. dia. 3 finger rock kicker (8 sections).
  • Twin axle, dual wheel 5th wheel.
    • Front boggie.
    • 10.00-22 tires.
  • Overall dimensions: 9 ft. 6 in. wide, 48 ft. long, and 12 ft. 6 in. high.
Sold
