(Used) Savona Equipment ST70 Custom Scrubber Trommel Wash Plant ID: 1394585

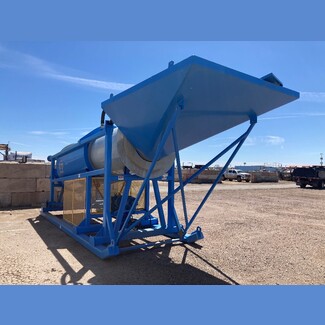

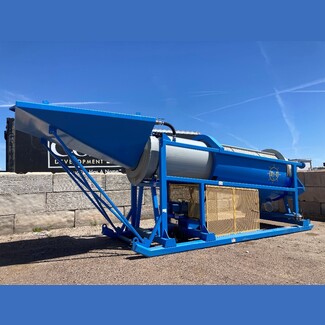

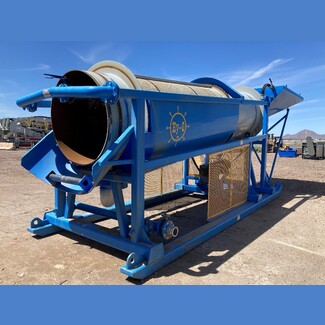

(Used) Savona Equipment ST70 Custom Scrubber Trommel Wash Plant
The Savona Equipment ST-Series Scrubber Trommel Wash Plants are Custom Designed and Built as User-Friendly, Heavy-Duty, and Effective Wash Plants. The Wash Plants can be Operated as Stand-Alone Processing and Gold Recovery Systems with a Sluice Box or as a Processing System that Feeds a Hy-G Concentrator Gold Recovery System.
- Make: Savona Equipment
- Model: ST70 Scrubber Trommel
- Made in Canada
- Condition: Used, Reported in Excellent Condition (2,000 Yards Ran Through)

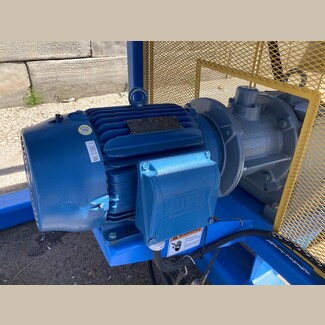

- Drive: 20 HP Electric Drive Motor (Less Electric Starter)
- Voltage: 230/460 Volt
- Heavy Duty Gear Reducer, Sprocket, and Chain Driving Trommel Drum
- Receiving Hopper with Wash Bars and Deflector Plate

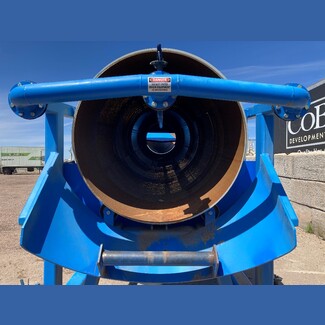

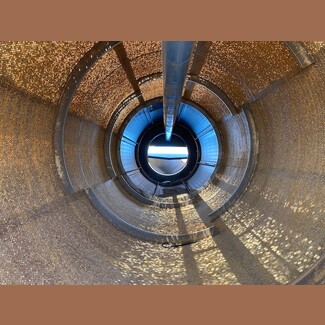

- 48in. Diameter Trommel Drum with Wash Bar, Lifters, Retention Rings, and Punch Plate Screen
- Estimated Capacity: 50 to 100 YPH (75 to 150 TPH)
- Expected Water Consumption: 500 to 800 GPM at 40 to 60 PSI
- Operating Dimensions and Weight:
- Length: 28ft
- Width: 9.5ft to Edges of Hopper Deflector Plate
- Height: 10ft For Transport (Operational - 13ft High to Top of Hopper Deflector Plate)
- Weight: Approx. 14,500 lbs.
- Location: Western USA
