(Used) Savona Equipment ST70 Custom Scrubber Trommel Wash Plant ID: 1394585

Need this? Click here    Have one? Click here

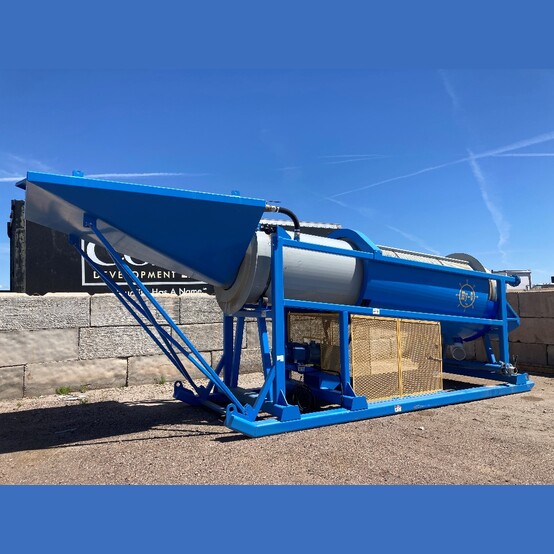

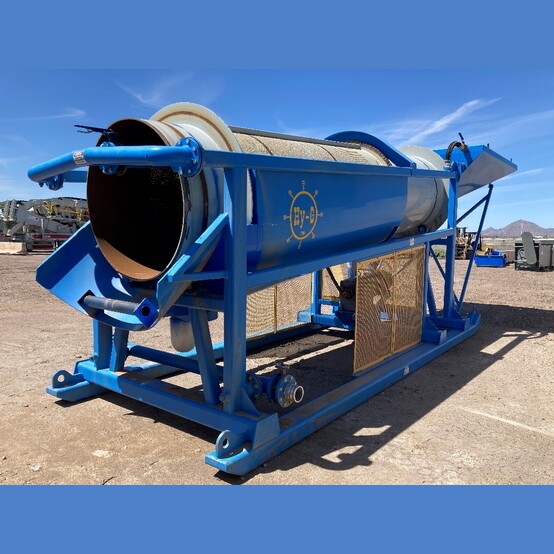

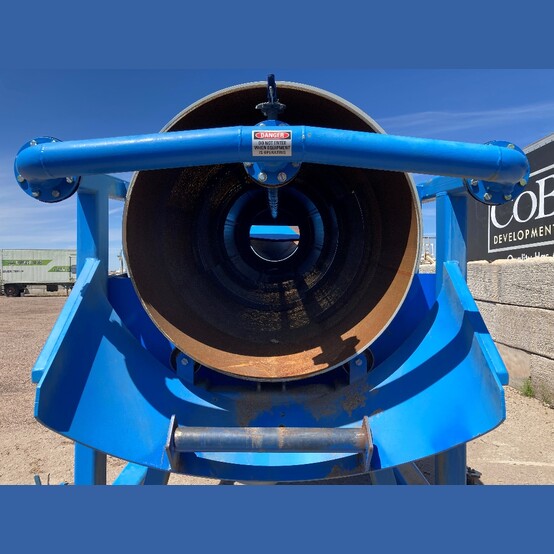

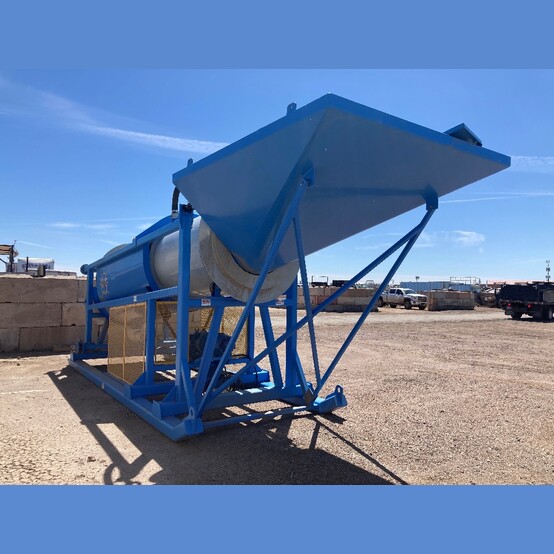

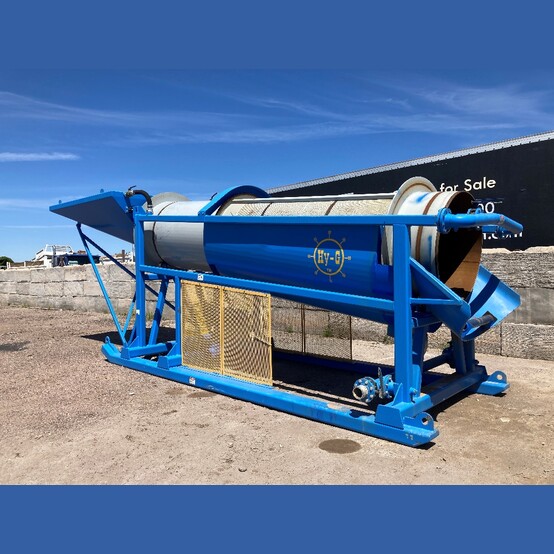

(Used) Savona Equipment ST70 Custom Scrubber Trommel Wash Plant

The Savona Equipment ST-Series Scrubber Trommel Wash Plants are Custom Designed and Built as User-Friendly, Heavy-Duty, and Effective Wash Plants. The Wash Plants can be Operated as Stand-Alone Processing and Gold Recovery Systems with a Sluice Box or as a Processing System that Feeds a Hy-G Concentrator Gold Recovery System.

  • Make: Savona Equipment
  • Model: ST70 Scrubber Trommel
  • Made in Canada
  • Condition: Used, Reported in Excellent Condition (2,000 Yards Ran Through)

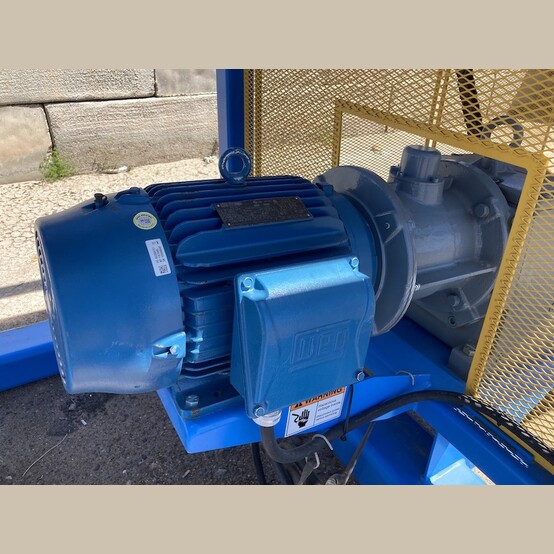

  • Drive: 20 HP Electric Drive Motor (Less Electric Starter)
    • Voltage: 230/460 Volt
  • Heavy Duty Gear Reducer, Sprocket, and Chain Driving Trommel Drum
  • Receiving Hopper with Wash Bars and Deflector Plate

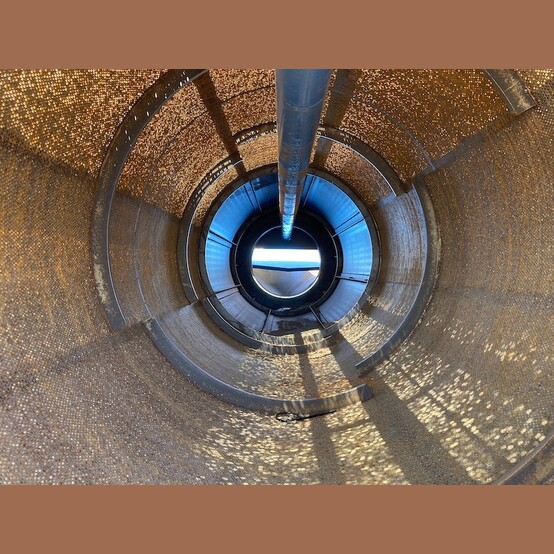

  • 48in. Diameter Trommel Drum with Wash Bar, Lifters, Retention Rings, and Punch Plate Screen
  • Estimated Capacity: 50 to 100 YPH (75 to 150 TPH)
  • Expected Water Consumption: 500 to 800 GPM at 40 to 60 PSI
  • Operating Dimensions and Weight:
    • Length: 28ft
    • Width: 9.5ft to Edges of Hopper Deflector Plate
    • Height: 10ft For Transport (Operational - 13ft High to Top of Hopper Deflector Plate)
    • Weight: Approx. 14,500 lbs.
  • Location: Western USA
