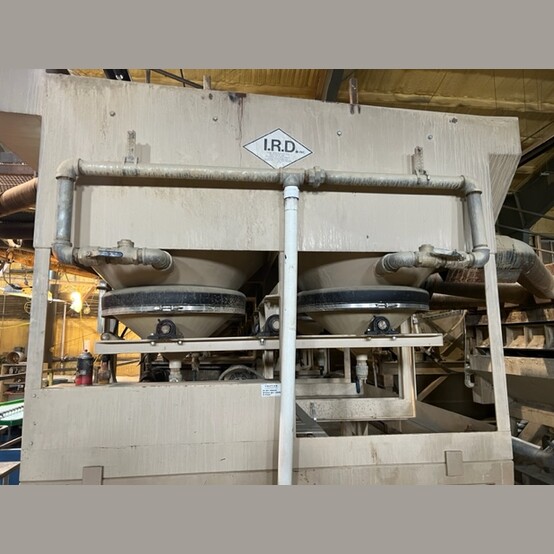

IRD 42in Duplex Mineral Jig

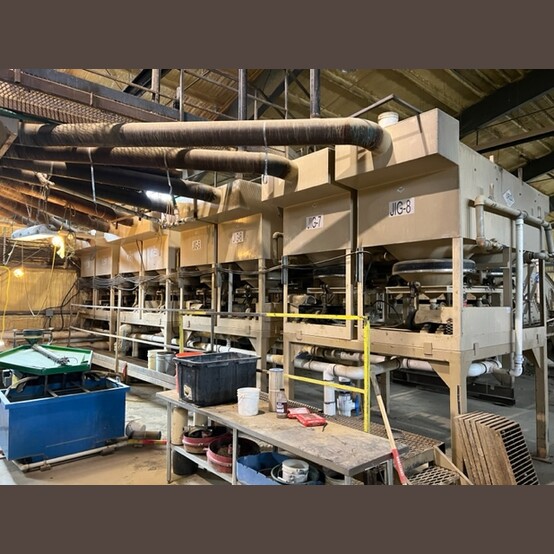

Quantity: 8 Units (To be Sold in Pairs)

• Make: IRD
• Size: 42in x 42in
• Type: Duplex Mineral Jig
• Style: Pan-American
• Condition: Used, In Good Working Order
• With Jig Shot
• Mounted on Stand in Pairs

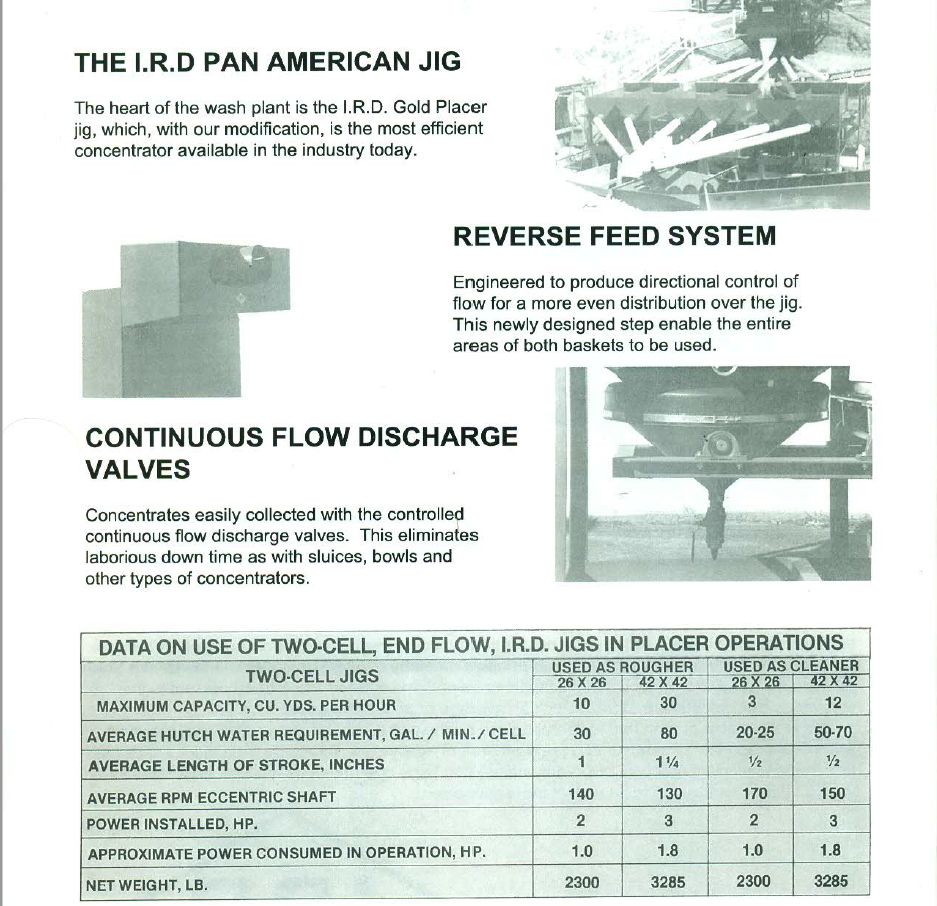

• Specifications if Used as Rougher Jig:
  • Max Capacity: 30 YPH
  • Average Hutch Water Requirement: 80 GPM Per Cell
  • Average Length of Stroke: 1.25 Inches
  • Average RPM Eccentric Shaft: 130
  • Power Installed: 3HP
  • Approx. Power Consumed in Operation: 1.8HP
  • Net Weight: 3,285 Lbs.


• Specifications if Used as Cleaner Jig:
  • Max Capacity: 12 YPH
  • Average Hutch Water Requirement: 50-70 GPM Per Cell
  • Average Length of Stroke: 1/2 Inch
  • Average RPM Eccentric Shaft: 150
  • Power Installed: 3HP
  • Approximate Power Consumed in Operation: 1.8HP
  • Net Weight: 3,285 Lbs.

• Location: Central USA
