(New) Savona Equipment ST50 Trommel ID: 111324

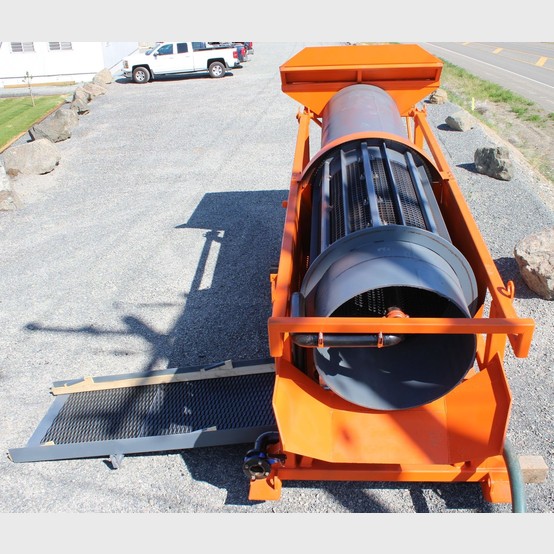

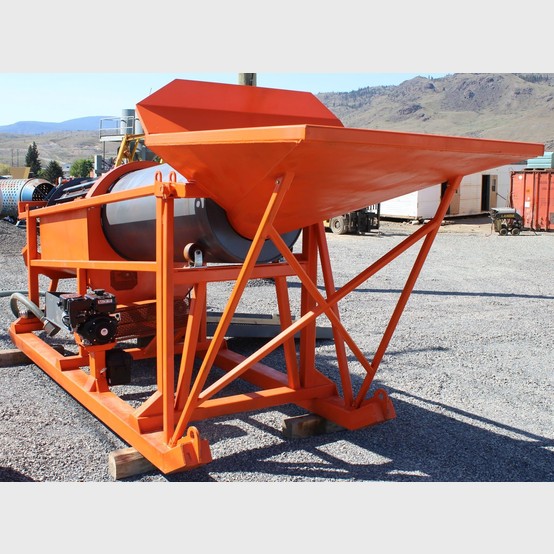

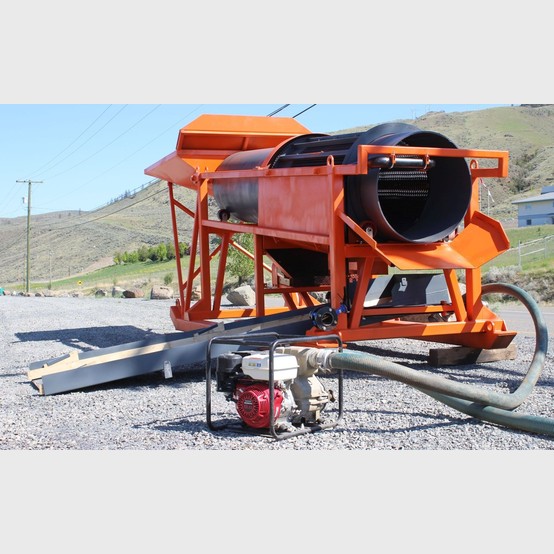

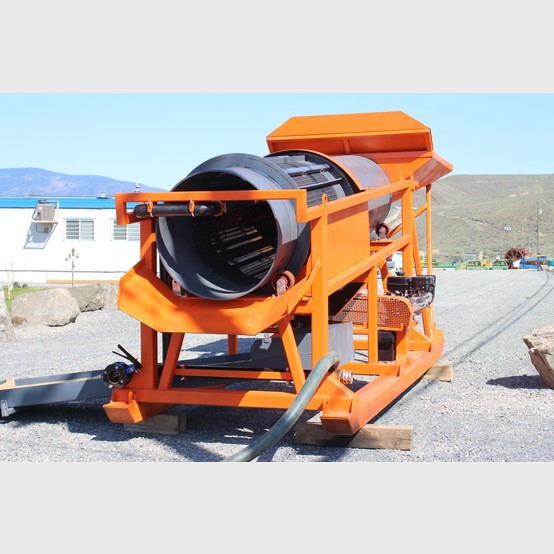

  • Savona Equipment ST50 Trommel.
    • Capacity: 50 YPH (Approx. 75 TPH) maximum.

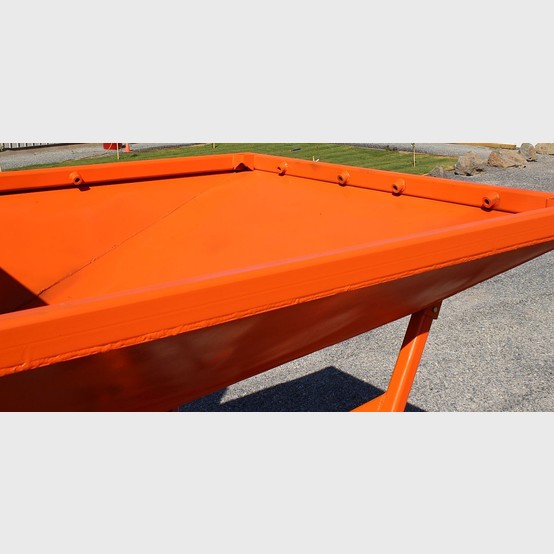

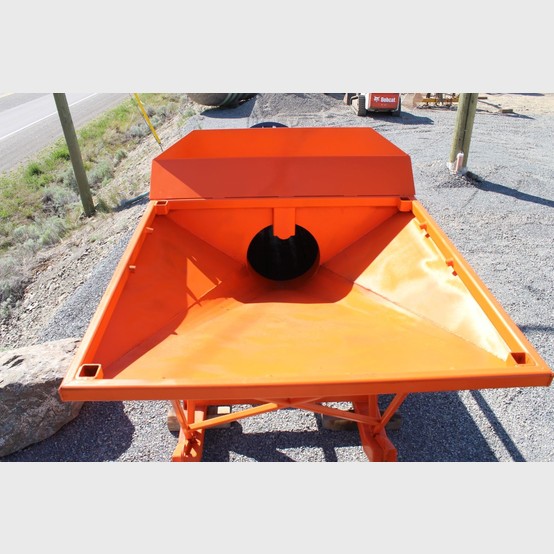

    • 5 ft. x 5 ft. (1.52m x 1.52m) feed hopper with 8 heavy duty perimeter water feed nozzles.
      • Corner stake pockets for overhead grizzly (not included).
    • 3 ft. x 14 ft. (0.91m x 4.27m) drum.

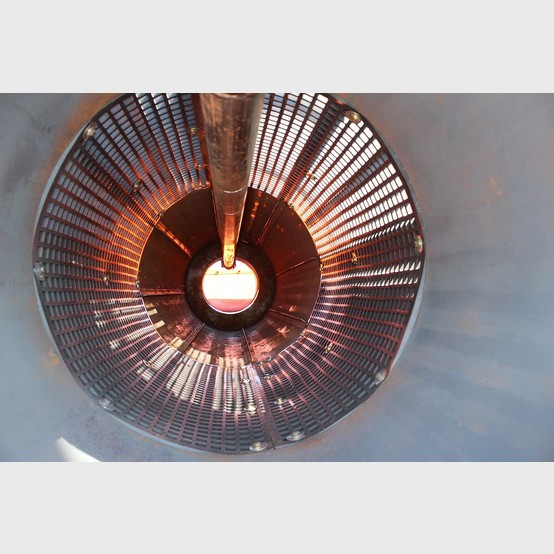

      • ¾ in. (19mm) urethane screen.
        • Length of screening and scrubbing sections can be customized.
        • Screen opening size can be customized.
          • Punch plate or Laser cut AR plate optional.
      • Scrubber section with internal lifters.
      • 2 ft. (0.61m) long tail section.
      • 3 in. (7.6cm) water manifold and internal drum spray bar.
      • Drum supported by 6 in. (15.2cm) heavy duty caster wheels with a 3 in. (7.6cm) wide face.
    • 4 ft. (1.22m) wide tails discharge chute.
    • Electric drive:
      • Diesel or gas drive optional.
    • 5 ft. (1.52m) long fines collection trough with 12 in. x 24 in. (30.5 cm x 61 cm) discharge to sluice.
    • Water Consumption: 300 gpm.

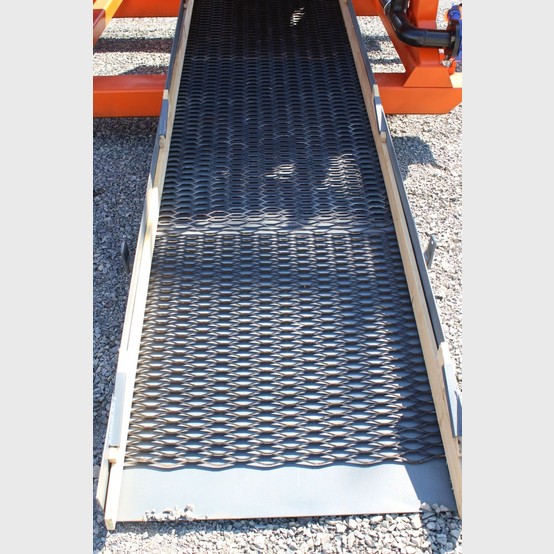

    • Sluice Box:
      • Complete with boiler box and slick plates for improved performance.
        • Length can be customized.
  • All heavy duty square tube frame.
  • 8 in. x 8 in. (20.3 cm x 20.3 cm) square tube skid base with pulling eyes at each end.



  • Shipping dimensions:
    • 6 ft. wide x 18 ft. long x 7 ft. 3 in. high.
    • 1.83m wide x 5.49m long x 2.21m high.
  • Savona ST50 Trommels are built upon order.



The new ST50 Trommel manufactured by Savona Equipment is designed for ease of use, effective recovery, and to withstand severe conditions. This trommel is manufactured to fit into shipping containers perfectly and can be easily transported to your locations. We distribute the ST50 Trommel worldwide.
