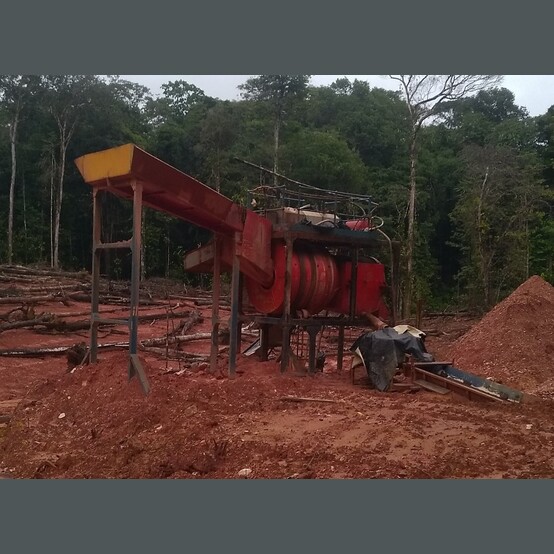

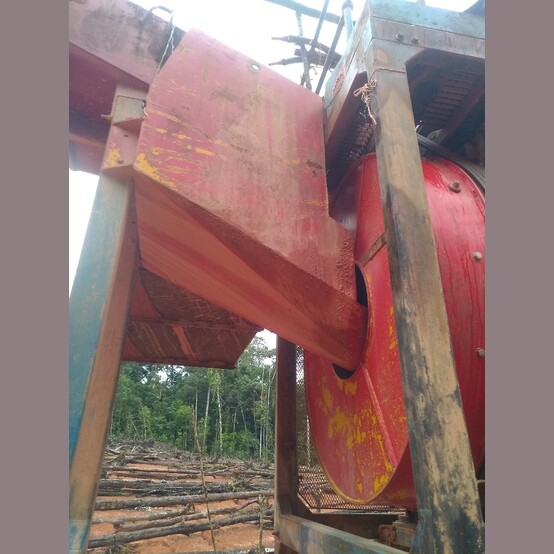

APT RG 200 Scrubber Trommel

• Make: APT (Appropriate Process Technologies)
• Model: RG 200 MK3 - Rubble Scrubber
• Capacity: 20 TPH
• Year: 2010
• Hours: 900 Hours
• Water Requirement: 18-22m³ Per Hour

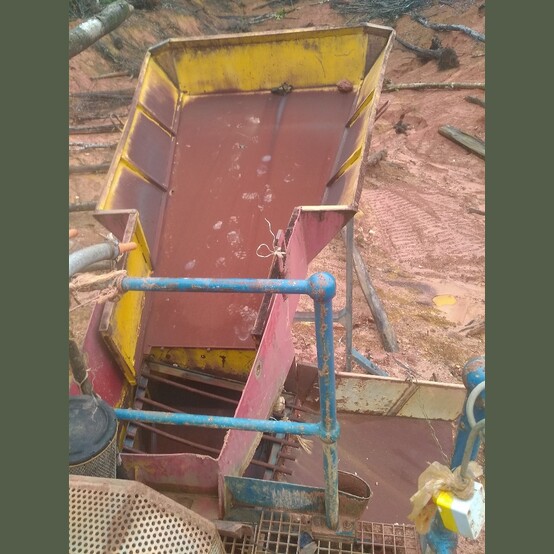

• Max Feed Size: 150mm

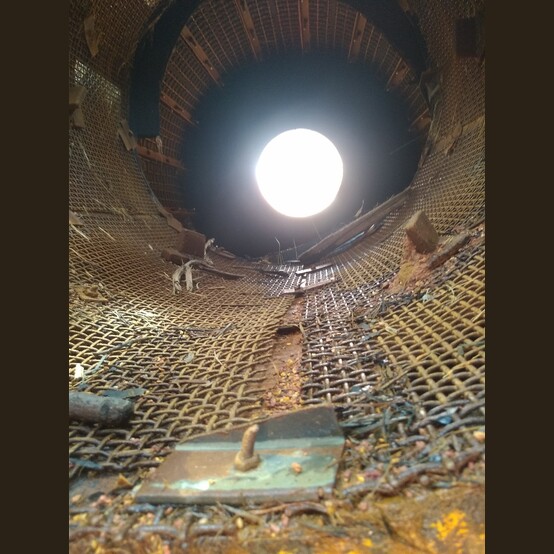

• Screen Size: Passing -3mm
• Discharge: 6in Diameter

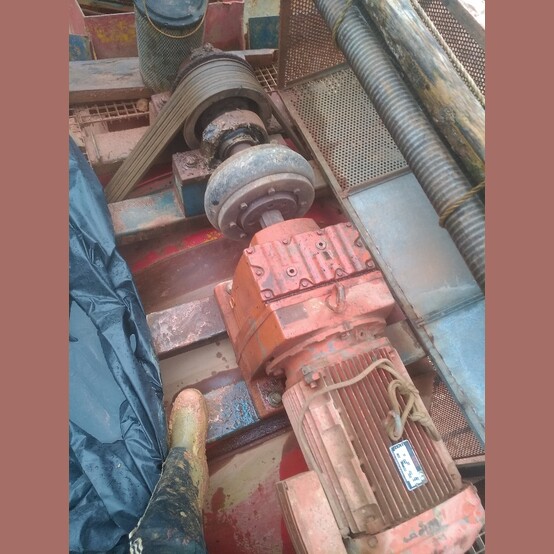

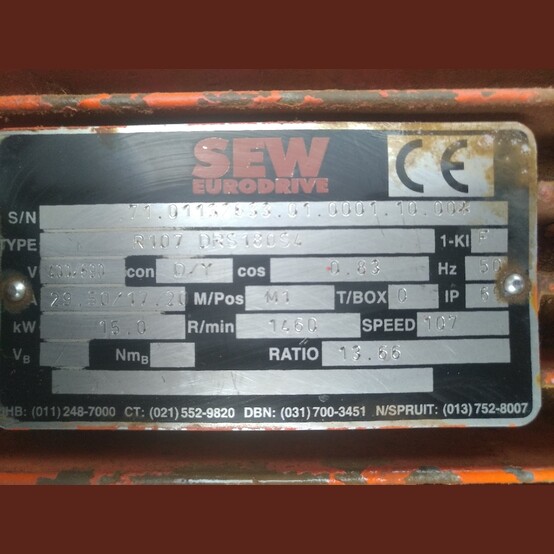

• Power (Drive Motor): 15kW
  • Voltage: 40/690 Volts
  • Speed: 1460 RPM
    • Ratio: 13.66-1
  • Frequency: 50Hz
• Can be Disassembled to Enter Containers/Helicopter Transport
• Comes With:
  • 4 Spare Bearings
  • 3 Spare of 0.5mm Screen
  • 1 Spare Set of 10mm Screen
  • Data Sheet, Electrical Scheme Available


• Overall Dimensions:
  • Length: 7.2m
  • Width: 3.5m
  • Height: 4.8m
  • Weight: 6.5 Tonnes (Approx.)


• Location: South America

View Spec Sheet Below
