IRD 42in x 42in Duplex Mineral Jigs ID: 1397400

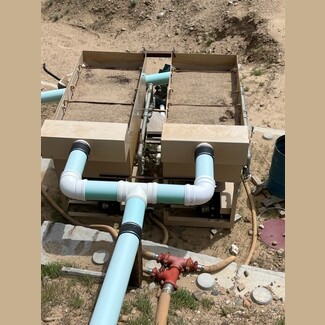

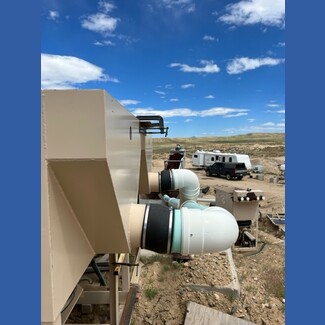

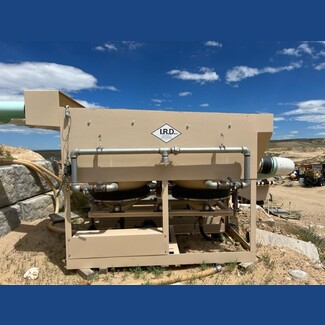

IRD 42in x 42in Duplex Mineral Jigs

Qty: 2 Units

  • Make: I.R.D. Inc.
  • Size: 42in x 42in
  • Type: Duplex Mineral Jig
  • Style: Pan American Jig
  • Year: 2021
  • Hours: 100 Hours Per Unit
  • Condition: Used, Reported in Excellent Condition
  • Jig Shot Included
  • Max Capacity:
    • Rougher: 30yd³ Per Hour
    • Cleaner: 12yd³ Per Hour
  • Average Hutch Water Required:
    • Rougher: 80 Gallon Per Minute Per Cell
    • Cleaner: 50-70 Gallons Per Minute Per Cell
  • Average Length of Stroke:
    • Rougher: 1.25in
    • Cleaner: 0.5in
  • Average RPM of Eccentric Shaft:
    • Rougher: 170 RPM
    • Cleaner: 150 RPM
  • Power Installed: 3.0HP
  • Approx. Power Consumed in Operation: 1.8HP
  • Net Weight: 3,285 Lbs.

  • Location: Central USA
