8in Wide x 9.5ft Long Conveyor ID: 1437107

8in Wide x 9.5ft Long Conveyor

• Type: Channel Conveyor
• Condition: Used Condition
• Size: 8in Wide x 9.5ft Long
• Belt:
  • Dimensions: 8in Wide x 9ft 7in Long
  • Ply: 1-Ply

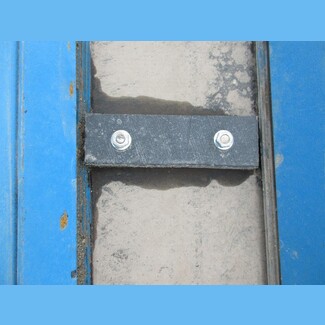

  • Belt Cleats: Poly Plastic; 5in Long x 1.5in Wide x 0.5in High
• Head Pulley: 4in Diameter x 8in Wide
• Tail Pulley: 4in Diameter x 8in Wide
• Legs: 3in x 3in Square Tubing

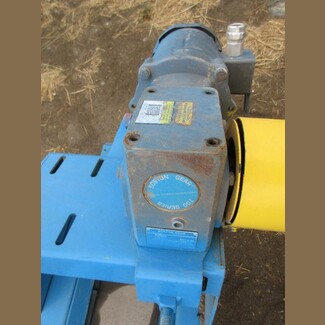

• Drive: Baldor Gearhead Electric Motor
  • Power Output: 0.33HP
  • Speed: 1725 RPM
  • Voltage: 115/230 Volt
  • Current: 6/3 Amps
  • Frequency: 60Hz
  • Phase: Single

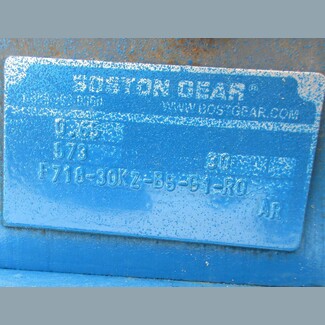

  • Speed Reducer: Boston Gear F718-30KZ-B5-G1-R0
    • Ratio: 30-1


• Overall Dimensions:
  • Length: 10ft
  • Width: 17in
  • Height: 36in


• Location: Savona, British Columbia, Canada
