500 Gallon Stainless Steel Tank With 5HP Mixer ID: 1502884

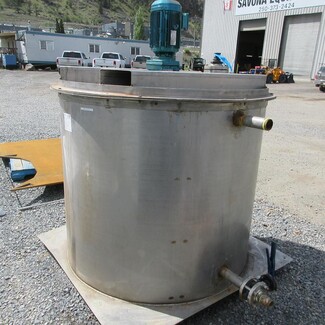

500 Gallon Stainless Steel Tank With 5HP Mixer

• Type: Tank with Mixer
• Condition: Used Condition


• Tank:
  • Construction: Stainless Steel
  • Capacity: 500 U.S. Gallons (502.7 U.S. Gallons)
  • Tank Size: 55.5in Dia. x 48in High
  • Baffle: (3) Internal Stainless Steel Baffles along Outer Edge
  • Top Inlet: 3in Dia. Threaded with Reducers to 1.5in Camlock
  • Top Side Inlet: 2in Dia. Threaded
  • Middle Side Outlet: 2in Dia. Female Threaded with Reducers to 1in Ball Valve
  • Bottom Side Outlet: 2in Dia. Threaded with Butterfly Valve and 1.5in Camlock
  • Additional 8in x 8in Cutout on Top for an Additional Mixer
  • Forklift Pocket on Top of Tank


• Mixer:

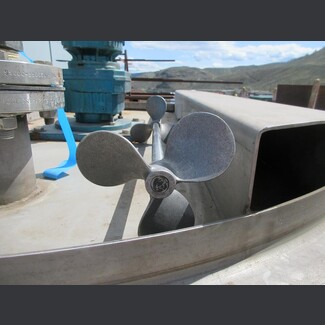

  • Mixing Shaft(s):
    • (1) Shaft with Dual 3-Blade Mixer
      • Blade Length: 9.5in

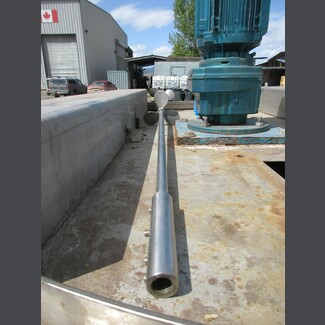

    • (1) 51in Long Shaft with Dual 3-Blade Propeller-Style Mixer
      • Blade Length: 2.5in
  • Drive: SEW-Eurodrive RF57 DRN100L4 Motor
    • Power Output: 5.0HP (3.7kW)
    • Rotating Speed: 1758 RPM
    • Voltage: 230/460 Volt
    • Current: 14.3/7.2 Amps
    • Frequency: 60Hz
    • Phase: 3-Phase
    • Reducer: SEW-Eurodrive RF57/A
      • Ratio: 7.97-1
      • Output Speed: 221 RPM


• Overall Dimensions:
  • Length: 74in
  • Width: 60in
  • Height: 72in


• Location: Savona, British Columbia, Canada
