Yamada NDP-20BAH Diaphragm Pump ID: 1653749

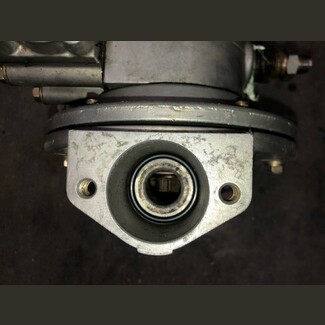

Yamada NDP-20BAH Diaphragm Pump

• Make: Yamada
• Model: NDP-20BAH
• Type: Diaphragm Pump
• Style: Air Powered Double Diaphragm (AODD) Pump
• Condition: Used Condition - Used Once


• General Model Specifications:
  • Inlet: 3/4" (0.75in)
  • Outlet: 3/4" (0.75in)
  • Max Suction Lift: 18ft
  • Max Flow: 31.7 GPM
  • Discharge Volume Per Cycle: 0.163 Gallons
  • Max Cycles Per Minute: 195
  • Max Temp: 248°F (120°C)
  • Max Solid Handling: 1/16" (2mm)
  • Body Material: Aluminum
  • Air Motor Material: Aluminum
  • Air Exhaust: 3/8" Female NPT (includes Silencer)
  • Air Inlet: 1/4" Female NPT (includes Ball Valve)
  • Air Supply Pressure: 20-100 PSI
  • Connection Type: FNPT
  • Diaphragm: Hytrel (TPE)


• Dimensions:
  • Depth: 12.5in
  • Width: 9.8in
  • Height: 12.6in
  • Weight: 19.8 lbs. (9.0 kg)


• Location: Western Canada
