2x Sandvik DB120 Secondary Breaking Drills ID: 1369152

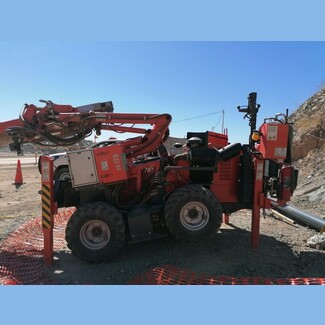

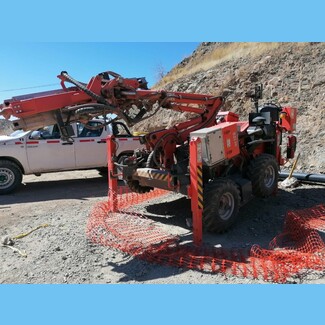

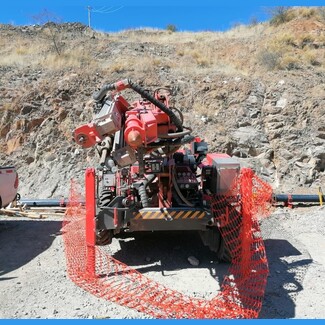

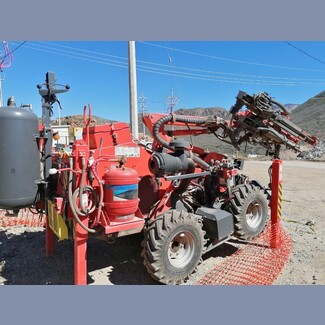

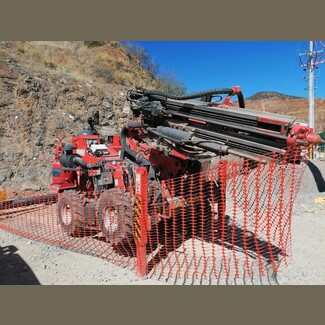

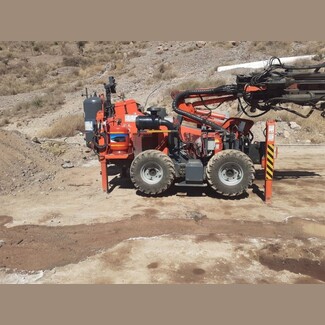

Sandvik DB120 Secondary Breaking Drills

Quantity: 2 Units

• Make: Sandvik
• Model: DB120 Commander
• Year: 2020 and 2019

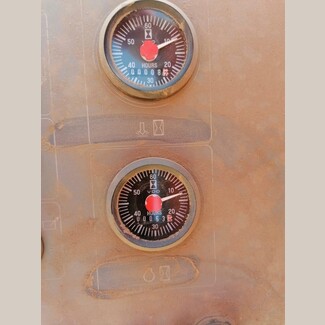

• Hours:
  • Unit 1:

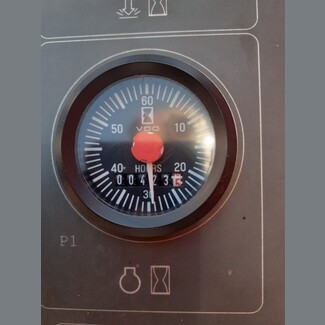

    • Engine: 423.5 Hours

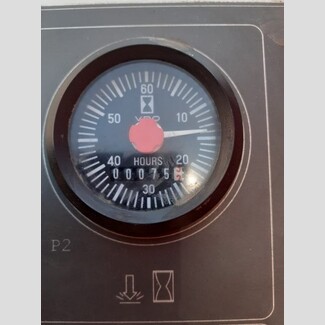

    • Drill: 75.3 Hours
  • Unit 2:
    • Engine: 53.3 Hours
    • Drill: 8.2 Hours
• Condition: Used, Reported in Good Condition
• Key Features:
  • Method: Drill - Split
  • Splitter: Hydraulic Wedge
  • Splitting Force: 6,500 kN
  • Drift Size (Min): 3m x 3m
  • Hole Diameter: 48mm
  • Hole Length: 800-1,200mm
  • Control System: Radio Remote
  • Total Weight: 5,600 kg


• General Model Specifications:

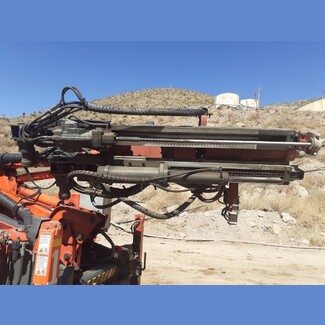

  • Hydraulic Rock Drill:
    • Type: HLX1 (TS2-253)
    • Percussion Power: 6.5kW
    • Operating Pressure: 100 - 180 bar
    • Percussion Rate: 70-88Hz
    • Rotation Torque: 100 Nm (@ 100 bar)
    • Drill Steel:
      • Shank R25
      • Coupling Sleeve R25
      • Extension Rod 5’
      • Button Bit R25
    • Hole Diameter: 48mm
    • Weight: 50kg
    • Length: 488mm
    • Profile Height: 66mm
    • Shank Lubrication Device: Air/Oil Mist


  • Hydraulic Splitter:
    • Required Hole Diameter: 48mm
    • Length of Wedge: 1,430mm
    • Minimum Hole Depth: 800mm
    • Splitting Force: 6,500 kN
    • Weight: 65kg
    • Max. Pressure: 300 bar
    • Greasing: Automatic Oil Mist


  • Rock Drill Feed:
    • Chain Feed for HLX1: CF300-5’
    • Feed Length: 2,525mm
    • Rock Drill Travel: 1,300mm
    • Max. Hole Length: 1,200mm
    • Feed/Pull Out Force: 15 kN


  • Splitter Feed:
    • Chain Feed for Splitter: CF300, Splitter
    • Feed Length: 2,180mm
    • Splitter Travel: 1,165mm


  • Boom:
    • Type of Boom: DB300 Special, Articulated
    • Boom Swing: ± 39°
    • Feed Swing: ± 40°
    • Feed Tilt: 104°


  • Hydraulic System:
    • Power Pack: Diesel Engine
    • Percussion Pump:
      • Variable Displacement Pump
      • 2 Gear Pumps
    • Filtration Size: 10 micron (abs)
    • Cooling Capacity: Up to ± 40°C Ambient
    • Hydraulic Oil Tank: 75 Liters
    • Driving, Boom and Drilling: Load Sensing System


  • Flushing System:
    • Flushing: Air Mist Flushing
    • Flushing Air Pressure: 4 -8 bar

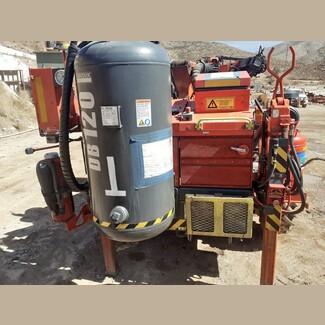

    • Compressor: Enduro, 12, Screw Type
    • Compressor Capacity: 2.5m³/min
    • Air Consumption: 250 Nl/min
    • Oil Consumption: 50 - 100 g/h
    • Air Cleaner for Compressor: 1 pc

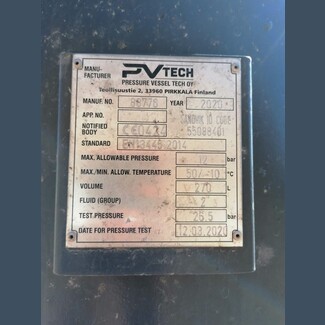

    • Water Tank: 250 Liters Pressurized, On-Board
    • Max. Water Flow: 1-5 Liters/min

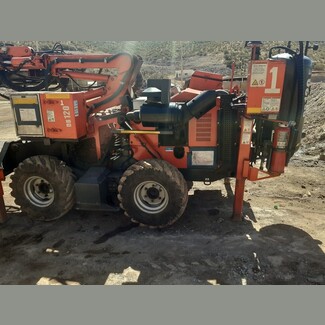

  • Carrier:
    • Type of Carrier: DC302R Special
    • Carrier Type: Rubber Tire, 4-Wheel Drive
    • Oscillation Angles: ± 16°
    • Max Banking: ± 5°
    • Ground Clearance: 380mm
    • Diesel Engine: CAT C4.4, 61 kW, Tier 3, Stage IIIIA
    • Exhaust Catalyzer: Standard
    • Air Cleaner for Engine: 1 pc
    • Transmission: Hydrostatic
    • Tires: 11.5/80 - 15.3
    • Service Brakes: Spring Applied, Hydraulically Released
    • Tramming Speed:
      • 5.1 km/h (Horizontal)
      • 4.5 km/h (14% = 1:7 =8°)
      • Slow Drive Limited at 1 km/h
    • Gradeability: Max 15°
    • Average Fuel Consumption: 8 - 10 Liters/Hr.
    • Fuel Tank: 100 Liters
    • Fuel Saving System: Standard
    • Handheld Fire Extinguisher: 7.7 or 9 kg (Type ABC)

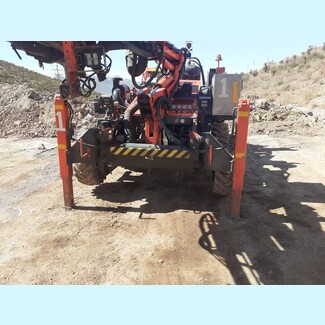

    • Hydraulic Jacks:
      • 2 x Vertical (Front)
      • 2 x Vertical (Rear)


• Location: Mexico
