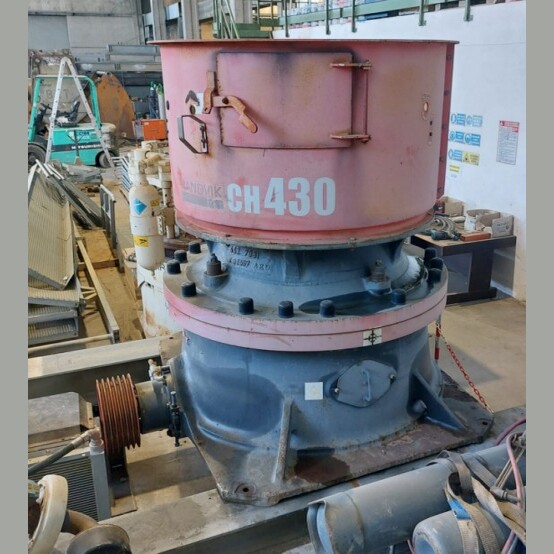

Sandvik CH430 Cone Crusher

• Make: Sandvik
• Model: CH430
• Year: 2011
• Condition: Good, Used Condition
• Hours: Approx. 200 Hours
• Liners Installed: Medium

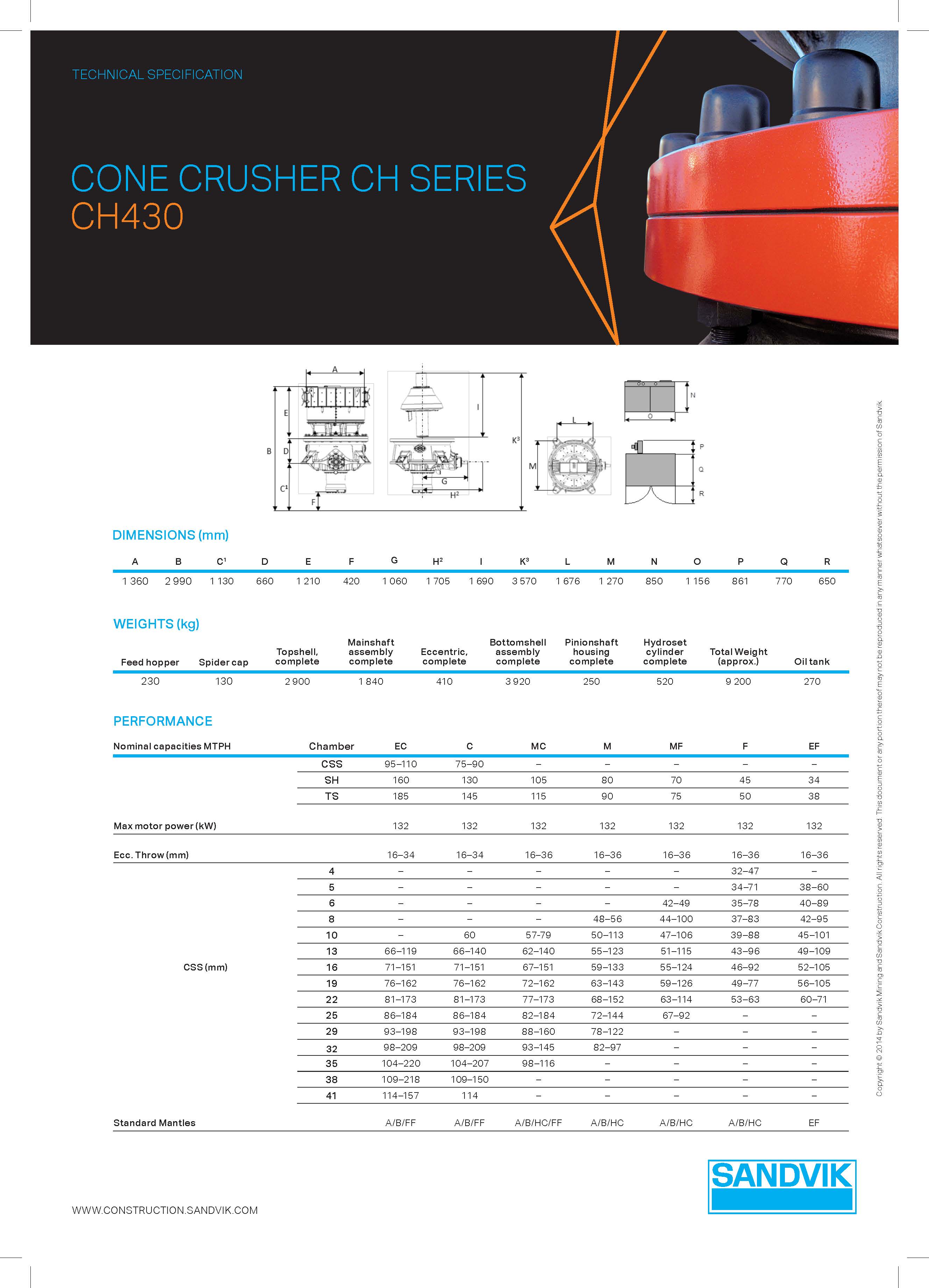

  View Spec Sheet Below


• General Model Specifications:
  • Nominal Capacity: 26-215 MTPH
  • Max. Feed Size: 42-214mm (1.7-8.43in)
  • Closed Side Setting (CSS) Range: 4-41mm (0.2-1.6in)
  • Eccentric Throw Range: 16-36mm
  • Automation System


• Drive: Electric Motor
  • Motor Power: 110kW (147.5HP)
  • Voltage: 380/660 Volts
  • Frequency: 50Hz
  • Frame: 315S/M-04


• Shipping Dimensions:
  • Length: 1,500mm
  • Width: 2,500mm
  • Height: 1,500mm
  • Weight: 10,516 kg (23,181 lbs.)


• Location: Europe
