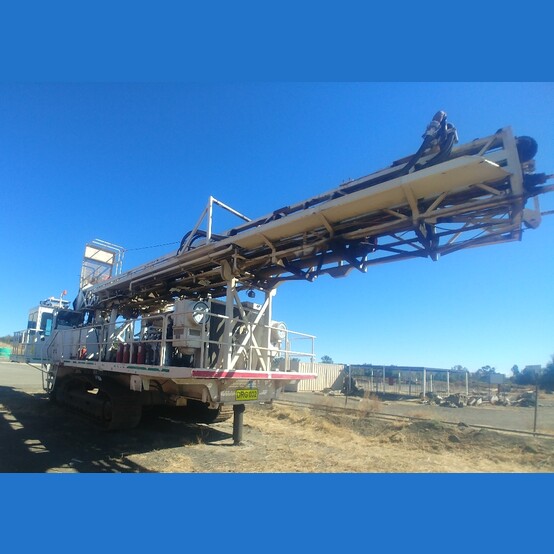

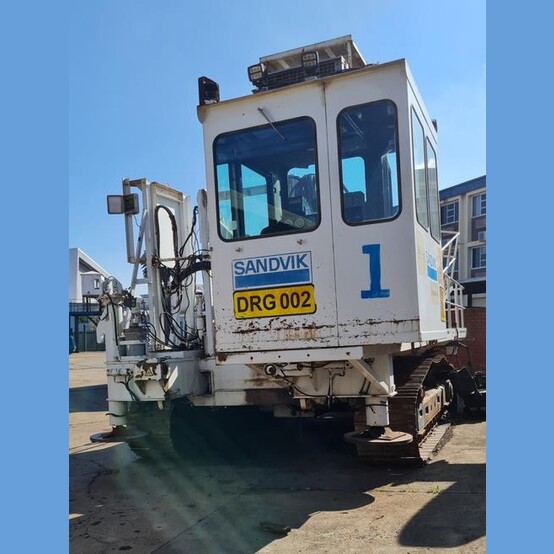

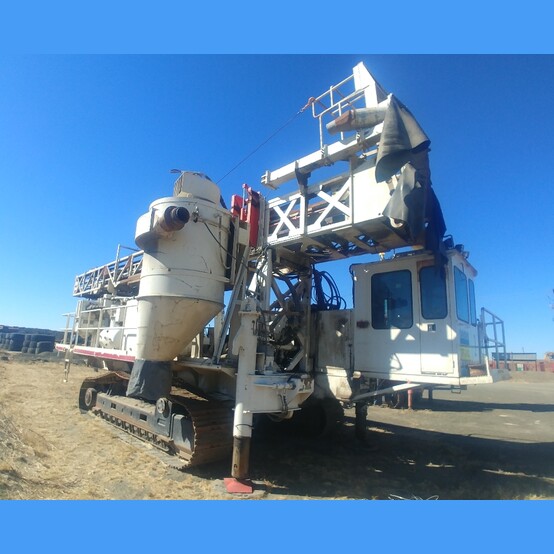

Sandvik D75KS Rotary Drill

• Make: Sandvik
• Model: D75KS
• Drilling Method: Rotary
• Track Mounted
• Hole Size: 229mm to 279mm (9in to 11in) Diameter Holes
• Multi-Pass Drill for up to 53m (173ft) High Benches
• Pulldown: 334 kN (75,000 lbf)
• Bit Load: up to 409 kN (92,000 lbf)
• Year: 2011
• Condition: Used - Good, General Working Condition
• Hours: 17,555 Hours
  • Major Components Changed-Out:
    • Track Repairs: 4,925.8 Hours (Changed out at 12,629.2 Hours)
    • Compressor: 3,878.2 Hours (Changed out at 13,676.8 Hours)
    • Engine Rebuild: 3,317.6 Hours: (Changed out at 14,237.4 Hours)
    • Rotary Head: 1,544.7 Hours (Changed out at 16,010.3 Hours)
    • Feed Cylinder: 1,351.5 Hours (Changed out at 16,203.5 Hours)
    • Rotation Motors: 711.1 Hours (Changed out at 16,843.9 Hours)
    • Carousel Hanger Bracket: 556.2 Hours (Changed out at 16,998.8 Hours)
• Tram Hour Reading: 1,346 hours

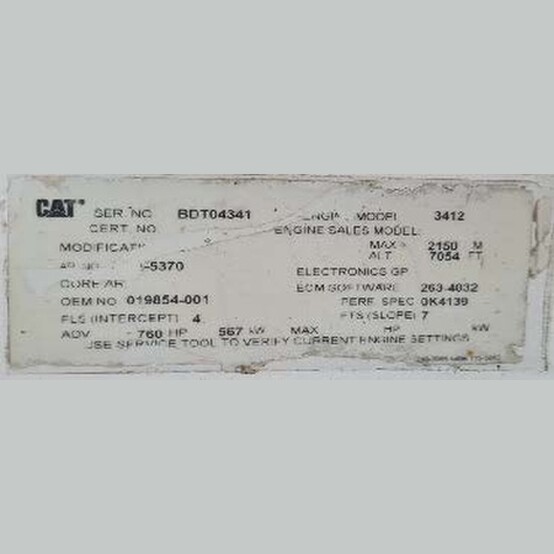

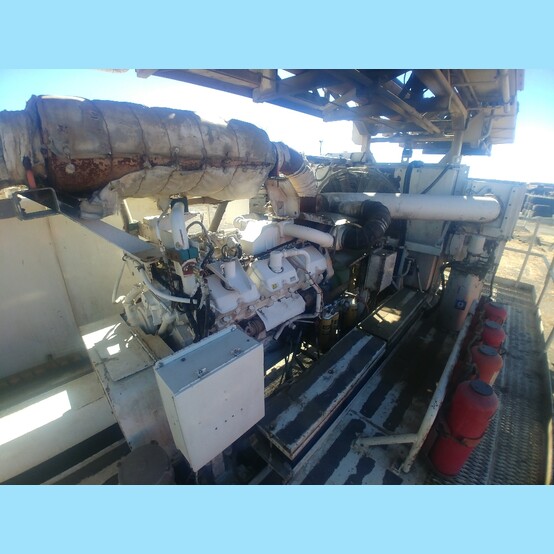

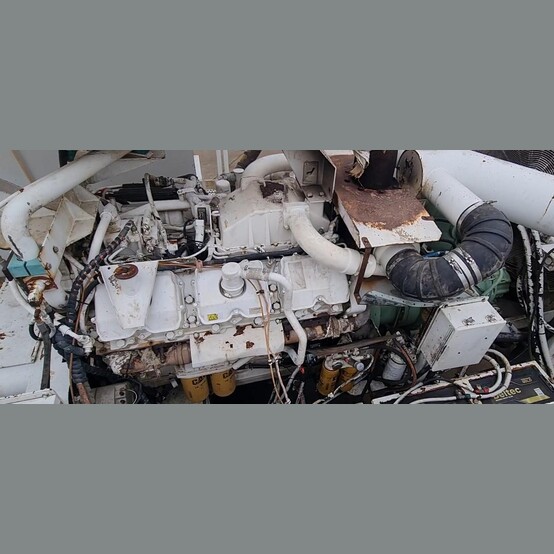

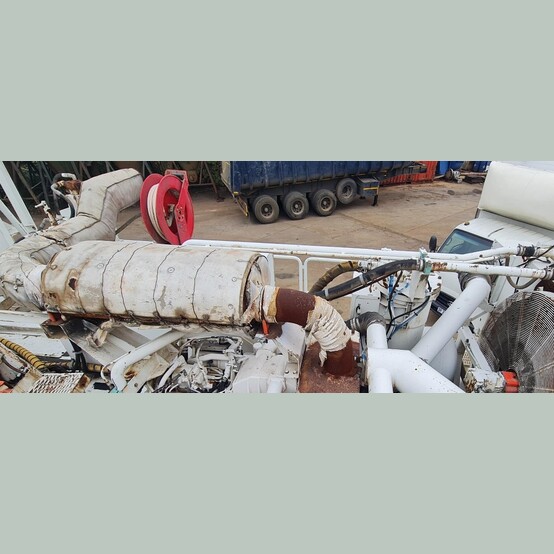

• Engine: CAT 3412 (760HP)
  • Rebuild Done by Barloworld

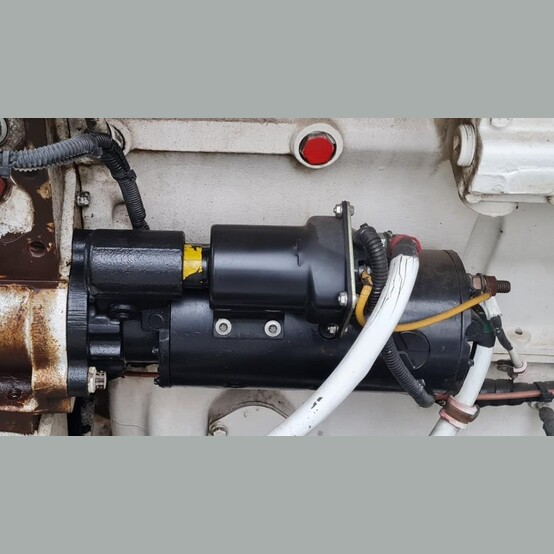

  • Fitted with (2) New Starters
  • Fitted with (4) New Batteries

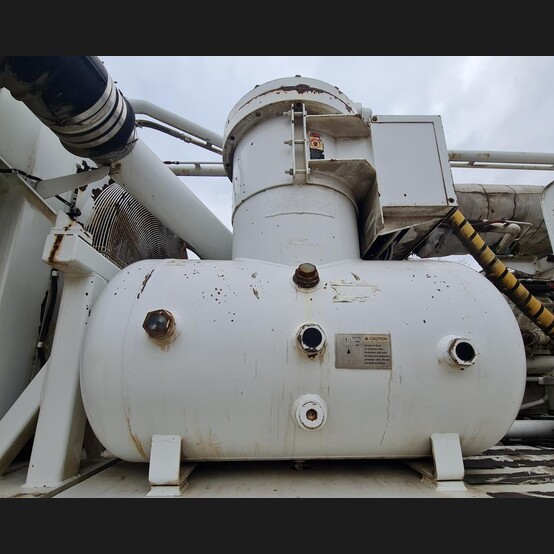

• Compressor: Sullair
  • Model: No. 25
  • Hours: 3,878 Hours
  • New Compressor and Air-End have been Fitted

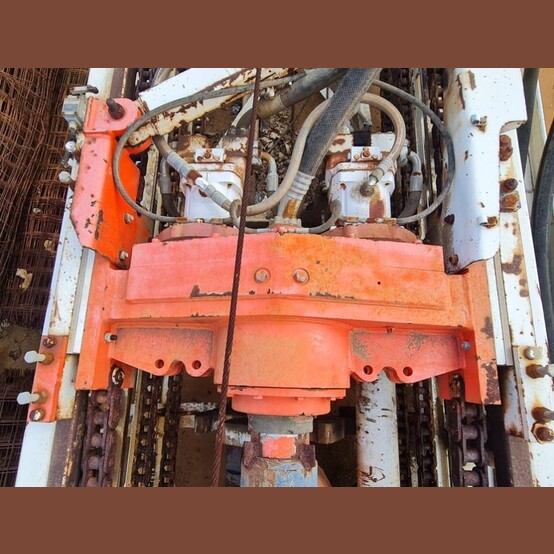

• Rotary Head:
  • Hours: 1,544.7
  • Very Good Condition

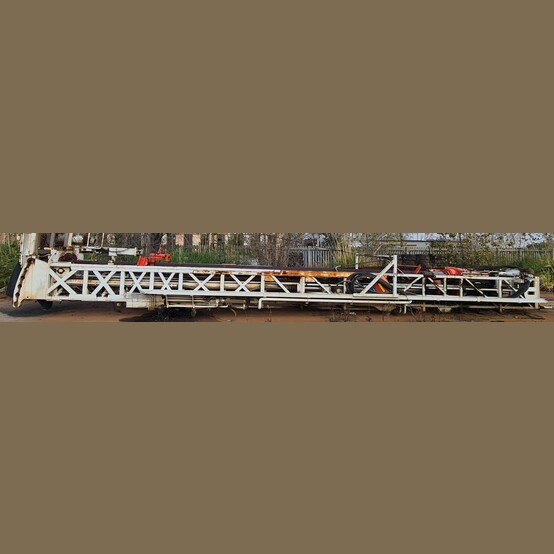

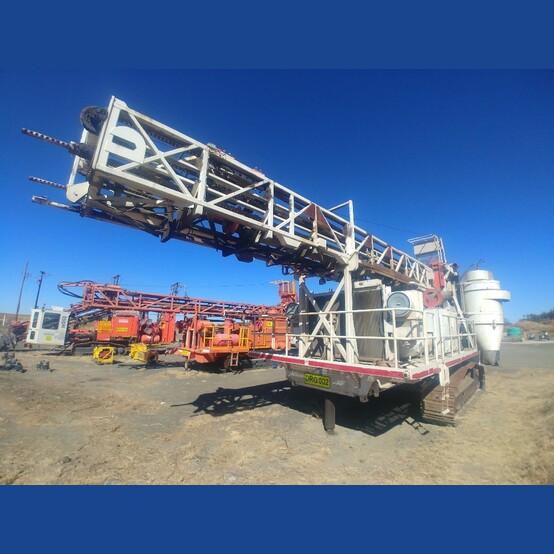

• Mast:
  • Mast Pins and Bushes are New
  • Mast Structure in Very Good Condition and Well Looked After
  • (2) New Rotation Motors
  • Mast Slides appear to be in a Very Good Condition, No Deep Marks or Scoring Visible
  • Mast Chains are in a Good Condition and Properly Tensioned
  • Rod Handlers are Working and in Good Condition
• Hydraulic Components:
  • Hydraulic Cylinders are in Good, Working Order
  • Mast Lift Cylinders were Recently Reconditioning and are Basically as New
  • No Evidence of any Scoring on Cylinder Shafts; All Cylinder Seals are Intact

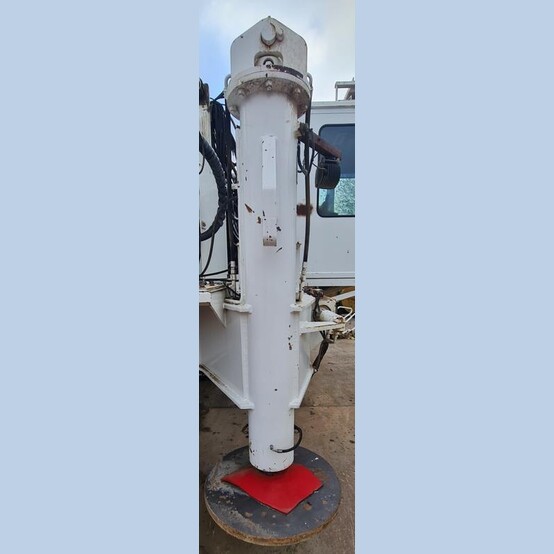

  • All (3) Outriggers are Functional

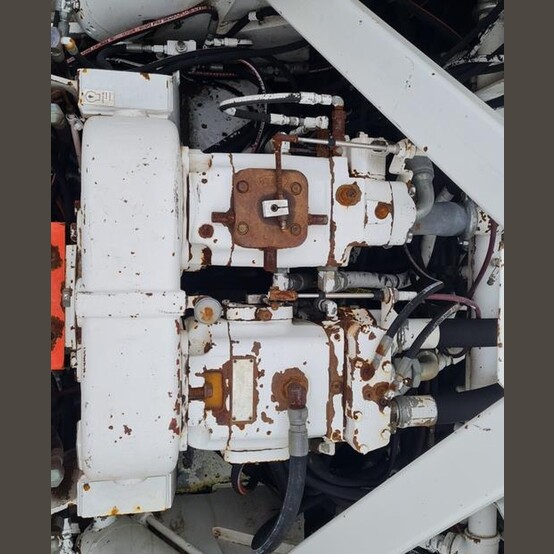

  • All Hydraulic Motors are in Good Working Order

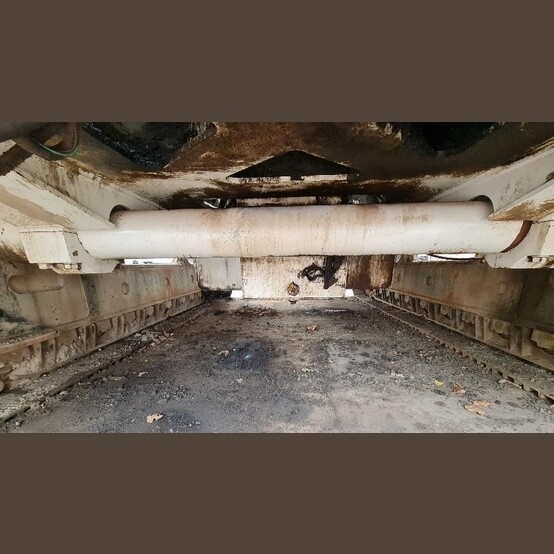

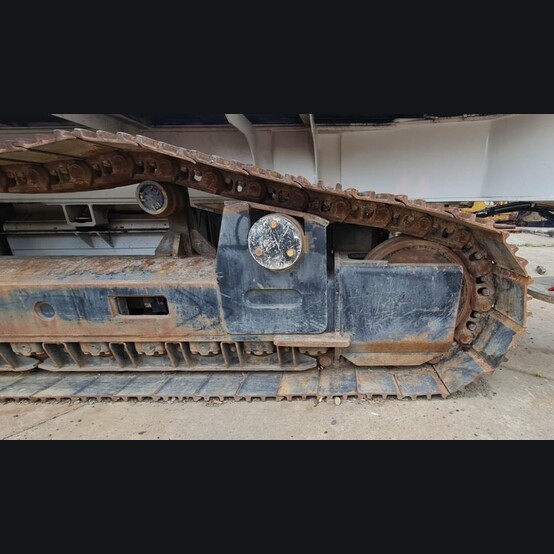

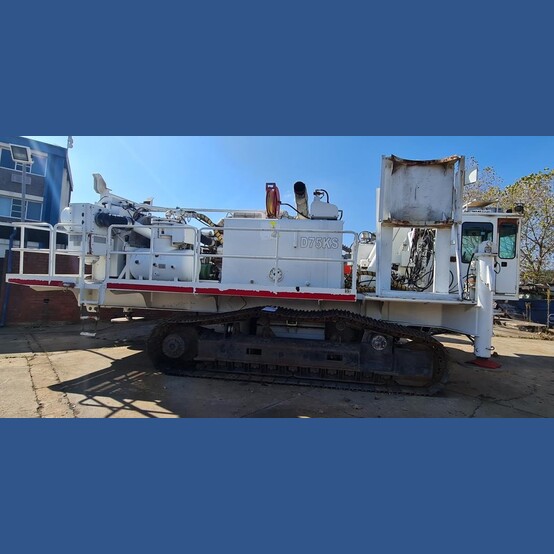

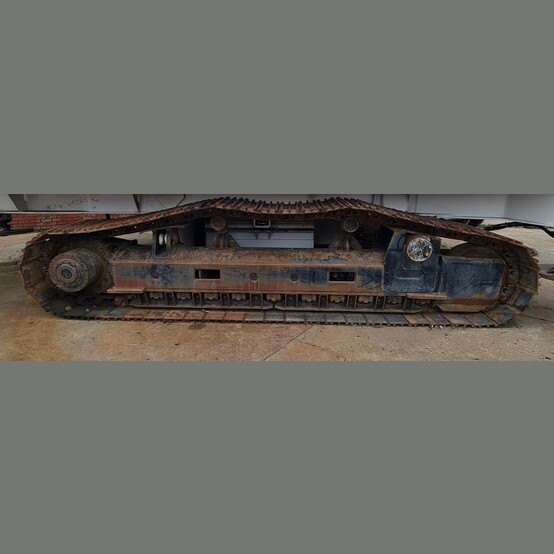

• Undercarriage:

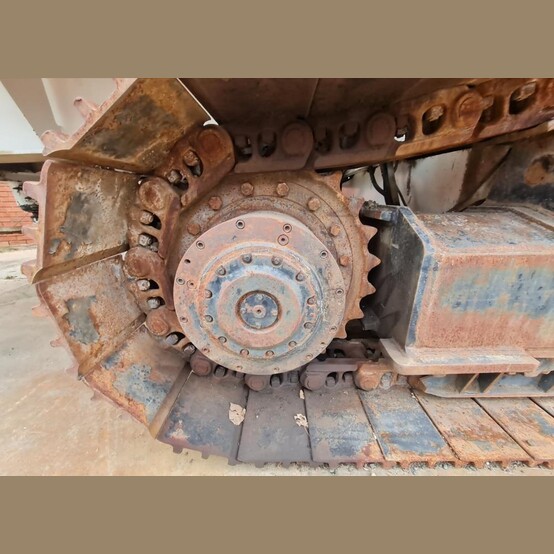

  • Undercarriage in Very Good Condition, with CAT Sprockets and Rollers from ITR
  • Shoes, Bushes, Idlers, and Rollers are in Very Good Condition
  • Track Repairs were Done by Barloworld
• Safety Devices/Features:
  • Rig is Equipped with Spotlights for Illumination
  • Fire Suppression System - needs Refill and Recertification
• Add-Ons:
  • On-Board Automated Lubrication System
  • Depth Counter

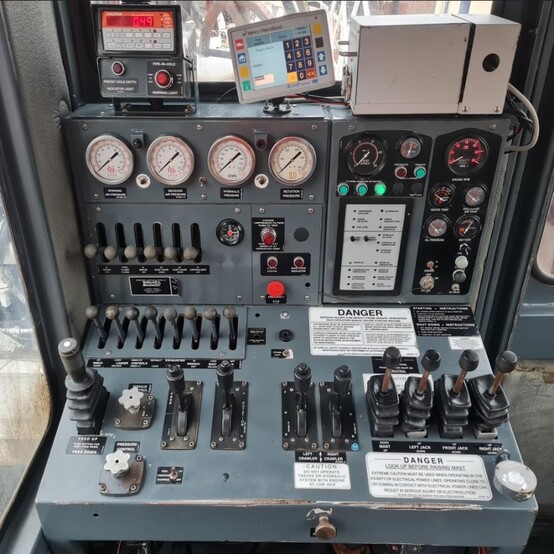

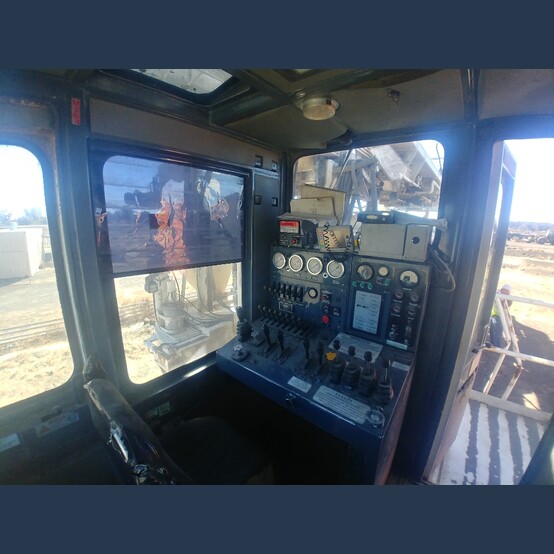

  • Emergency Stop Switches in Cab and Exterior

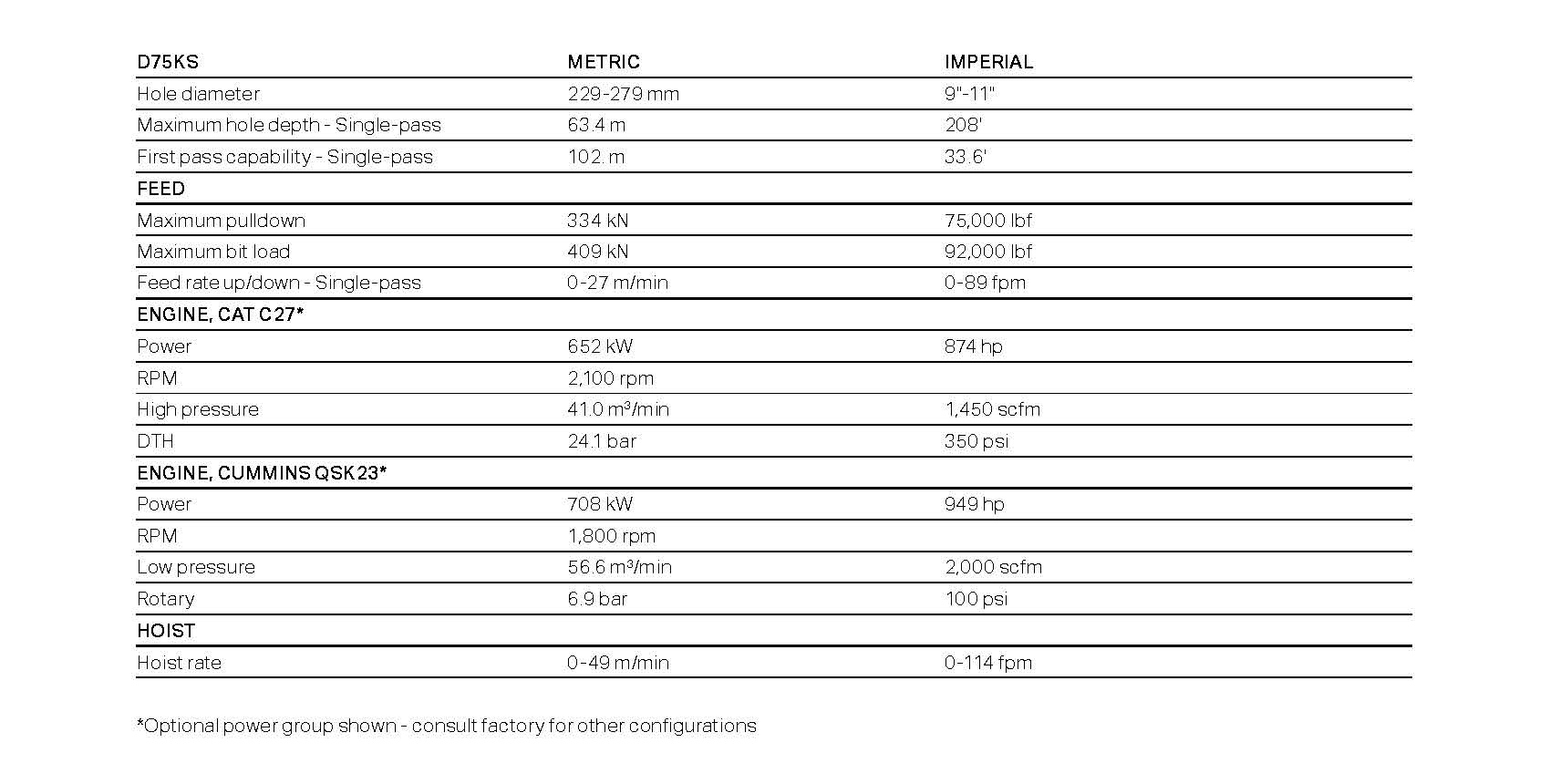

• View Spec Sheet Below


• Location: South Africa
