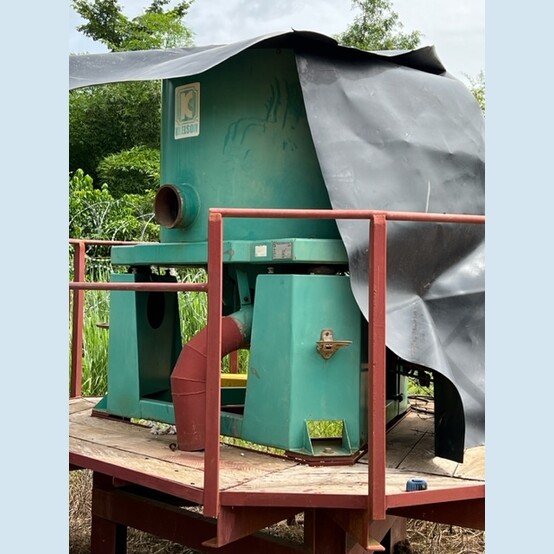

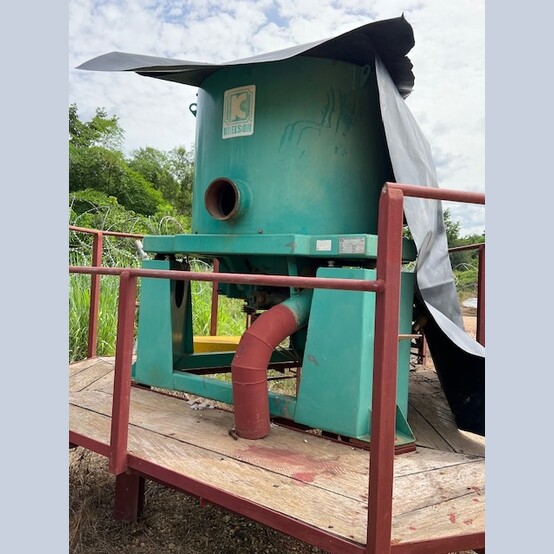

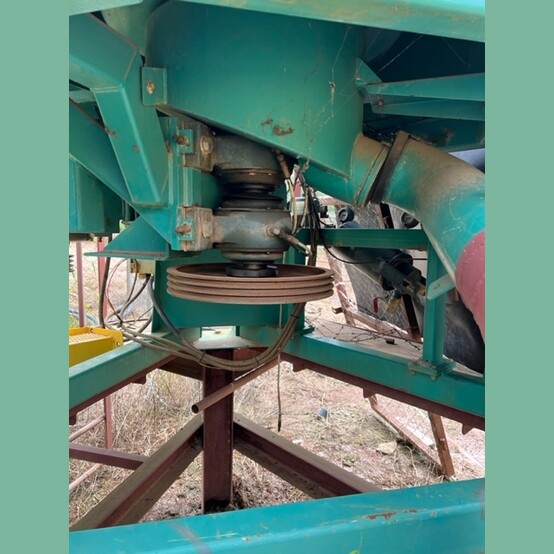

Knelson CD30 Concentrator

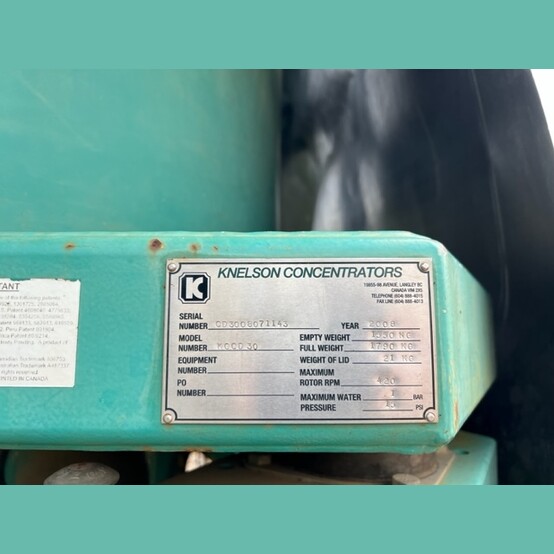

• Make: Knelson
• Model: CD30
• Type: Center Discharge
• Year: 2008
• Condition: Used, Reported in Good Condition With Very Little Usage
• Complete With:
  • G5 Bowl

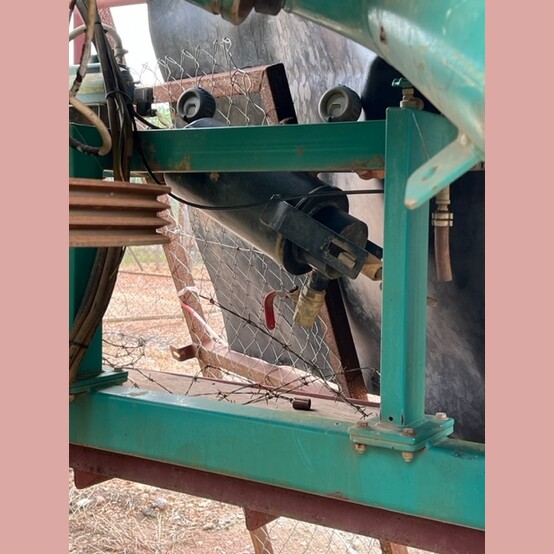

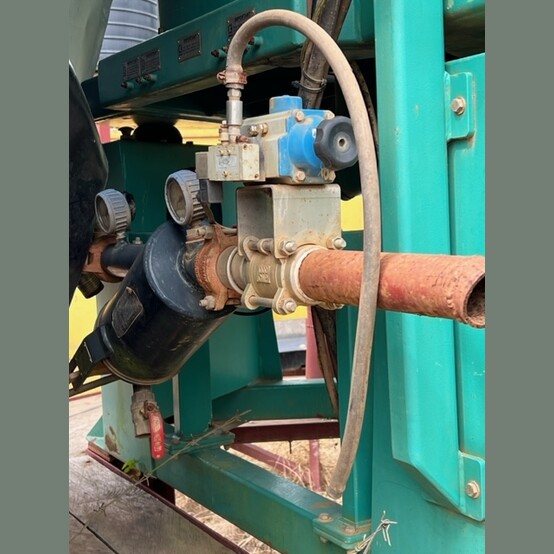

  • Manual Piping

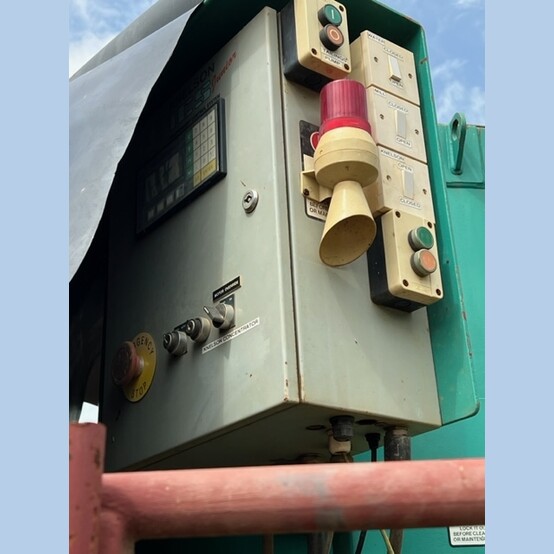

  • ICS Junior

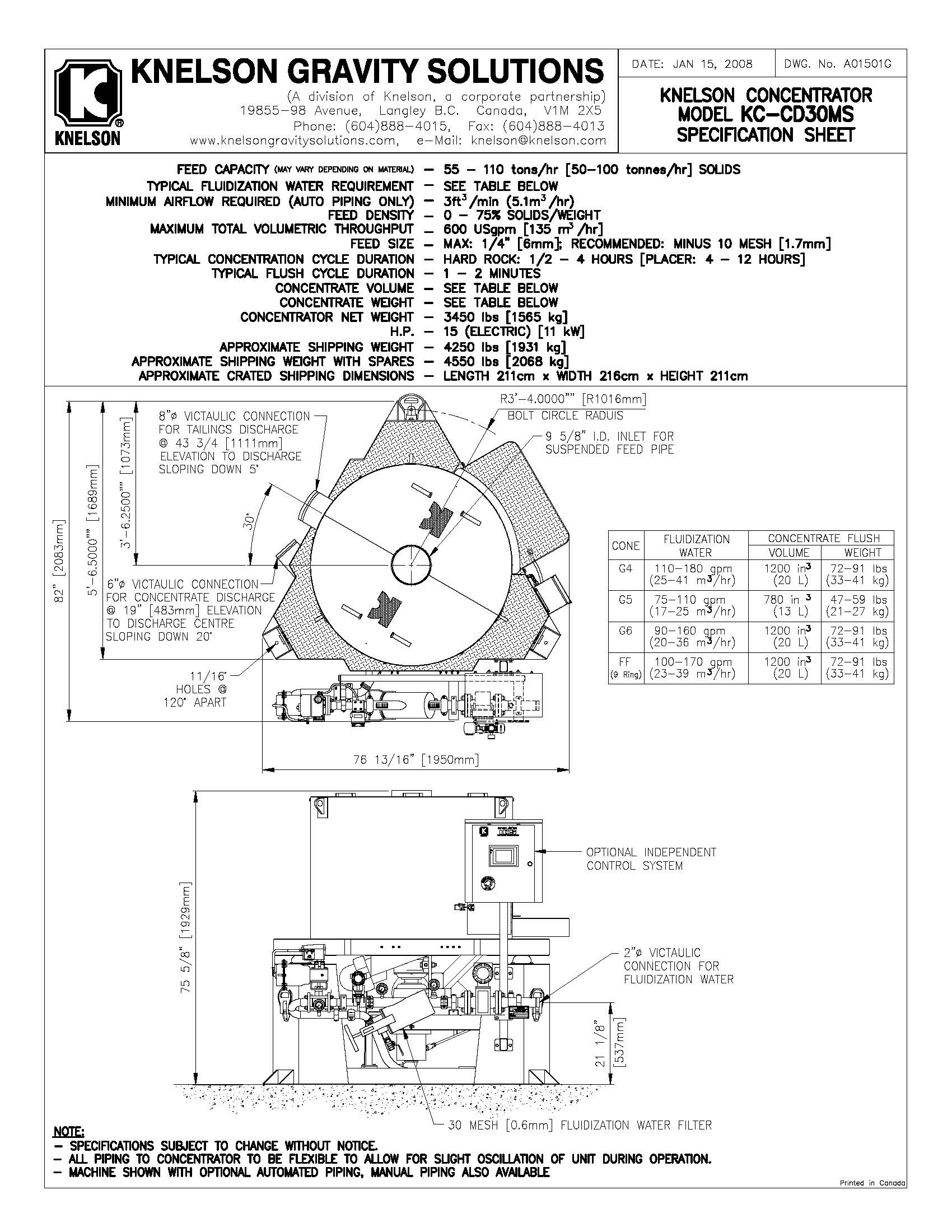

• General Model Specifications:
  • Feed Capacity: 55-110 TPH Solids
  • Typical Fluidization Water Required: 75-110 GPM (17-25m³/hr.)
  • Feed Density: 0-75% Solids by Weight
  • Max. Total Volumetric Throughput: 600 US GPM (135m³/hr.)
  • Feed Size:
    • Max: 0.25in (6mm)
    • Recommended: 10 Mesh (1.7mm)
  • Typical Concentration Cycle Duration:
    • Hard Rock: 0.5-4 Hours
    • Placer: 4-12 Hours
  • Typical Flush Cycle Duration: 1-2 Minutes
  • Concentrate Volume: 780in³ (13 Liters)
  • Concentrate Weight: 47-59 Lbs. (21-27kg)
  • Concentrator Net Weight: 3,450 Lbs. (1,565 kg)

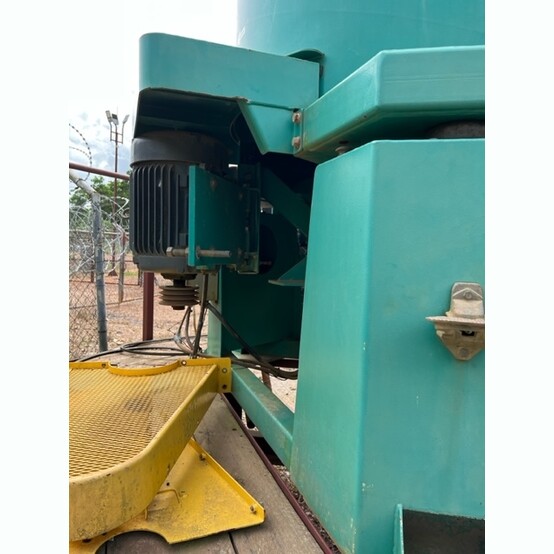

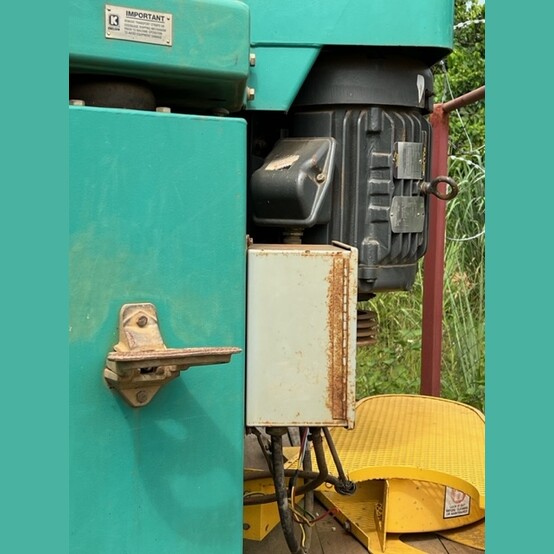

  • Power Output: Electric - 15HP (11kW)
  • Approx. Shipping Weight: 4,250 Lbs. (1,931kg)
  • Overall Dimensions:
    • Length: 82in
    • Width: 76.875in
    • Height: 75.625in


• Location: Africa
