iCON i350 Concentrator

• Make: iCON (Sepro Falcon)
• Model: i350 (SB350)
• Style: Semi-Batch Gravity Concentrator
• Year: 2019
• Condition: Excellent Used - Approx. 10 Hours of Use

General Model Specifications:

• Solids Capacity: 15 TPH (Max)
• Slurry Capacity: 30m³/hour, 132 US GPM (Max)
• Slurry Density: 5%-65% Solids
• Capacity of Concentrate per Batch: 3-6 Kgs
• Max Particle Size: 2.5 mm
• Concentrating Surface Area: 0.23 m²
• G Force Range: 100-150 G's (37-45 Hz)

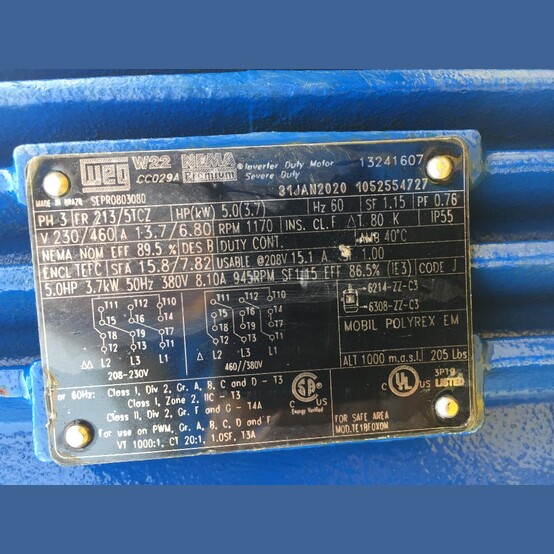

• Electric Motor Power: 5HP (3.7 kW)
• Electrical Specifications:
  • Voltage: 208-230/460 Volt
  • Phase: 3-Phase
  • Frequency: 50 or 60 Hz
• Process Water Consumption: 3-5 m³/hr. (13-22 US GPM)
• Process Water Pressure: 30-45 PSI
• Rinse Time: 60-90 Seconds

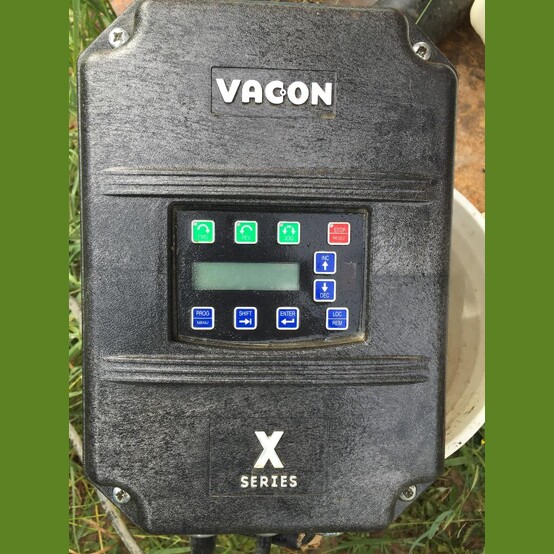

• VFD Motor Control: Yes


• Overall Dimensions:
  • Length: 38.25in
  • Width: 35in
  • Height: 56.3125in
  • Weight: 415 Kgs


• Location: North West Canada
