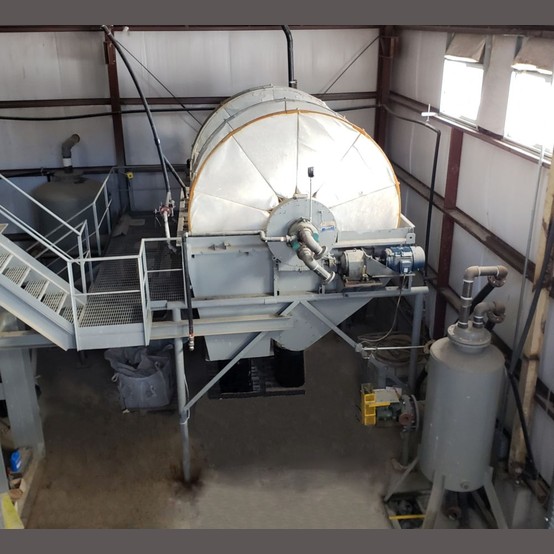

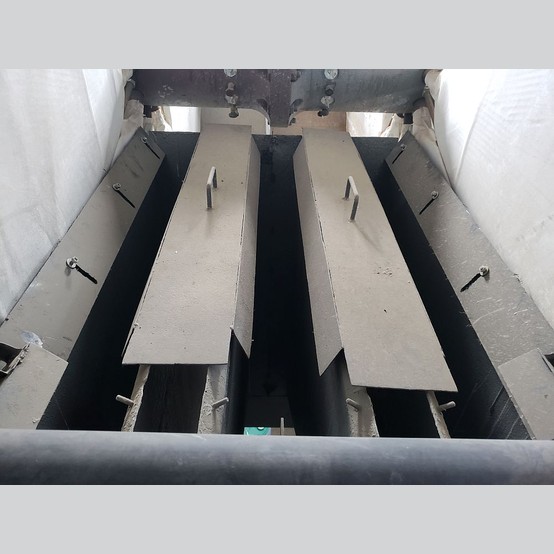

- 1 – Eimco 10.6 x 10 Disc Filter Package.
- Driven by a close coupled 5hp gearhead motor.
- Currently with 4 - disc sections installed (approx. 665 sq./ft.)
- Expandable to 10 sections (approx. 1670 sq./ft.).
- (Would be supplied with complete set of disc segments).
- Filter mounted on Stand and Work Platform.
Complete with:
- SIHI LPH-70123 Vacuum pump, with 60hp belt drive motor.
- NOTE: Would come with Nash 6003 Vacuum pump for original full 10-disc arrangement.
- 40” dia. X 8’ high Vacuum condensate tank with 5 hp close coupled condensate pump.
- Mounted on 4’ High steel pipe legs.
- 36” Dia. X 8’ high Filtrate tank complete with built in 3” centrifugal filtrate pump.
- Mounted on 40” High channel iron legs.
- This Eimco disc filter can also be purchased as part of a "mill package"
