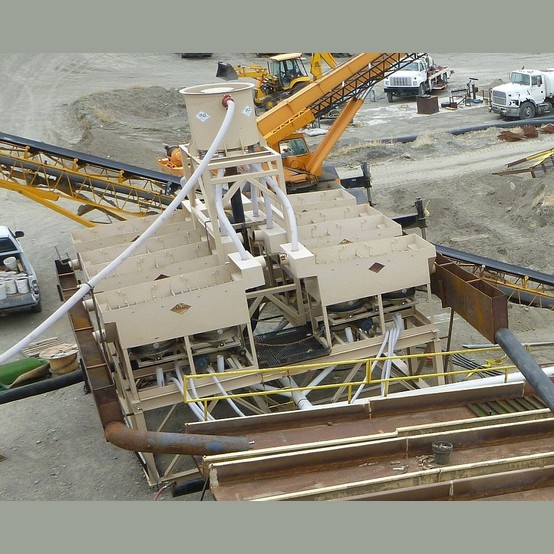

IRD 42 inch Duplex Mineral Jig System ID: 373363


  • 8 x IRD 42 x 42 Duplex Mineral Jigs
  • Mounted on Operating Skid Complete with:
    • Motors
    • Feed Distributor
    • Tailings Discharge Troughs
    • Concentrate Discharge Piping
  • Package in excellent overall condition.
  • Specs per Jig as a Rougher:
    • Max Capacity in Cubic Yards Per Hour: 30
    • Average Hutch Water Requirement in Gal/Min/Cell: 80
    • Average RPM Eccentric Shaft: 130
    • Power Installed, HP: 3
    • Approximate Power Consumed in Operation, HP: 1.8
  • Specs Per Jig as a Cleaner:
    • Max Capacity in Cubic Yards Per Hour: 12
    • Average Hutch Water Requirement in Gal/Min/Cell: 50-70
    • Average Length of Stoke in Inches: .5
    • Average RPM Eccentric Shaft: 150
    • Power Installed, HP: 3
    • Approximate Power Consumed in Operation, HP: 1.8
  • Location: Western USA

View more Mineral Jigs
