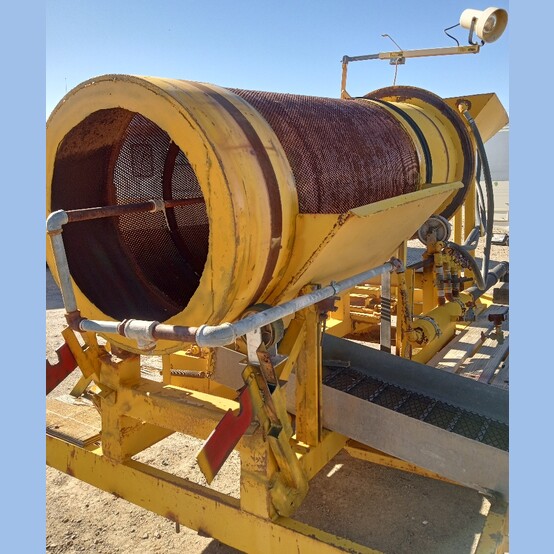

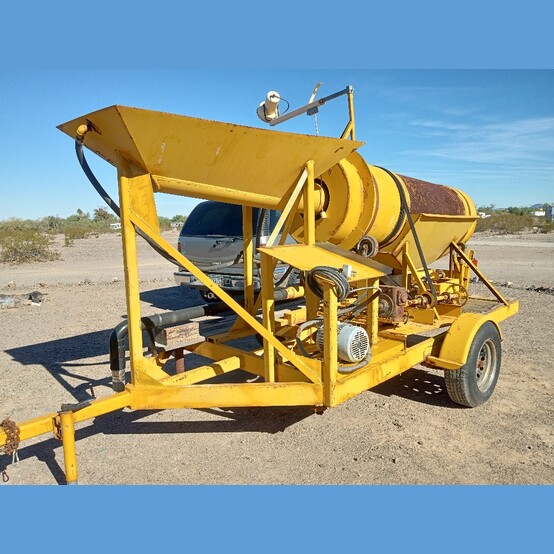

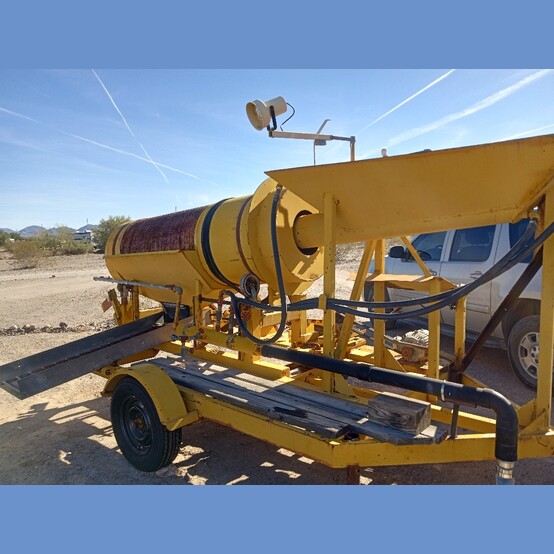

30in Dia. x 8ft Long Scrubber Trommel Wash Plant

• Trommel:
  • Diameter: 30in
  • Length: 8ft
  • Scrubbing Section: 3ft Long
  • Screening Section: 4ft Long
  • (2) 3in Tall Baffle Rings

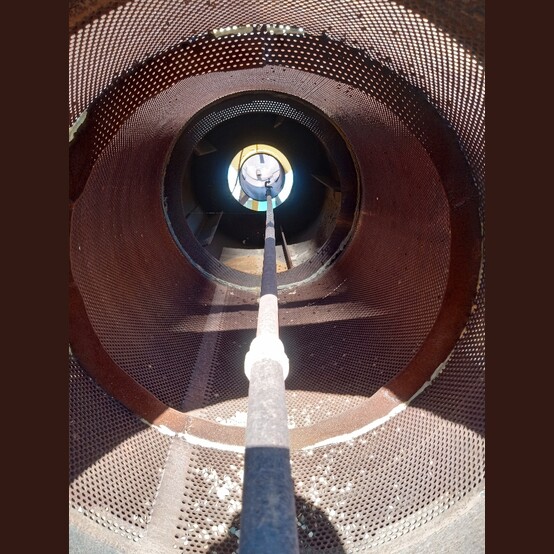

  • Spray Bar Inside Drum

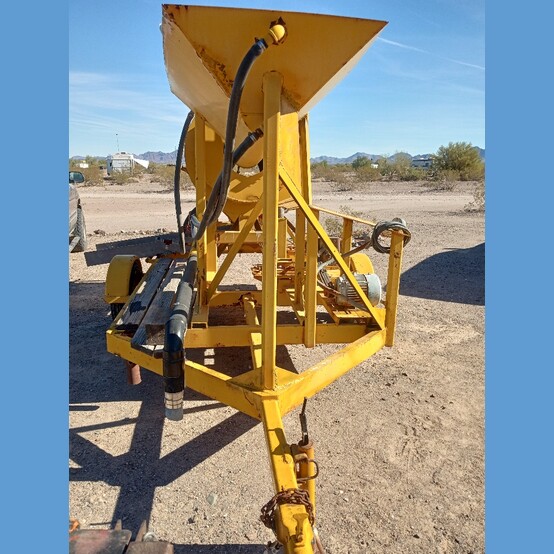

• Hopper:
  • Washing Hopper
  • Size: 3ft Wide x 6ft Long
  • Water Connection: 4in

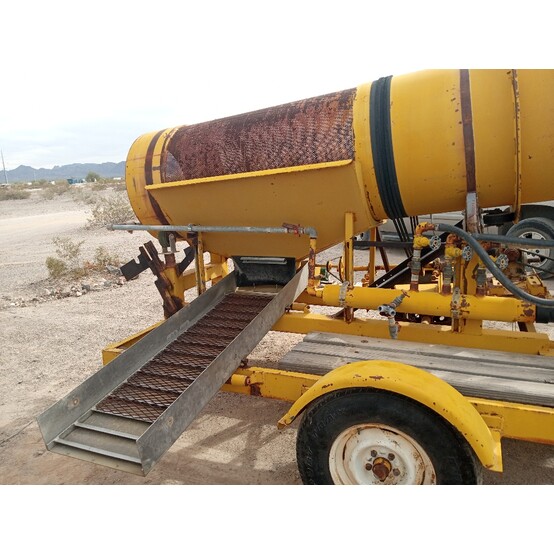

• Sluice:
  • Size: 18in Wide x 6ft Long
  • With Riffles and Expanded Metal

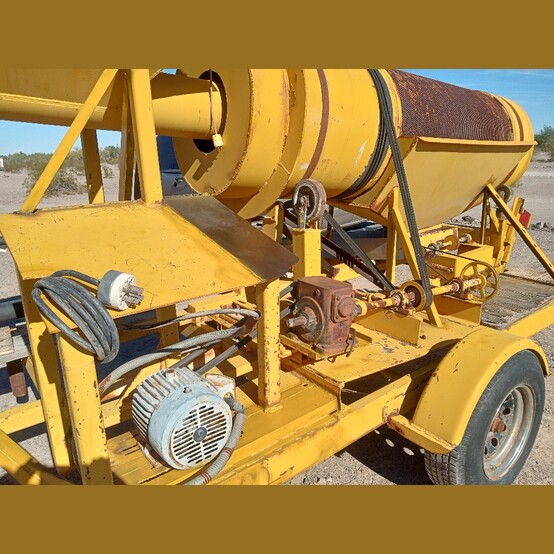

• Drive: Reliance Electric Motor
  • Power Output: 3HP
  • Speed: 1730 RPM
  • Voltage: 230/460 Volt

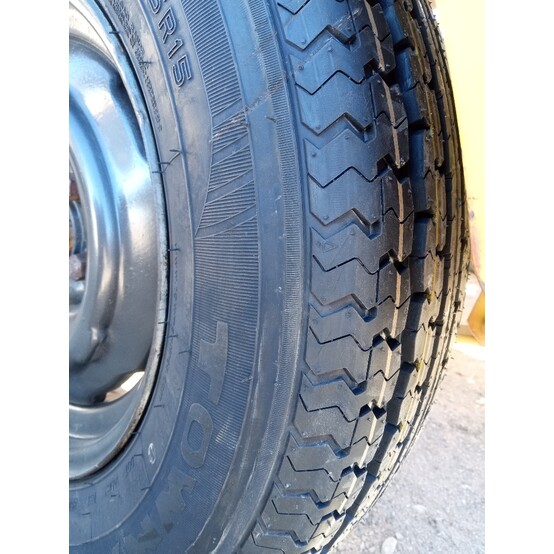

• Mounted on Single Axle Trailer
  • Size: 6ft Wide x 18ft Long
  • Hitch: 2in Ball Hitch


• Overall Dimensions:
  • Length: 18ft
  • Width: 6ft
  • Height: 8ft 4in
  • Weight: 6,000 Lbs. Approx.


• Location: Southwest USA
