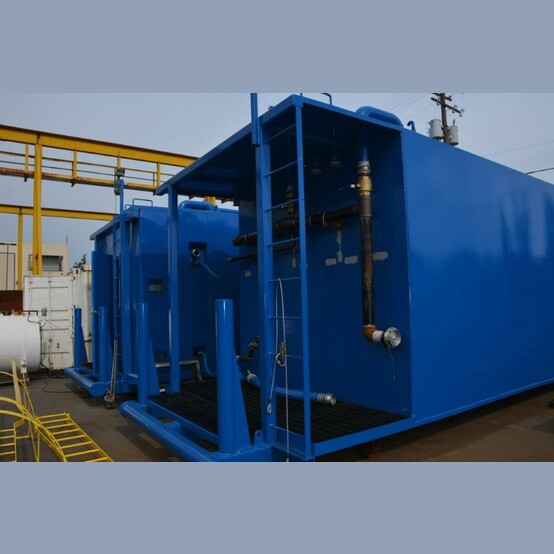

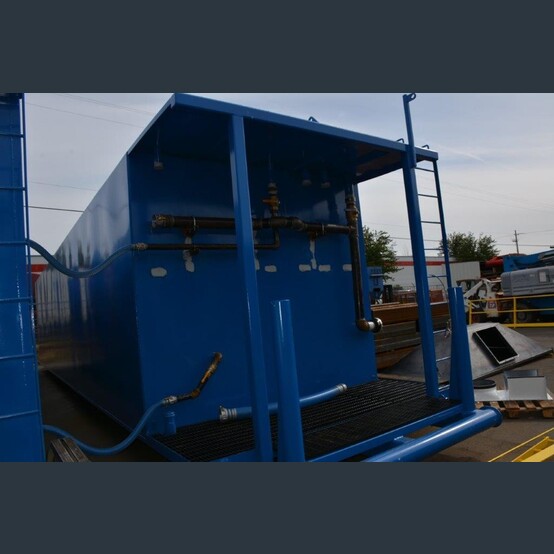

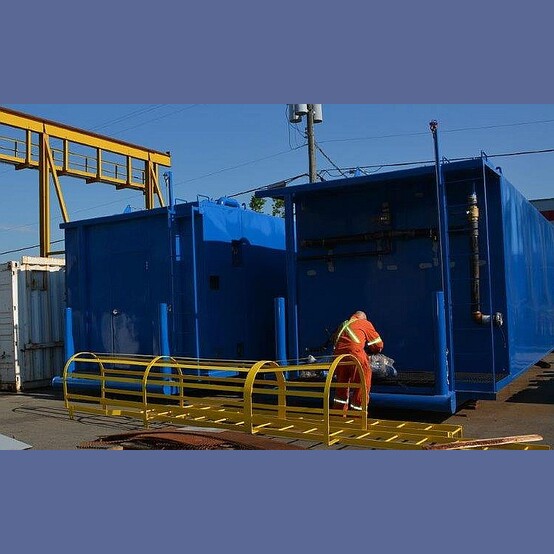

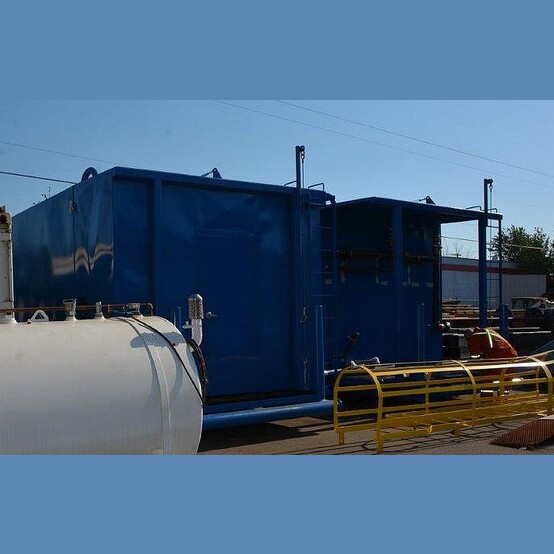

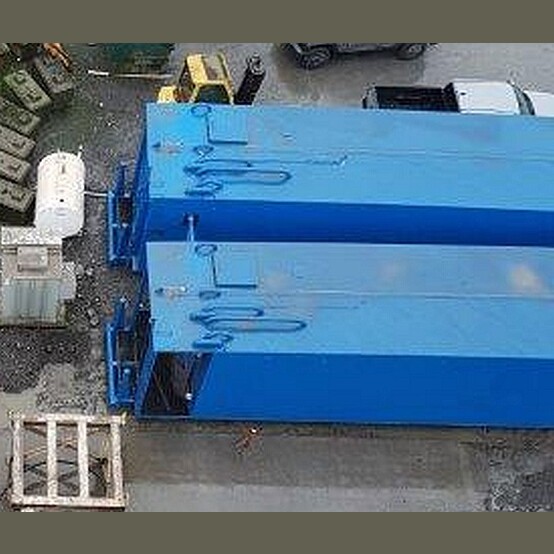

100m³ Double-Wall Portable Water Tanks

Quantity: 3 Units

• Inner Tank Capacity: 100m³ (26,417.2 US Gallons)
  • Dual Compartments: 40m³/60m³
• Total Containment Volume: 139m³ (36,720 US Gallons)
• Overflow: 40m³ (10566.9 US Gallons) Overflow Capacity
• Material: Steel
• Condition: New/Unused
• Comes With:
  • Diesel Powered Water Heating System
  • 500 Gallon Diesel Fuel Tank
  • Pump to Circulate the Water


• Sealed Double Wall Construction
• No Through-The-Wall Penetration
• All Fill and Suction Lines Pass Through Roof
• 3” Fill and Recirculation Lines
• 4” Suction Lines Reduced to 3” Connection Point
• All Lines Come with Shutoff Valves and Cam Lock Fittings
• Sight Glass for Containment Tank Inspection
• Spill Containment with Bar Grate Under Roof
• 4” Suction for Containment Tank Drain in Case of Overflow
• Roof Access Ladder with Fall Restraint
• Full Length Fall Restraint Cable on Roof
• 24” Hinged Manway on Roof


• Tank Monitoring System - Optional Add-on, Call For Pricing
  • Siemens Controls and Interface
  • Siemens Radar Level Sensor
  • Plug-and-Play (Up to 6 Tanks)
  • Hot Swappable Analogue Inputs
  • Visual Tank Level Status on a 7” Colour Display
  • Audible (Horn) and Visual (Strobe) High and Low Alarm Indication


• Dimensions:

  • Length: 50' (15.24m)
  • Width: 10' 6" (3.2m)
  • Height: 11' 9" (3.58m)
  • Weight: 44,000 Lbs. (19,958 kg)


• Applications:
  • Mobile Fire Water Storage System for Remote Locations
  • Invert Storage and Management
  • Volatile Fluids
  • Manage Drilling Fluids
  • Fluid Storage and Staging During Plant Shutdowns
  • Fluid and Spill Containment
  • Base Oil
  • Environment Spill Containment
  • Containment in Emergency Response Situations


• Location: Canada
