Denver 5' Dia. x 8' Skid Mounted Ball Mill ID: 1118025

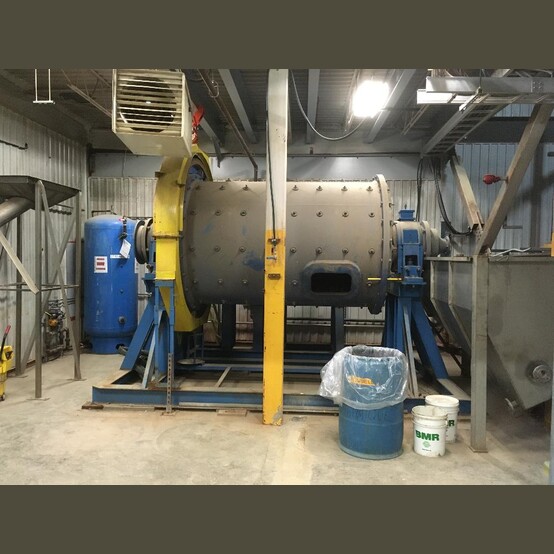

Denver 5' Diameter x 8' Long Ball Mill

Condition: Excellent

  • Ball Mill
    • Make: Denver
    • Skid Mounted
    • Ball Charge: 19,300 Lbs
    • Rubber Lined - 70% Life Remaining
    • Self-aligning Babbitt Bearings - Replaced in 2012
    • Straight Cut Bull and Pinion Gear
    • Gear Guarding
    • Spout Feed
    • Overflow Discharge

  • Motor
    • Baldor "Super-E" Electric Motor
    • 75 HP
    • 3 Phase
    • 60Hz
    • 405T Frame
    • 1322 Lbs

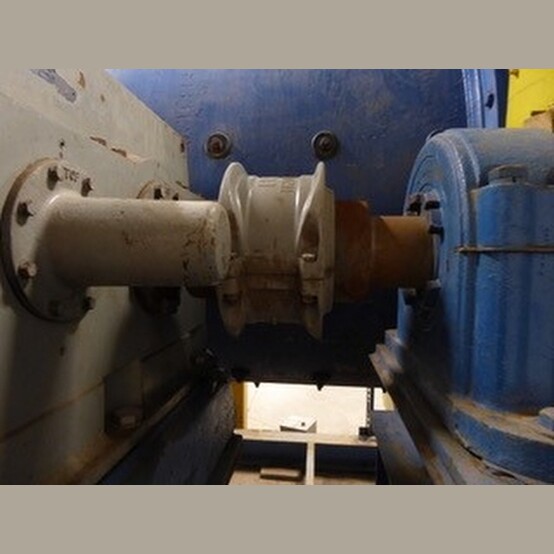

  • Reducer
    • Falk Reducer
    • Model: 2080YI-20
    • Input: 1200 RPM
    • Output: 192.6 RPM
    • Ratio: 6.231 to 1
    • 1185 RPM

  • Shipping Dimensions:
  • Shipping Weight: 36,000 Lbs Approx.

  • Location: Eastern Canada

Description: Excellent condition Denver Ball Mill. Steel Ball Mills are one of the most precise, reliable and cost effective methods of fine grinding solids in either a wet or dry state. The Steel cylinder is rotated at a predetermined speed that sets the balls into a tumbling and cascading motion which impact the solids in a very predictable and controllable fashion.
