Voyager 2000 Diamond Core Drill Package ID: 418391

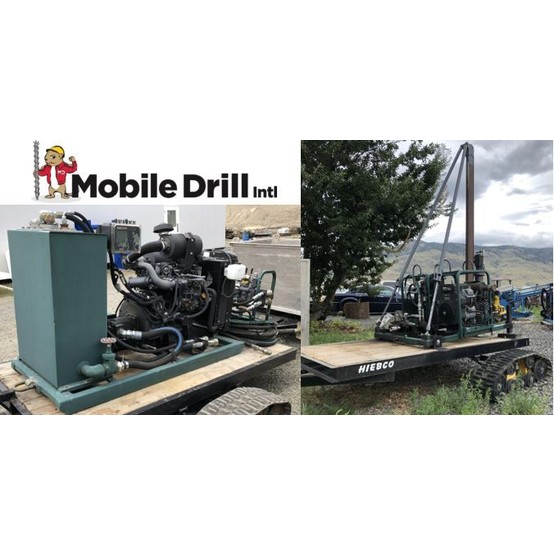

Complete Diamond Drilling Exploration Package includes:

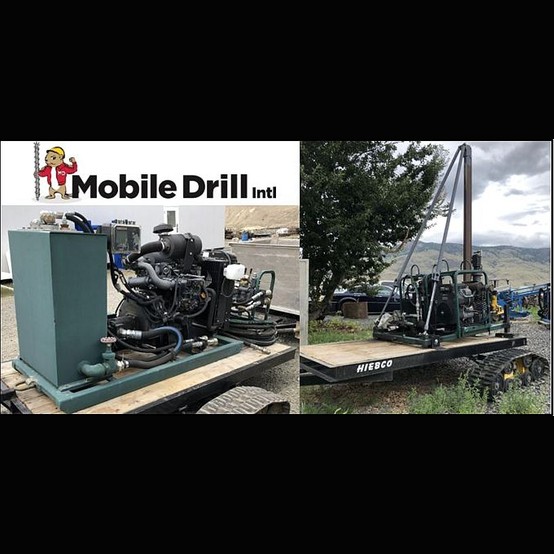

Voyager 2000 Diamond Core Drill with Diesel / Hydraulic Power Pack.
(1) - Kubota Diesel 4x4 RTV, equipped with Rubber Tracks and Tires.
NOTE: 2nd Kubota seen in video and photos no longer available.
Twin Rubber Track Trailer System for transporting Diamond Drill & Diesel / Hydraulic Pack.
Single Axle Rubber Tired Trailer / Rod Sloop
200 ft. API Drill String with NW Casing, Core Subs, Core Bits, and Reaming Shells.

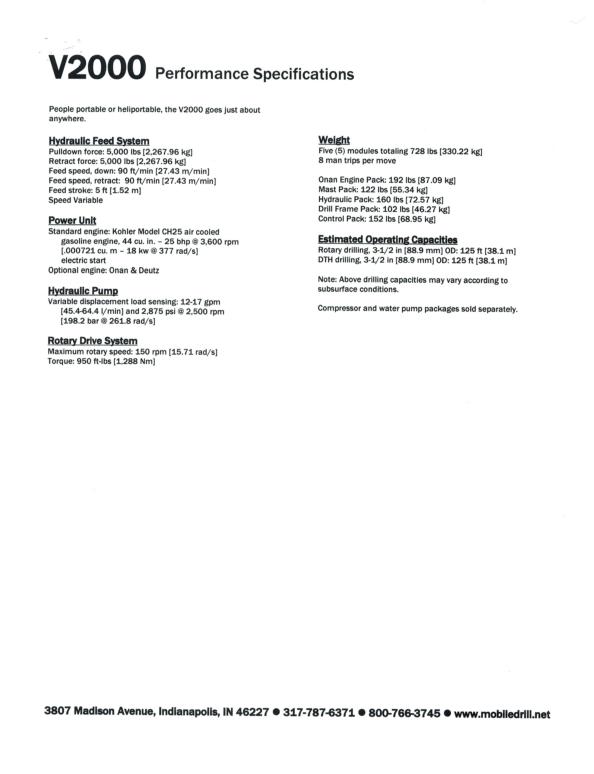

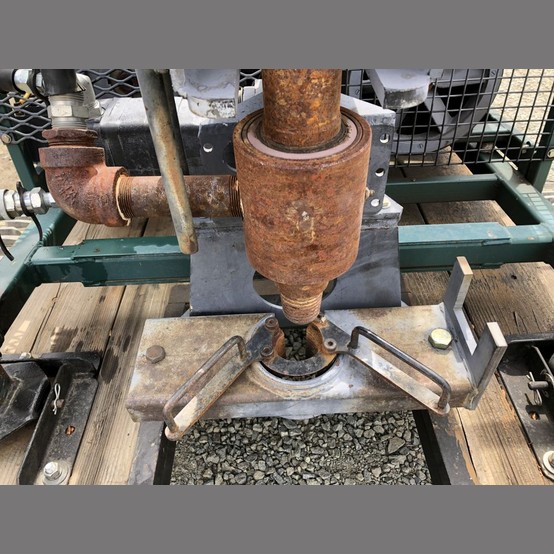

Diamond Core Drill Details:

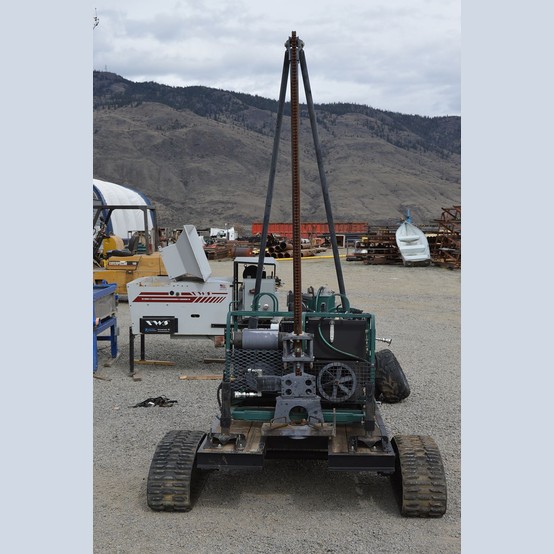

  • Model: Voyager 2000

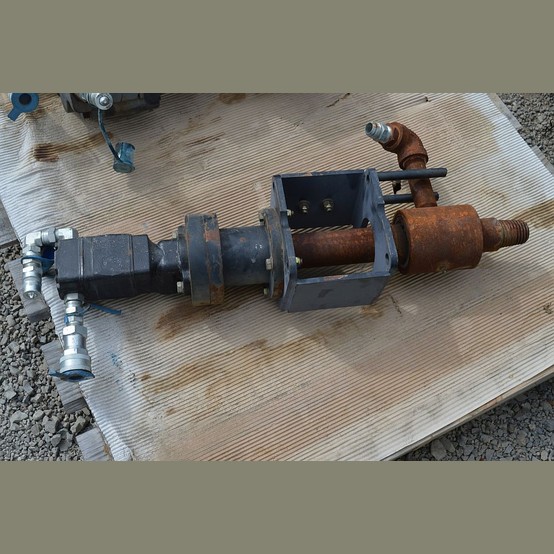

  • Commercial Interech Drill Head
    • Model: M365A842VCEB2ø-11

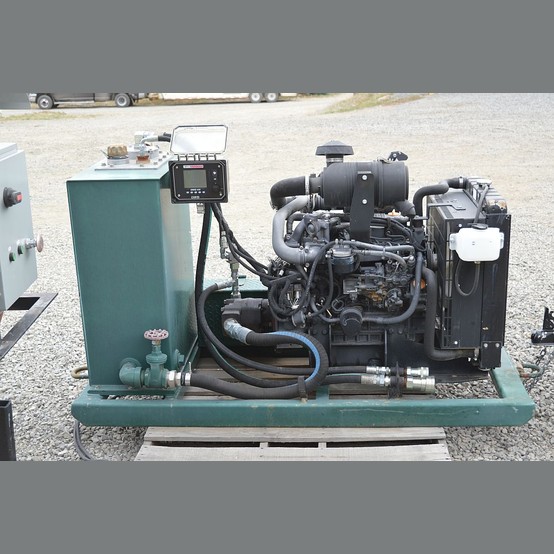

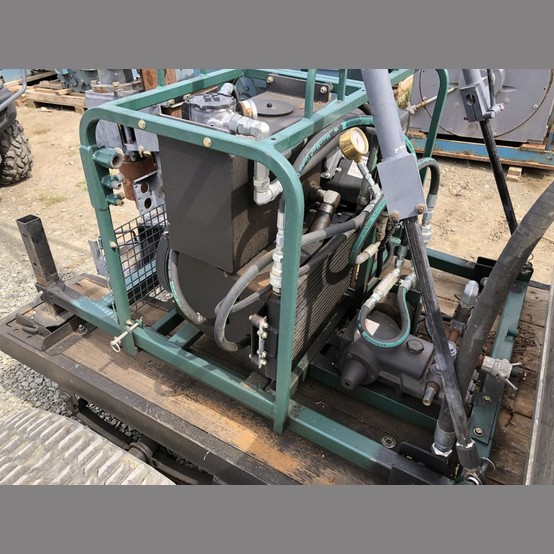

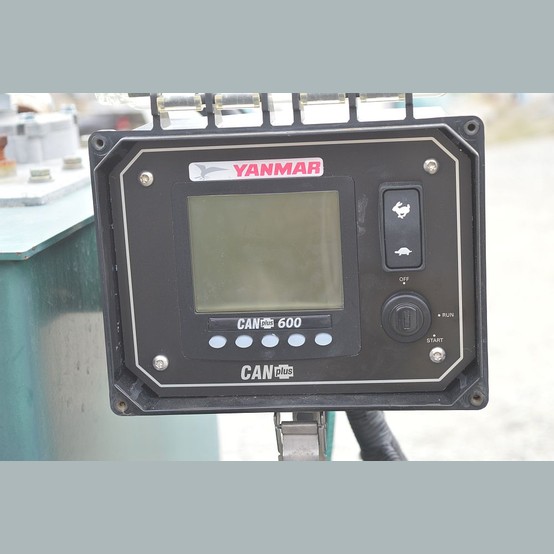

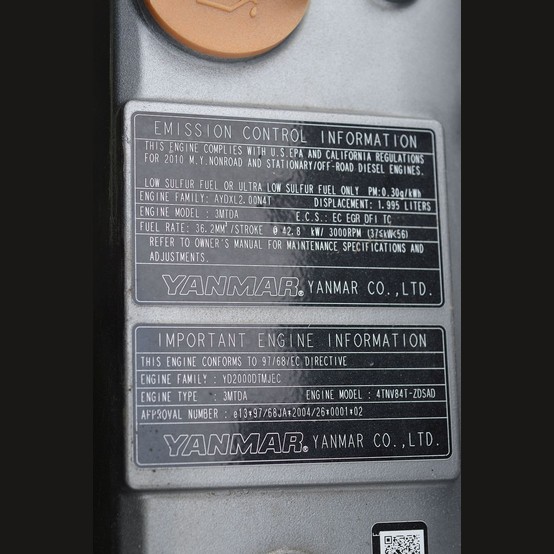

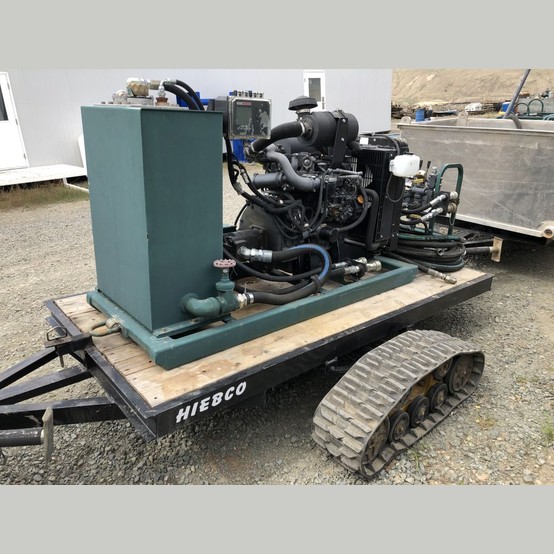

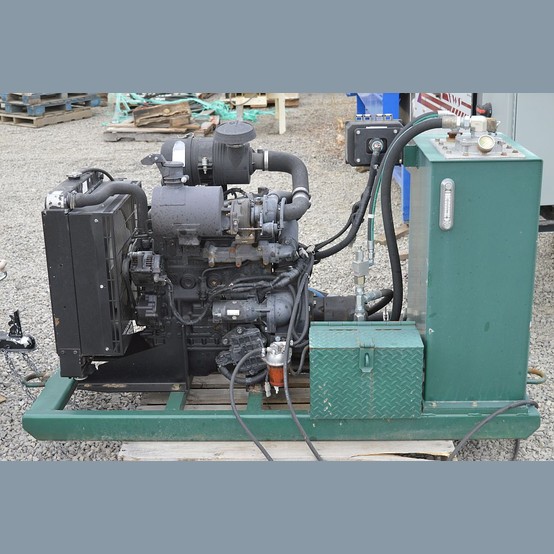

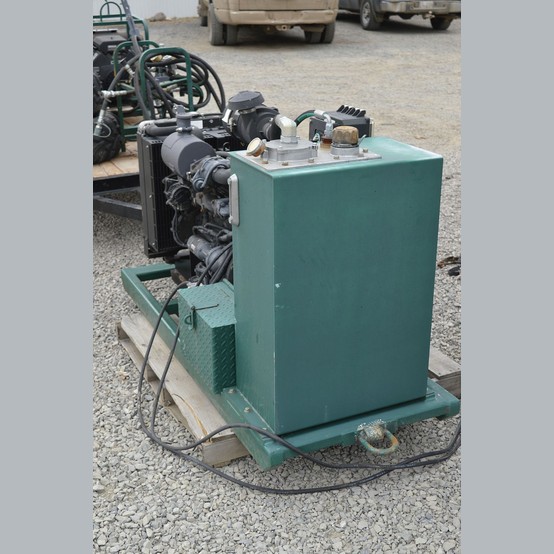

  • Yanmar Turbo Diesel / Hydraulic Power Pack.

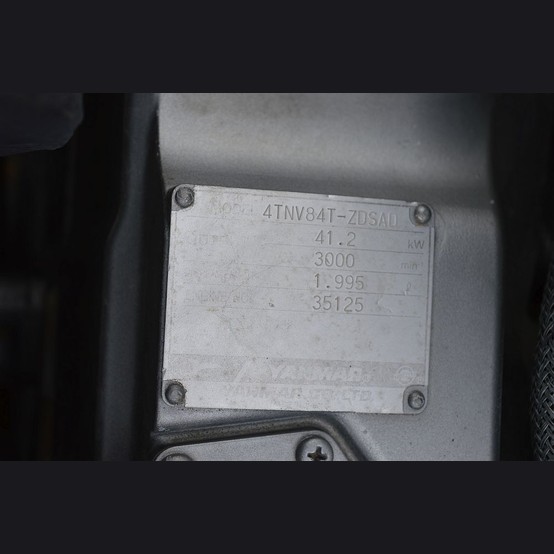

    • Model: 4TNV84T-ZDSAD
    • Type: 4 Cylinder, Liquid Cooled Diesel Engine
    • Displacement: 1.995 L
    • Combustion System: Direct Injection
    • 4 Cylinders
    • 55.2 HP, 3000 RPM
    • Hydraulic Tank Mounted on Skid with Engine
      • Hydraulic Tank Dimensions: 13in. Wide x 23in. Long x 33in. High
    • Pulldown Force: 5,000 lbs
    • Retract Force: 5,000 lbs
    • Feed Stroke: 5 ft.
    • Speed Variable

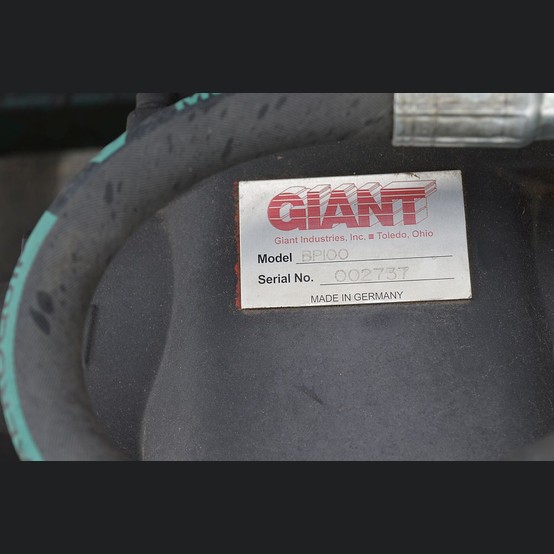

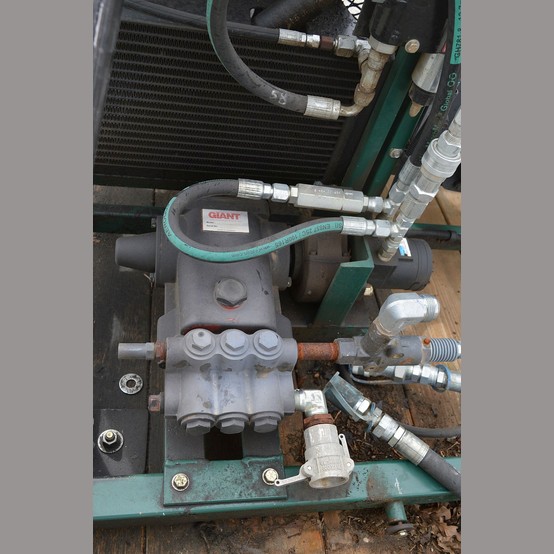

  • Giant Triplex Pump
    • Model: BP100

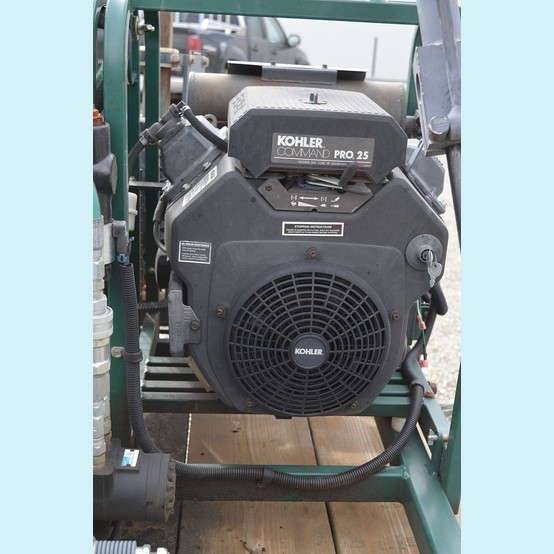

    • Kohler 2 Cyl. Gas Drive
    • Variable Displacement Load Sensing
      • 17 GPM / 2,875 PSI @ 2500 RPM

Kubota RTV Details

  • Kubota RTV900
  • Year: 2011
  • Hours 198.9
  • 4x4
  • 3 Cylinder Diesel Engine
    • RMX Turbo Kit for High Elevation
    • 21.6 HP @ 3200 RPM
  • Real Tree AP Camouflage
  • Soucy ST 110 Tracks
    • Dimensions: 14in. W x 44.7in. L x 26.3in. H Front
    • Dimensions: 14in. W x 44.2in. L x 26.3in. H Rear
  • Includes: Spare Set of Baja Cross XD Tires
  • Hi/Low Range Transmission
    • Variable Hydro
    • Neutral/Reverse
  • 4WD System
    • Front: Limited Slip Diff
    • Rear: Foot Operated Diff Lock
  • Steering: Hydro Static Power
  • Brakes: Front/Rear Wet Disc
  • Towing Capacity: 1,300lbs/590 kgs
  • Cargo Bed: 57.7in. Wide x 40.5in. Long x 11.2in. Deep
  • Fuel Capacity: 30 Liters
  • Hydraulic Cargo Bed Lift
  • Winch
  • Canopy on Cab with Vinyl Doors
  • Heated
  • 12 Volt ACC Outlet
  • Hiebco RTC Trailer
    • Overall Dimensions: 132in. Long from Tongue to Rear x 72in. Wide x 31in. High
    • Trailer Box Dimensions: 100.5in. Long x 52in. Wide x 12in. Deep
    • Drop Down Tail Gate
    • Extra Hitch Point on Back
    • Tires: Tex Star ST2054-75-D15
      • Spare in Trailer

Twin Rubber Track Trailer System Details:

  • (2) - Hiebco 8 ft. x 48 in. Flat Deck Trailers

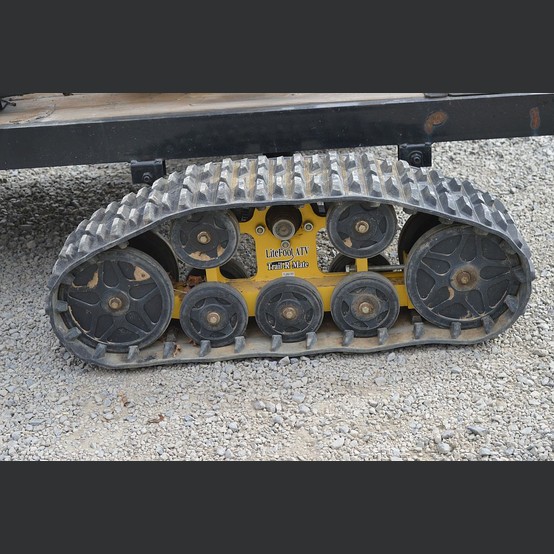

  • LiteFoot ATV Trail-R-Mate Rubber Tracks
  • Overall Dimensions: 132in. Long from Tongue to Rear x 76in. Wide
  • Includes Spare set of 440 Mag Off Road Tires

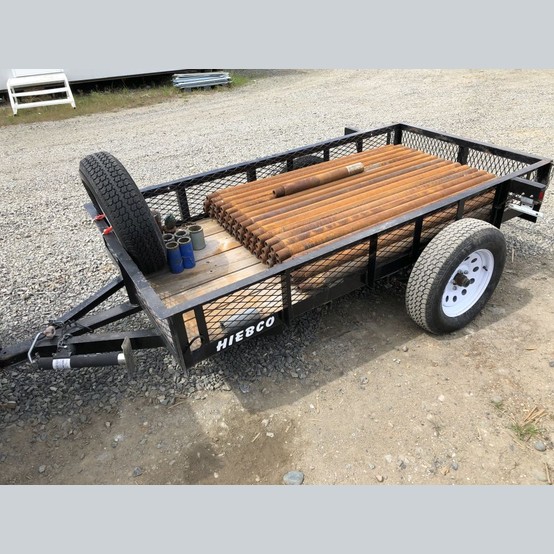

Single Axle Trailer / Rod Sloop

  • Hiebco 8 ft. x 48 in. Trailer
  • 440 Mag Off Road Tires
    • Size: 25 x 10.00-12 NHS
  • Includes Spare Set of LiteFoot ATV Trail-R-Mate Rubber Tracks

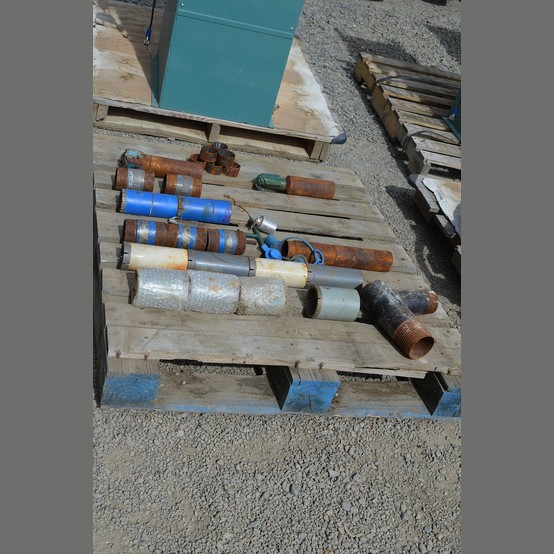

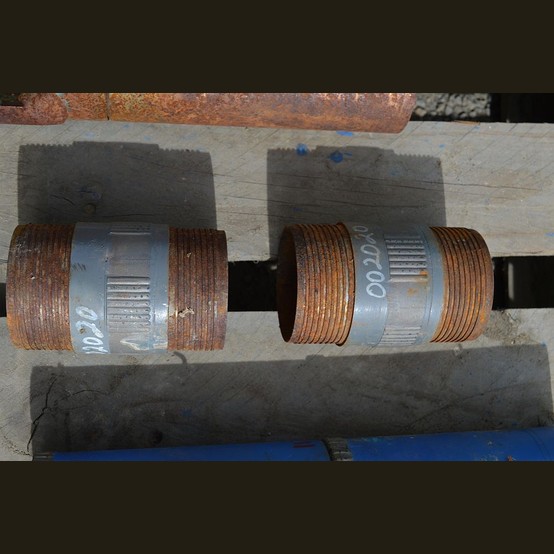

Drill Steel Details

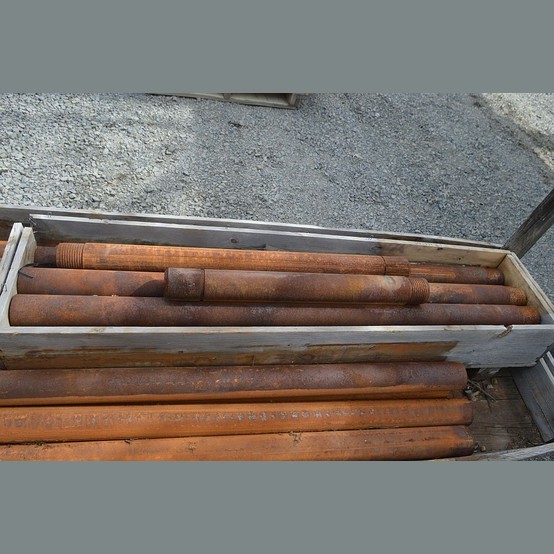

  • 5ft. NW Casings
    • Qty: 8
  • 42in. NW Casing
    • Qty: 1
  • 37in. NW Casing
    • Qty: 1
  • 5ft. NQ Casing with Core Sub
    • Qty: 2

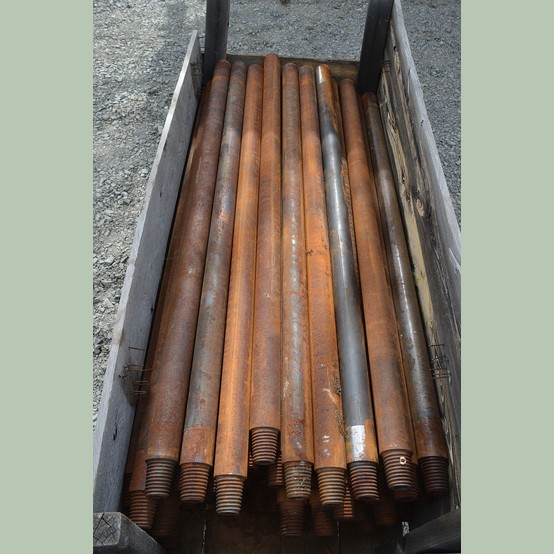

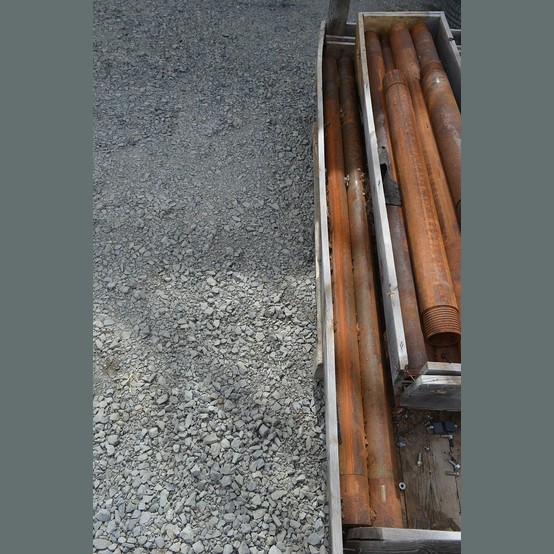

  • 5ft. Drill Rods API Thread
    • Qty: 40
  • Extractors
    • Qty: 9

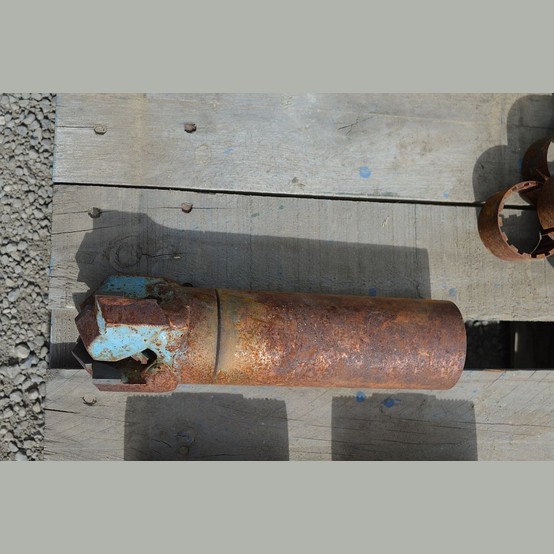

  • Over Burdine Bits
    • Qty: 2

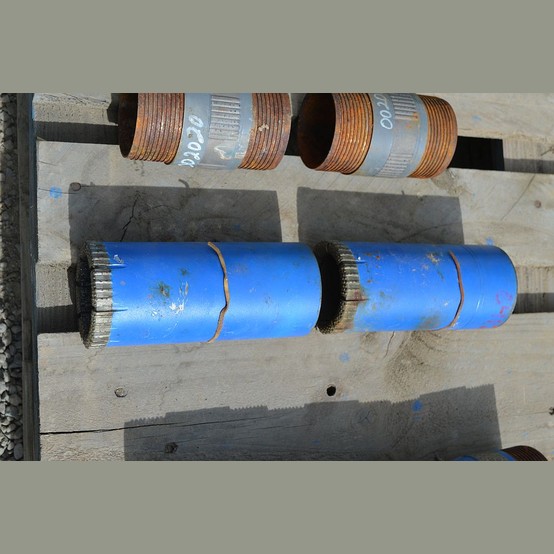

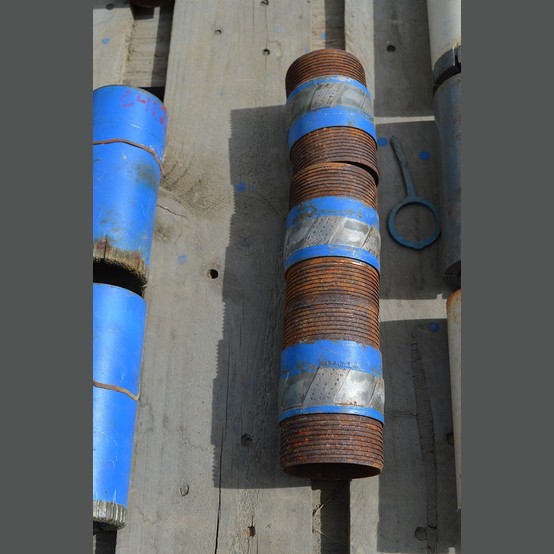

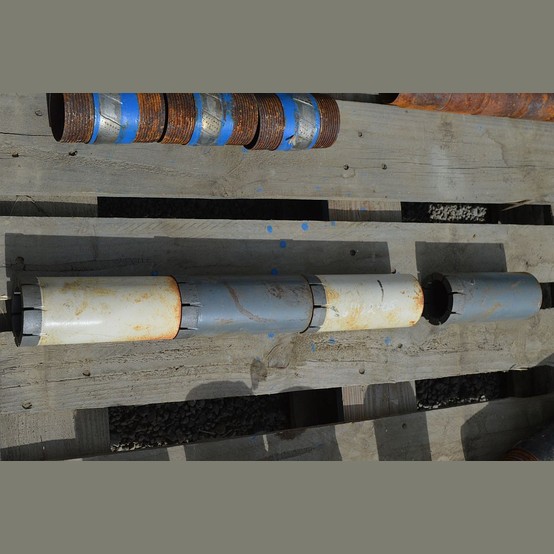

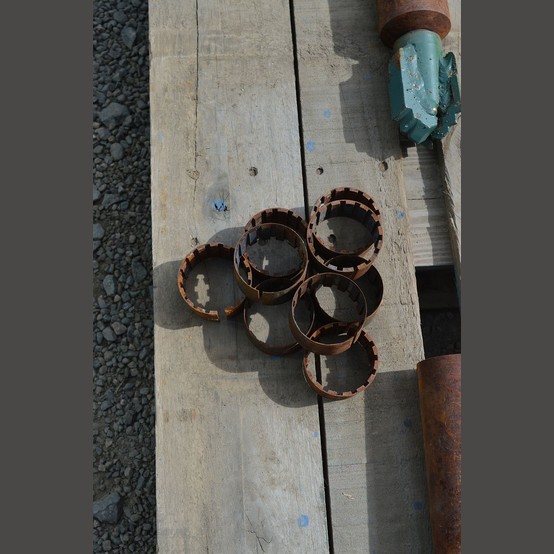

  • Reamer Shells
    • Qty: 2

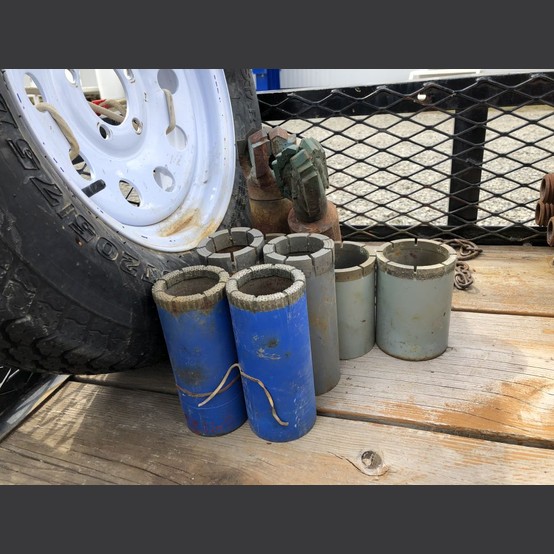

  • Blue NQ Bits
    • Qty: 2
  • Reamer Shells
    • Qty: 3

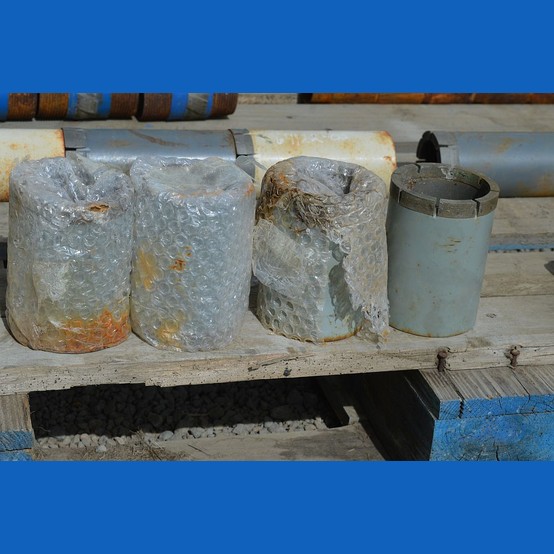

  • Grey and White Bits
    • Qty: 4

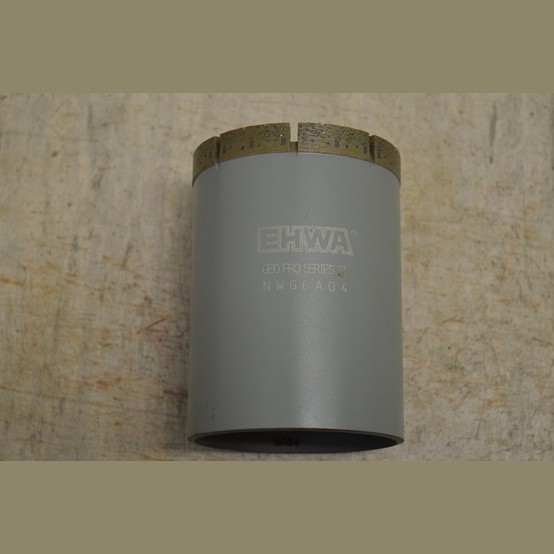

  • EHWA Gea Pro Series II Bits
    • Model: NWGDA04
    • Qty: 4
  • Location: Savona, B.C.

Watch YouTube Video: https://www.youtube.com/watch?v=FkZe4y-gEXE
