• Make: Multi-Power Products
• Model: Discovery II

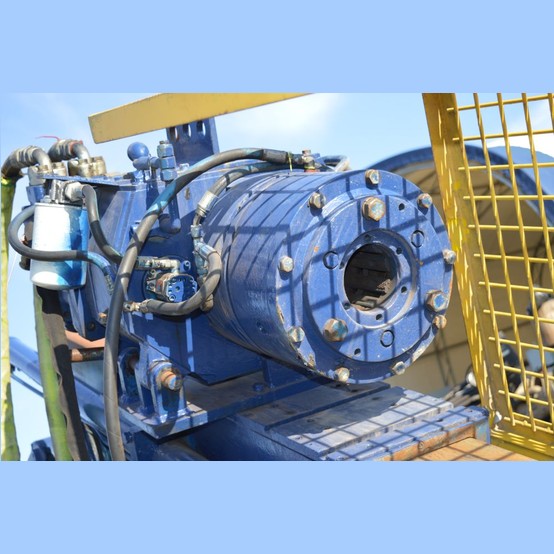

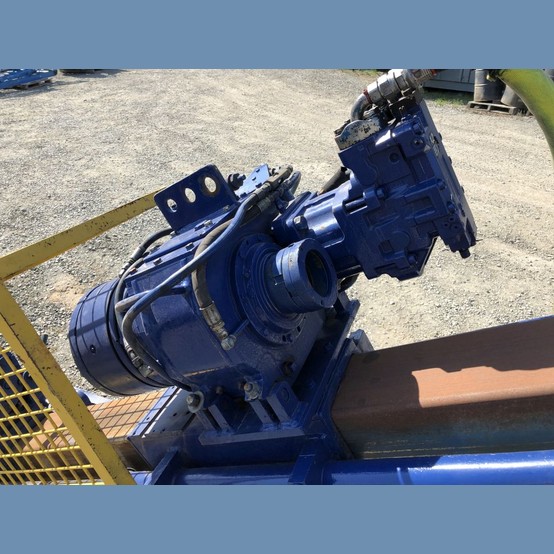

• B20 Drill Head
• 12HH Foot Clamp
• Dual Hyd Ram Head Raiser/Lower
• Extendable Mast 15ft. Long
• 14in. Wide x 18in. Deep Wire Line Winch
• Skid Mounted 4x2 Tubing
• Over All Dimensions (Without Mast)
• 108in. Long x 36in. Wide x 61in. High
• Hyd Tank: 33in. Long x 16in. Deep x 30in. High
• Complete with
  • Perkins Diesel Engine
  • Engine Model Year: 2010
  • Engine Family: CCA 444
  • kW: 95
  • Control Panel with
    • Gauges, and Leavers mounted on Skids with Engine
  • Hyd Tank on Skid with Engine
    • Dimensions: 21in. Wide x 23in. Long x 18in. High
  • Skid Made of 4x2 Tubing
• Pump Box with American Bean Pump
  • American Bean Pump
    • Model: AW1122BCD
    • GPM: 37
    • PSI: 1000
  • Box Dimensions
    • 61in. Wide x 29in. Deep x 30in. High
• Location: British Columbia, Canada

MPP’s flagship diamond drill, the Discovery II was developed with portability and production in mind. The rig is both compact and powerful. The Discovery II’s modular design allows for efficient and safe helicopter transport. The rig’s small footprint and available track package allow the Discovery II to access remote drill sites most large rigs cannot reach.
