Voyager 2000 Diamond Core Drill ID: 1477582

Voyager 2000 Diamond Core Drill.

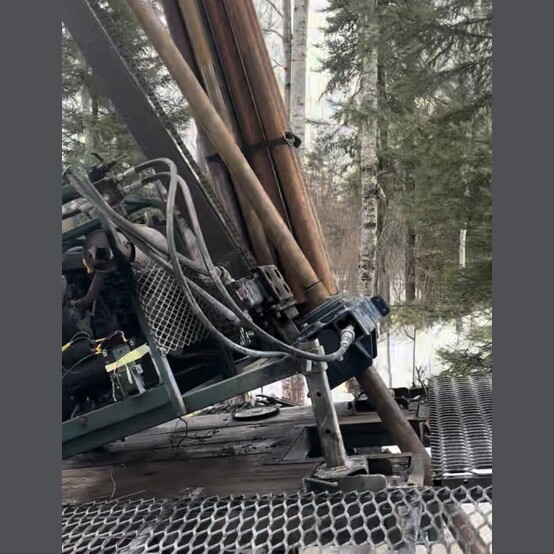

- Commercial Interech Hyd. High Speed, Direct Drive Drill Head
- Model: M365A842VCEB20-11
  - Variable Speed from 0 - 900 RPM
- Foot Clamp: Multipower Products MP500
  - 2-Cylinder Foot Clamp Assembly with Guide
- Pull Down Force: 5,000 lbs.
- Retract Force: 5,000 lbs.
- Feed Stroke: 5ft
- Variable Speed
Giant Triplex Pump
- Model: BP100
- Kohler 2-Cyl. Gas Drive
- Variable Displacement Load Sensing
- 17 GPM / 2,875 PSI @ 2500 RPM
All Mounted on Hiebco RTC Wood Deck Trailer With Rims and Tires

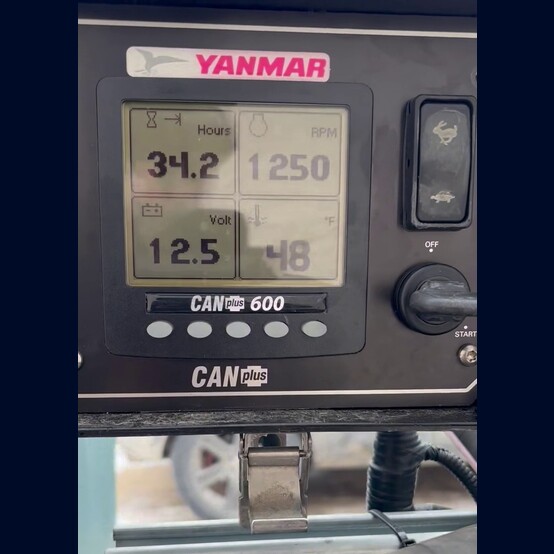

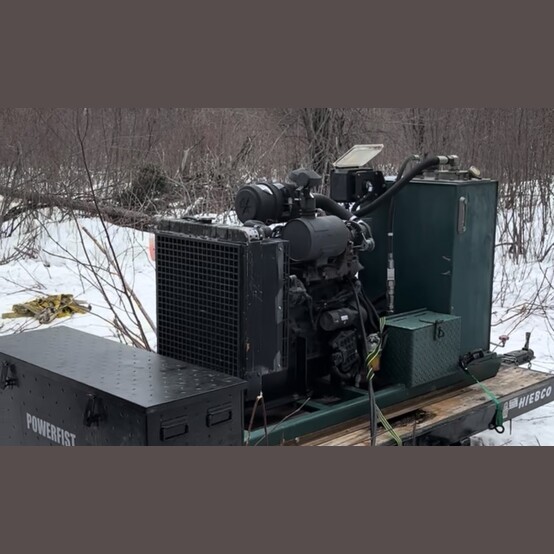

Yanmar Turbo Diesel / Hydraulic Power Pack
- 4 Cylinder, Liquid Cooled Direct Injection Diesel Engine
- Model: 4TNV84T-ZDSAD
- Hours: 34.2 Hours
- Displacement: 1.995 L
- Power Output: 55.2 HP, 3000 RPM
Hydraulic Tank Mounted on Common Skid with Engine
- Tank Dimensions: 13in Wide x 23in Long x 33in High
All Mounted on Hiebco RTC Wood Deck Trailer With Rims and Tires
- Comes with Additional Rear Hitch Point
Hiebco Single Axle Trailer/Rod Sloop with Drop Down Tail Gate and Additional Rear Hitch Point
- Tires: Tex Star ST2054-75-D15
- Complete with Spare Tire

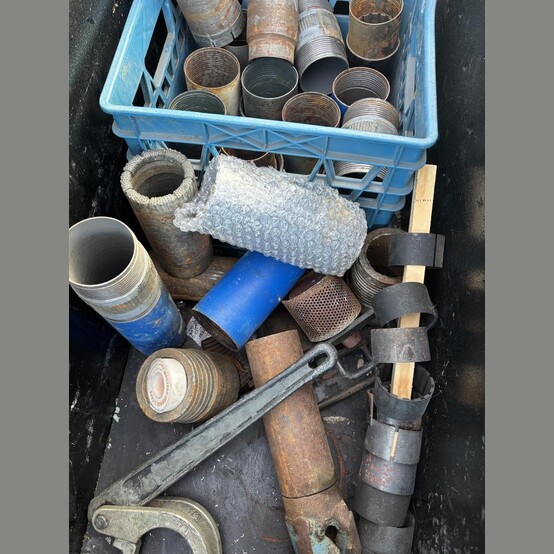

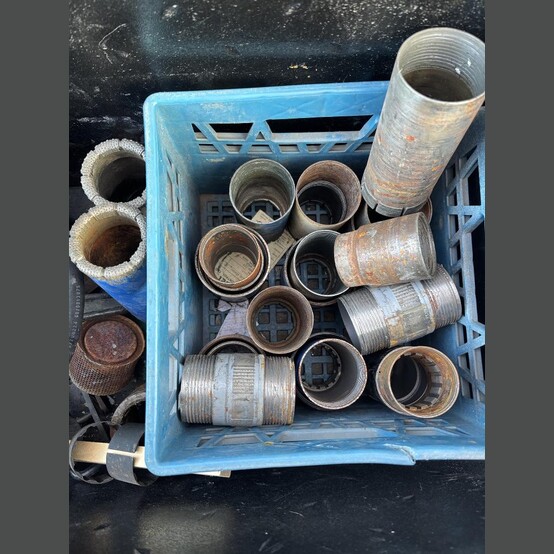

Drill String Consisting of:
- 200ft API Drill String with NW Casing
- 5ft NW Casings
  - Qty: 8
- 42in NW Casing
  - Qty: 1
- 37in NW Casing
  - Qty: 1
- 5ft NQ Casing with Core Sub
  - Qty: 2
- 5ft Drill Rods API Thread
  - Qty: 40
- Core Catchers
  - Qty: 14
- NQ Diamond Core Bits
  - Qty: 15
- Overburden Bits
  - Qty: 2
- Reamer Shells
  - Qty:6
- NW Casing Bits
  - Qty: 8
- NWL/N2WL Outer Wrench
  - Qty: 2
Location: Central Canada
