AESA 12M UK 1,300mm x 2,530mm Ball Mill ID: 1125275

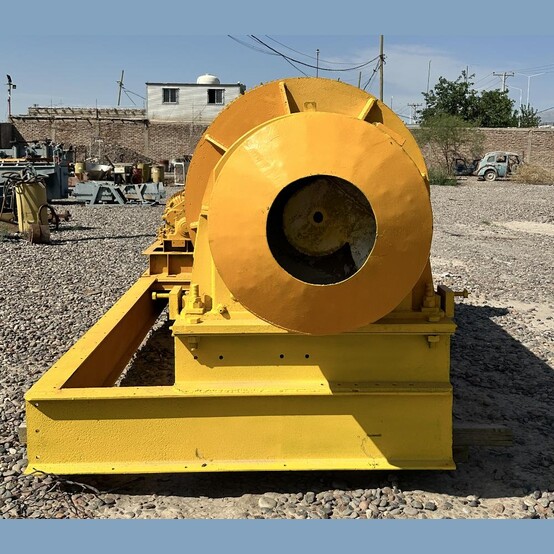

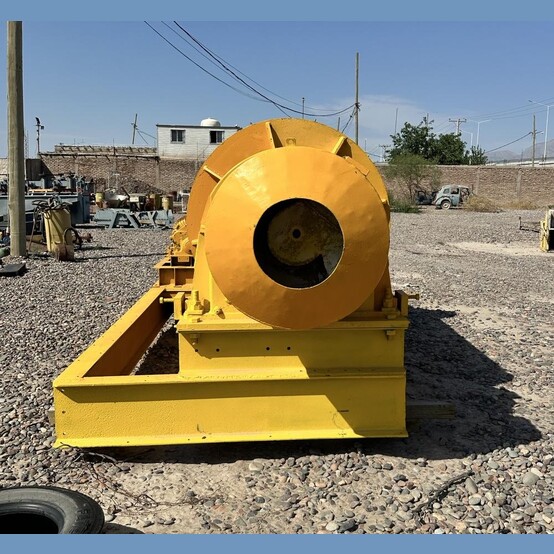

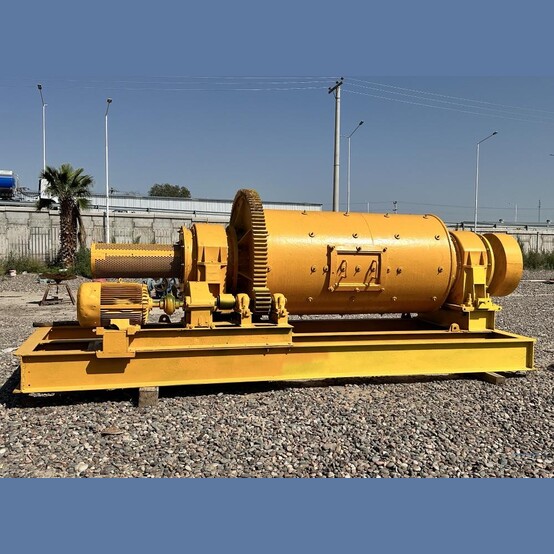

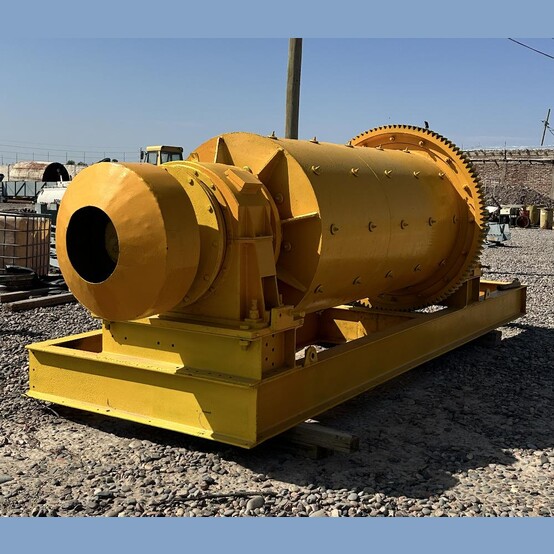

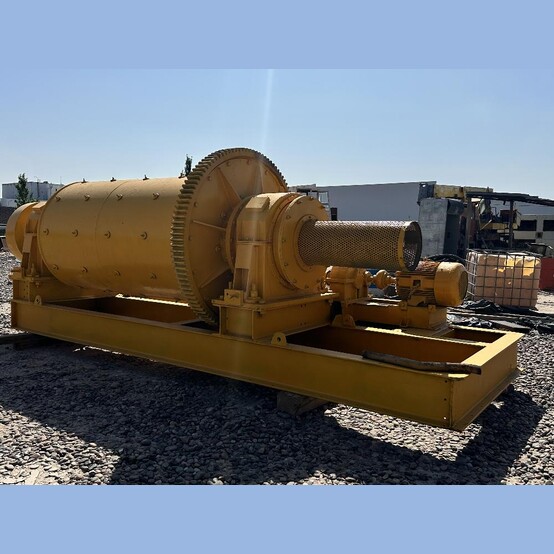

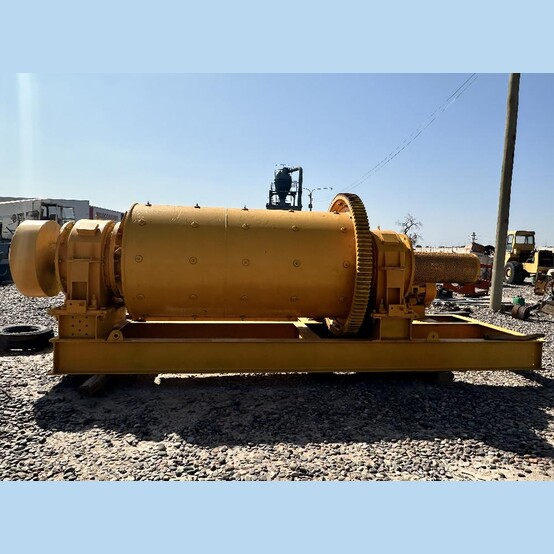

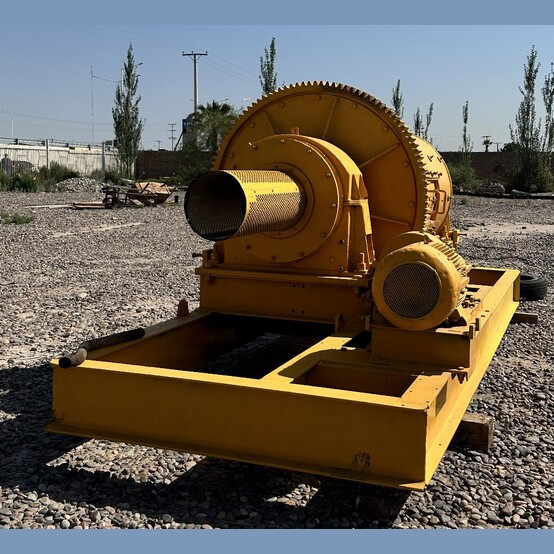

AESA 12M UK Ball Mill

  • Make: AESA UK
  • Model: 12 M
  • Size: 1,300mm Diameter, 2,530mm (Approx. 4' x 8')
  • Feed Type: Continuous, Spout Feed
  • Discharge Type: Overflow Discharge

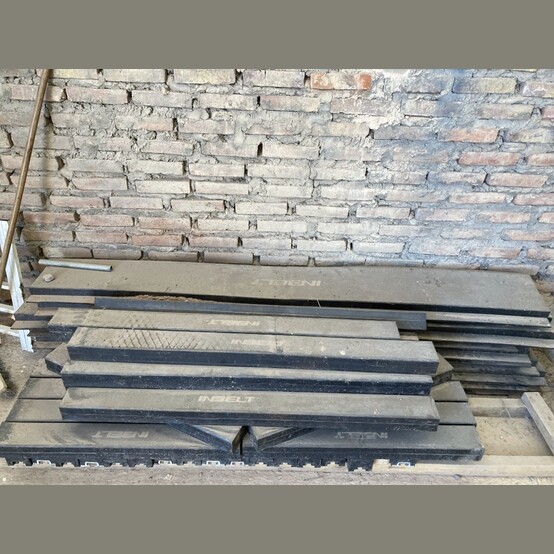

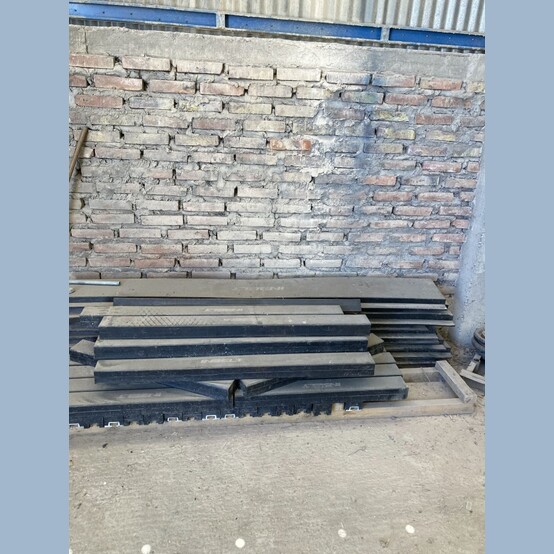

  • Liner Material: Brand-New Heavy-Duty Rubber Liner with Fixations

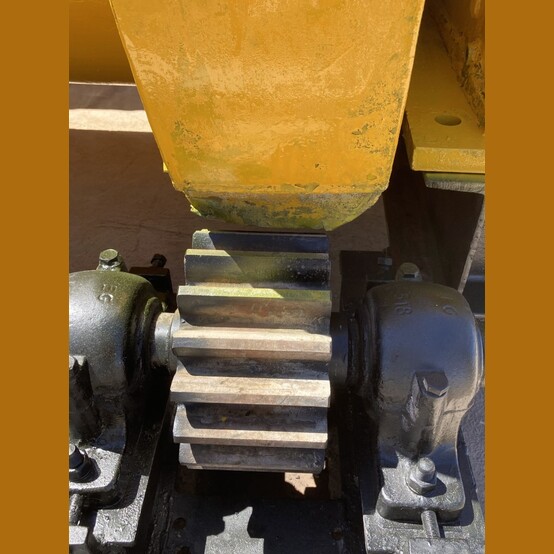

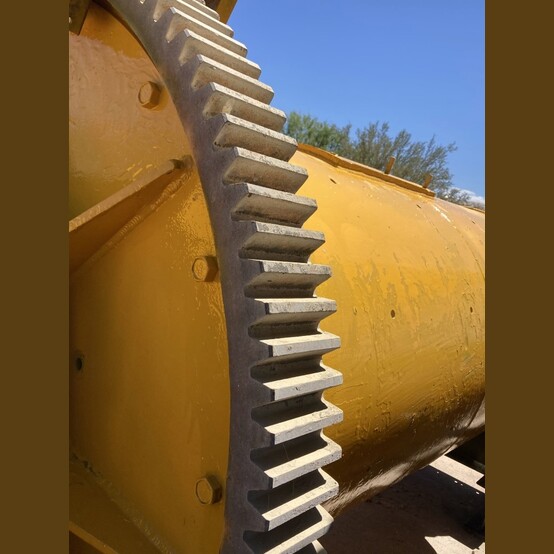

  • Gear Style: Pinion and Ring Gear, Straight Cut Bull Gear
  • Tooth Count:
    • Bull Gear: 112
    • Pinion Gear: 17
  • Bearing Dimensions: Approx. 1m Diameter by 30cm Wide
  • Drive Configuration: Electric Motor Close-Coupled to a Gear Reduction Unit (Reduction Ratio 1:8)

  • Motor
    • HP: 50 HP
    • RPM: 1456
    • Volts: 380V
    • 50Hz
    • 3 Phase

  • Overall Dimensions:
    • Length: 4.5m Approx.
    • Width: 2.4m Approx.
    • Height: 2.8m Approx.
    • Weight: 12-15 ton Approx.

  • Condition and Additional Notes:
    • Mill is in Excellent Condition
    • Bearings in Great Condition with no sign of wearing
    • Pinion and Ring Gear are in Immaculate Condition with almost No Sign of Use
    • Electric Motor and Reducer in Perfect Condition
    • Totally enclosed Trunnion Bearing Lubrication System
    • Bearing Covers
    • Full Ring Gear Guard

  • Location: South America
