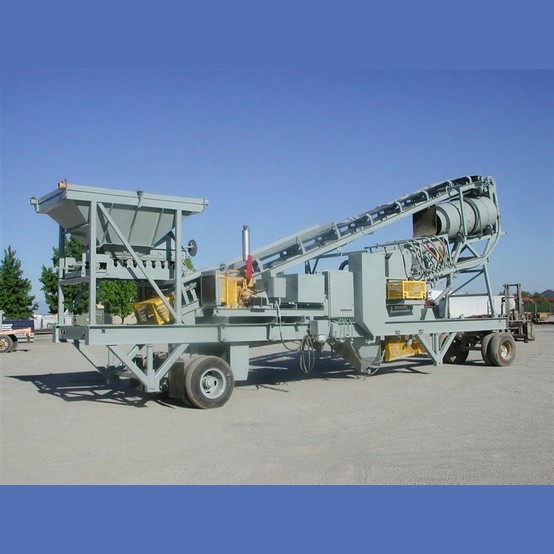

• Portable Placer Gold Recovery Plant
  • Complete with
    • 9 ft. x 6 ft. Feed Hopper with
      • Self Cleaning Grizzly with bars Spaced at 4 in. Opening
    • 24 in. Wide Main Feed Conveyor with
      • Full Length Skirtboards
    • 42 in. Diameter x 8 ft. Long Rotary Scruber with
      • Water Spray Pipe
    • 3 ft. Wide x 6 ft. Long Double Deck Vibrating Screen with
      • Punched Plate on the Top Deck with 2 in. Round Openings
      • Screen Cloth on the Bottom Deck with ¼ in. x ½ in. Slotted Openings
    • 24 in. Wide Side Discharge Conveyor for the Oversized Material from Both Decks of the Screen
    • 44 in. Wide x 48 in. Long Pulsating Rougher Jig with Steel Shot
    • 44 in. Wide x 8 ft. Long Sluice Box
    • 12 in. Diameter Stand Pipe
    • Tandem Axle Chassiss with
      • Dual Wheels
      • Stabilizing Jacks
      • Brakes
      • Lights
      • Fifth Wheel Pin
    • Self-Contained with an Isuzu Diesel Generator
  • Location: Western USA
