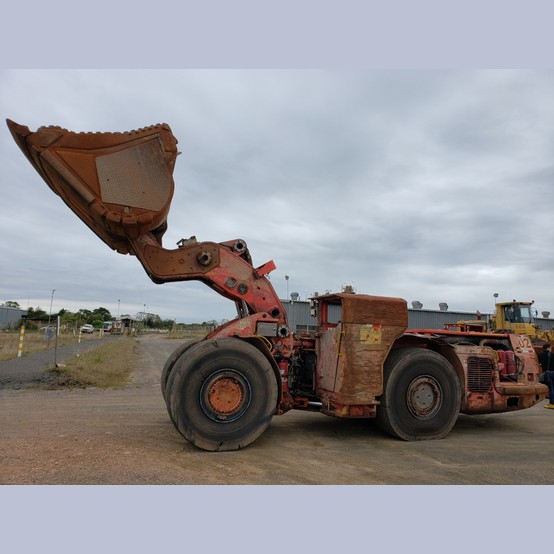

• Model: LHD-514
  • Year: 2010
  • Hours: 24.566
  • S/N: L114D430
  • Bucket - Range (m):4.6 - 7.0
  • Capacity - Tramming (kg): 14,000
  • Weight - Operating (kg): 38,100
  • Breakout Force - Lift (kg): 28,042
  • Breakout Force - Tilt (kg): 23,453
  • Length - Total (m): 10.52
  • Width - Total (m): 2.77
  • Height - Total (m): 2.54
  • Height - Dump (m): 2.40
  • Height - Pin (m): 4.09
  • Height - Max (m): 5.75
  • Dump Reach (m): 1.58
  • Ground Clearance (mm): 386
  • Turning Radius - Inside (m): 3.35
  • Turning Radius - Outside (m): 6.86
  • Engine Power (kW): 256
  • Speed - Max (km/h): 32.7
  • Tires: 26.5 x 25
