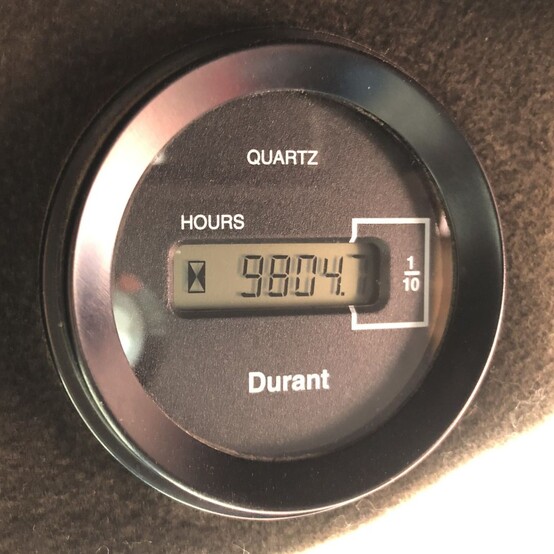

• Truck Hours: 9,800
  • Year: 2008
  • Dimensions:
    • Total Length: 10,217 mm (402 in.).
    • Total Width: 2,990 mm (118 in.).
    • Height: 2,670 mm (105 in.).
    • Max. Height of the box: 2760 mm (109 in.).
  • Weights
    • Operating Weight: 30,700 kg (67,700 lb).
    • Total loaded weight 70,700 kg (155,900 lb).
    • Axle weights without load:
      • front axle 22,200 kg (49,000 lb).
      • rear axle 8,500 kg (18,700 lb).
    • Axle weights with load:
      • front axle 33,400 kg (73,600 lb).
      • rear axle 37,300 kg (82,200 lb).
  • Capacities:
    • Payload capacity: 40,000 kg (88,125 lb).
    • Box std.: 18.0 m³ (24yd³).
  • Dump box movements
    • Discharging time: 13 sec.
    • Dumping angle: 62°.
  • Frame:
    • Rear and front frame: Welded steel construction.
    • Material: Raex 384 (St 52-3).
    • Central hinge: Box constructed, adjustable lower bearing.
    • Firewall.
  • Engine: Detroit S-60 DDEC IV:
    • Diesel Engine.
    • Output: 354 kW / 2100 r/min (475 HP).
    • Torque: 2102 Nm / 1350 rpm.
    • Number of cylinders: in line 6.
    • Cooling system: water cooled.
    • Combustion principle:
      • Direct injected.
      • Turbo + inter cooler.
      • 4 stroke.
    • Air Filtering: Donaldson.
    • Exhaust System:
      • HTI covered exhaust manifold & Turbo
      • Double wall exhaust pipe
      • Catalytic purifier & muffle
    • Fuel Tank Capacity: 550 l (145 gal.)
  • Dana SOH 8821 Gearbox:
    • Power shift transmission with electric remote shifting.
    • 8 forward gears.
    • 2 reverse gears.
  • Dana axles.
  • Brakes: Service and emergency brake are fully hydraulic.
    • Dana liquid cooled LCB.
  • Ansul fire suppression system.
  • Rear Backup Camera.
  • Automatic Hydraulic Lubrication System.
  • Box: conventional.

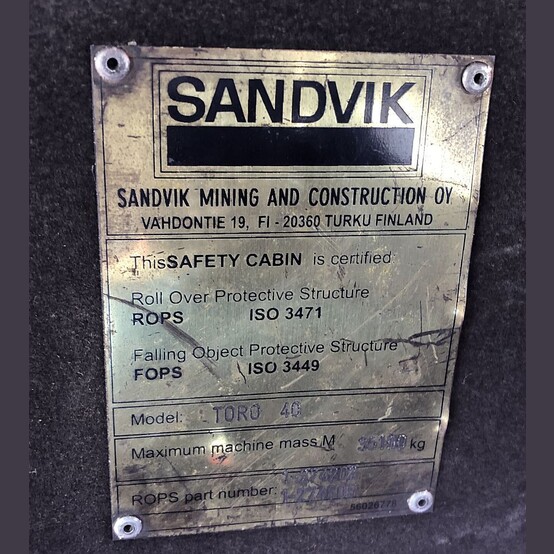

  • ROPS/FOPS canopy meets CSA B352 standards.
  • Overall Condition: Good, used.
  • Location: Savona British Columbia
