Refurbished Hy-G P12 Gold Concentrator Test Plant ID: 471855
Savona Equipment Ltd. is an authorised global distributor for Hy-G Concentrators Inc. www.hygconcentrators.com and provides the same great OEM pricing and service.
Make: Hy-G
Model: P12 Test Plant
Condition: Refurbished

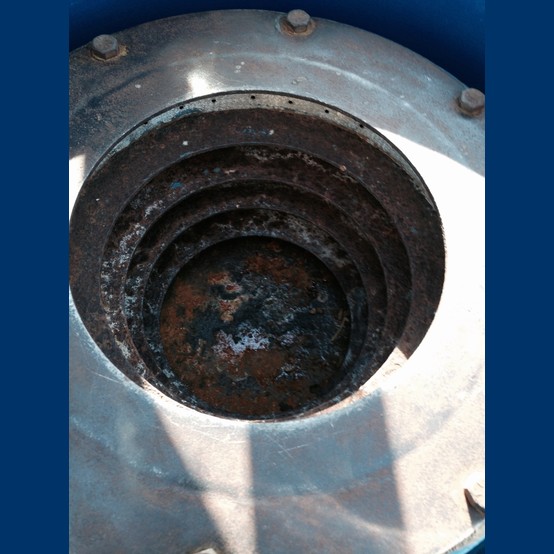

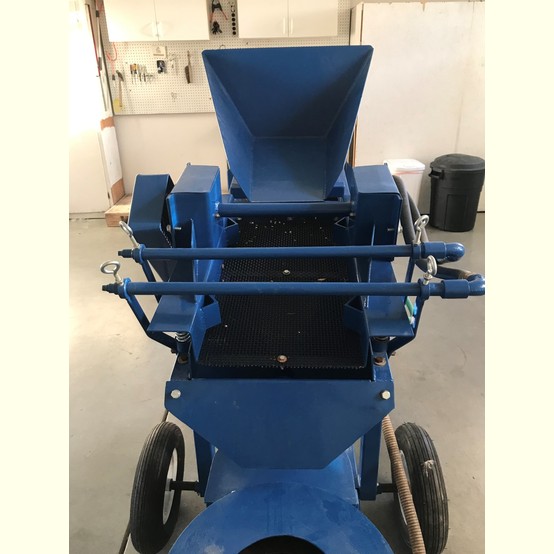

Description: The Hy-G P12 Gold Concentrator Test Plant comes with the optional Hy-G Vibrating Wash Screen. The screen undersize flows into the Hy-G Centrifugal Concentrator as a slurry. The Hy-G concentrator is a semi-batch concentrator. It can process continuous feed but must be stopped to discharge the concentrate. The gold and other heavy metals and minerals are concentrated in the Hy-G Placer Bowl. The Hy-G P12 can recover up to 98% of gold as fine as 44 microns (325 mesh).
Uses: Bulk Sampling, Testing Placer Ores, Upgrading Concentrates.
Specs:
- Bowl Size 12 inch (305 mm)
- Max Capacity: 10 TPH
- Max Capacity for Max Gold Recovery: 5 TPH.
- Electric Motors .25 HP and .75 HP
- Water required: Approx. 60 GPM @ 35 PSI
- G-Force 70
View more Centrifugal Gold Concentrators
