New Surplus NHI 6.4m Dia. x 10m Long Ball Mill

New Surplus NHI 6.4m Dia. x 10m Long Ball Mill ID: 1504543

Temporarily Unavailable

Need this? Click here Have one? Click here

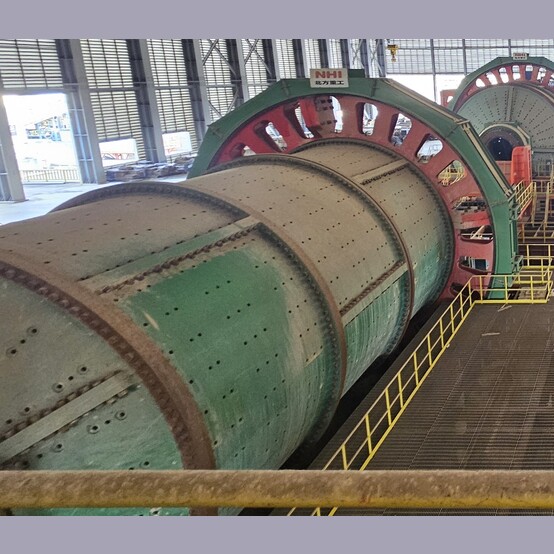

NHI 6.4m Dia. x 10m Long Ball Mill

Quantity: 2 Units Available

Make: NHI (Northern Heavy Industries)
Type: Ball Mill
Condition: New Surplus
Complete Mills
Mill Diameter: 6,400mm Dia. (21ft)
Mill Length: 10,000mm (32.8ft)
Mill Diameter (Inside Liners): 6,160mm (20.2ft)
Effective Grinding Length: 10,000mm (32.8ft)
Shell Effective Volume: 298m³
Max Ball Charge (by Volume): 30%
Normal Operating Speed: 12.6 RPM @74%Cs
Drive: Electric Motor
- Power Output: 8000kW
- Frequency: 50Hz
- Mill Motor Type: Squirrel-Cage and VFD
