300 TPD Crushing, Milling, Gravity and Flotation Plant with Assay Lab ID: 1429444


300 TPD Crushing, Milling, Gravity and Flotation Plant with Assay Lab

  • Equipment Included:
    • Jaw Crusher
    • 3ft Shorthead Cone Crusher
    • Ball Mill
    • Step Deck Screen
    • (2) Falcon Concentrators
    • Floatation Cells
    • Filter Press
    • Holman-Wilfley Shaker Table
    • Action Mining Wave Table
    • Induction Furnace
    • Full Assay Prep and Assay Lab, including an Atomic Absorption Spectrometer
    • Many Pumps

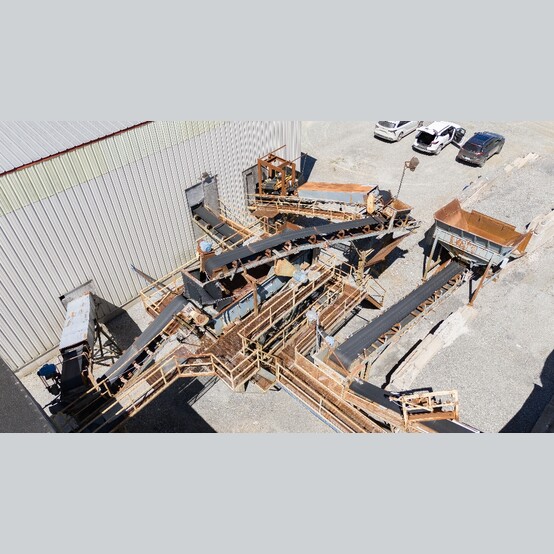

  • Crushing Circuit:

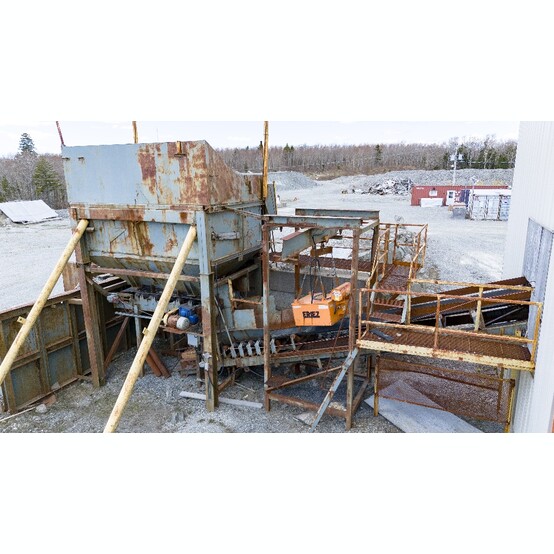

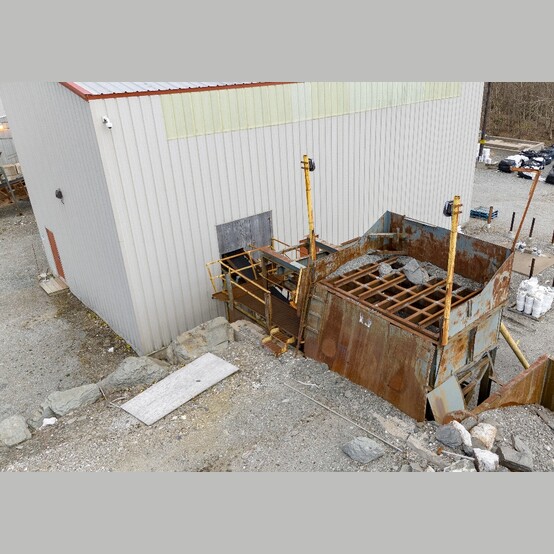

    • Hopper/Feeder: 10 Yard Course Ore Bin with 42" Wide X 10' Belt Feeder:
      • Dimensions: 148in Wide x 100in Long x 7ft Deep
      • Grizzly: 19in x 13in Grizzly Bar Spacing
      • Output Belt Drive: 10HP General Electric Motor through Renold WM5 60:1 Reducer
      • Eriez SE7730 36in Electromagnet Over 30in x 40ft Transfer Conveyor
      • Mounted on 14.5ft High Legs

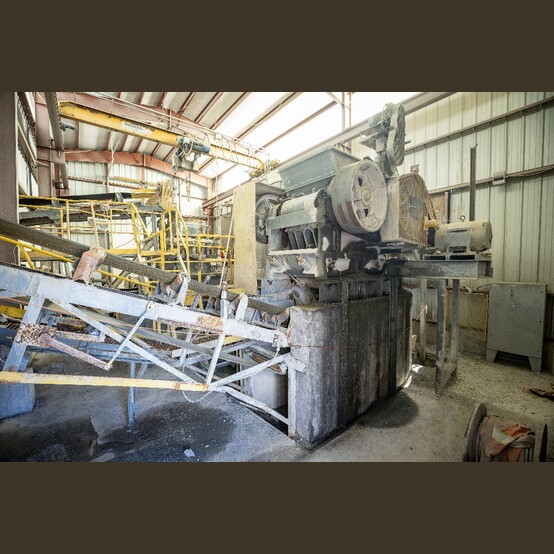

    • Cedarapids 1836 Jaw Crusher:
      • Drive: General Electric 125HP Motor
      • Sitting on 12in I-Beam Frame
      • Outputting Via 30in x 40ft Conveyor with Eriez 30in x 30in Crossbelt to Screen (Via Additional 24in x 25ft Transfer Conveyor)
      • With Guarding

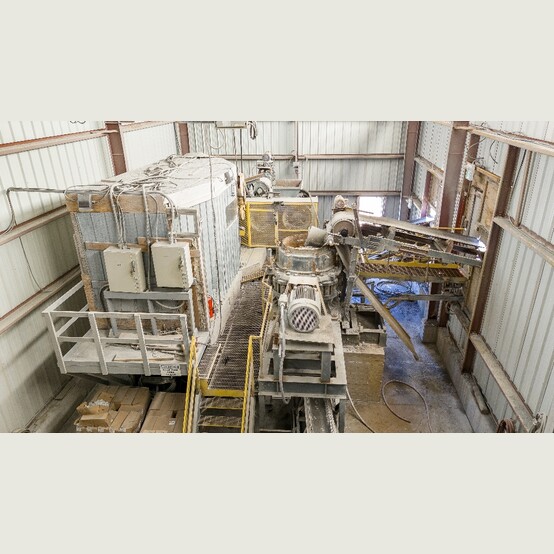

    • 3ft Symons Nordberg Shorthead Cone Crusher:
      • Drive: 100HP Fader Agencies Electric Motor
      • Fed Via 24in x 40ft Conveyor from Screen
      • Outputting Via 18in x 30ft Conveyor to 24in x 40ft Transfer Conveyor to Screen
      • With Guarding
    • Demag 5-Ton Overhead Crane:
      • With Pendant Control and 70ft of Rails

  • Screening Circuit:
    • Allis Chalmers 5ft x 16ft 2-Deck Screen:
      • Top Deck Spacing: 1in x 1in
      • Bottom Deck Spacing: 0.5in x 0.5in
      • Drive: 25HP WEG Electric Motor
      • Oversize Conveyed Back to Cone Crusher
      • Fines to Fine Ore Bin in Mill Circuit

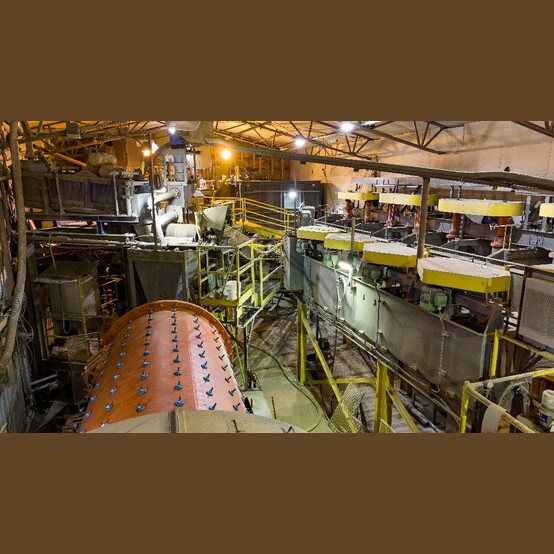

  • Mill Circuit:
    • Shutdown/Surge Bin:
      • Dimensions: 12.5ft Long x 9ft Long x 6ft Deep
      • Discharge: 5ft Long x 1ft Wide
      • Outputting Via 30in Wide x 30ft Long Conveyor (10HP) to 24in x 20ft Conveyor with Belt Gate to Fine Ore Hopper
      • Mounted on 9ft High Legs
    • Fine Ore Hopper:
      • Shop Built
      • Dimensions: 14ft Long x 130in Wide x 90in Deep
      • Vibco Vibrating Motor on Bottom of Bin
      • Output Via 30in Wide x 15ft Long Belt (5HP) to 24in x 30ft Transfer Conveyor

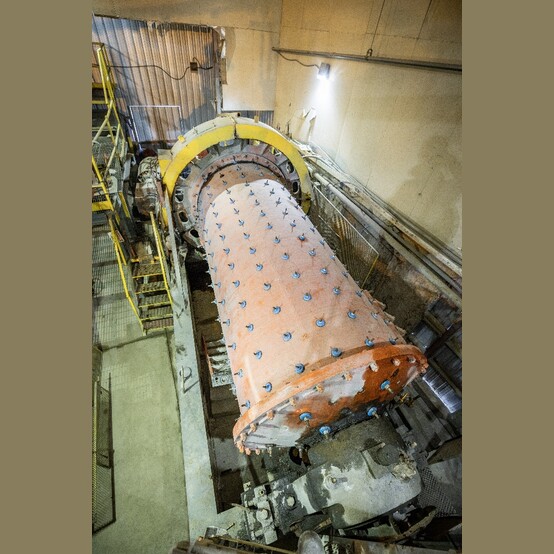

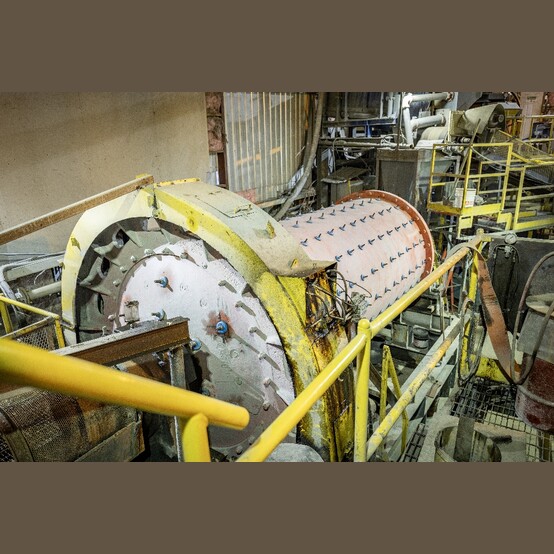

    • Allis Chalmers 5ft Dia. x 16ft Long Ball Mill:
      • New Unused Liners
      • Drive: General Electric 250HP Reconditioned Electric Motor
      • Feed: Spout Fed from Fine Ore Bin
      • Discharge: Overflow With Trommel Screen on Output
      • I-Beam Frame
      • Guarding
    • Krebs Cyclone:
      • Model GMAX 10-20-3253
    • Sizetec Stepdeck Screen:
      • Model: SDS28-6MV-5
      • Size: 28in Wide x 9ft Long
      • DOM: Aug 16, 2013
      • With 4 Screen Caps

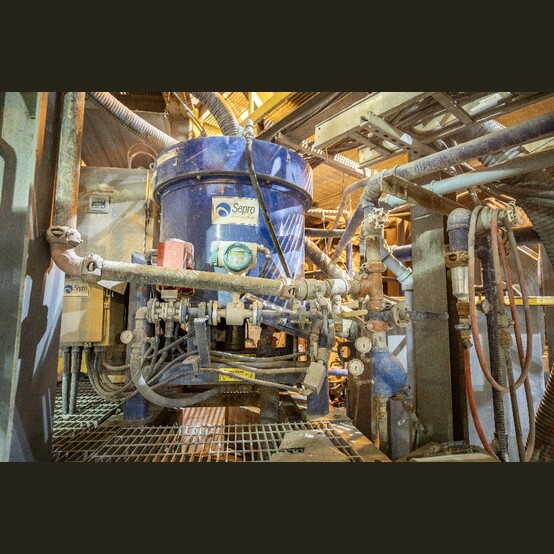

    • Sepro Falcon Concentrator:
      • Model: SB750
      • DOM: December 2009
      • With AutoPac Control
    • Sepro Falcon Concentrator:
      • Model: SB750BSE
      • DOM: Aug 2013
      • With AutoPac Control

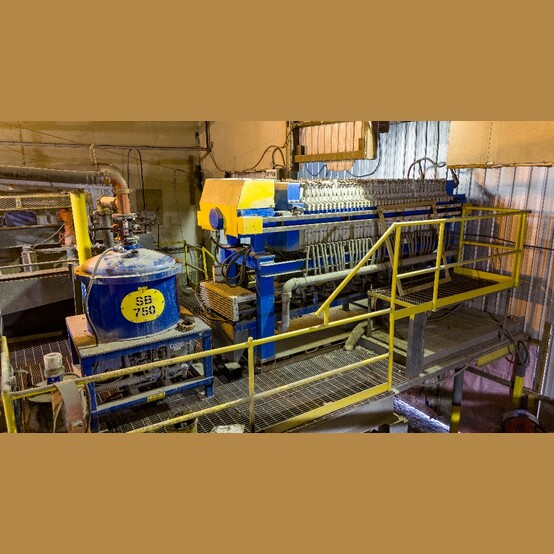

    • Hangzhou Leo Filter Press:
      • Model: X800
      • DOM: Jan 10, 2013
      • Plate Size: 31.5in x 31.5in
      • # of Plates: 40
      • Not Functioning in CNC Mode, May need Repairs
      • Output Conveyor: 19.5in Wide x 14ft Long Conveyor Mounted Underneath

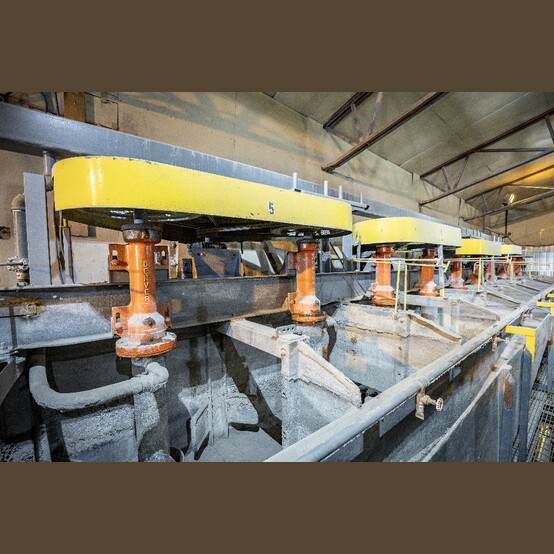

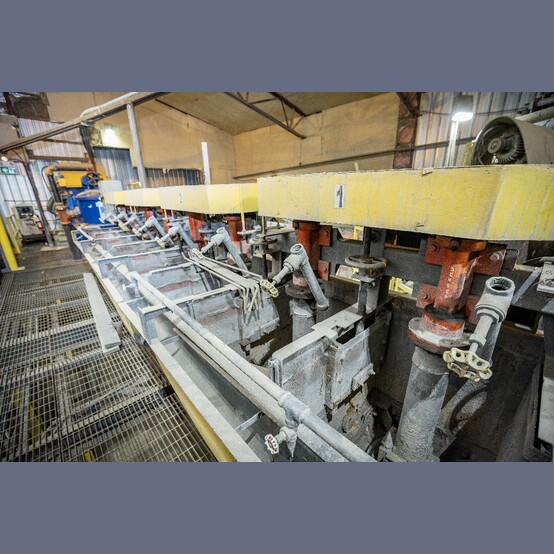

    • Denver #24 DR Flotation Cells:
      • Banks: (2) Banks - Bank of 6, Bank of 4
      • Model: #24 DR
      • Capacity: 50ft³ Per Cell
      • Drive: (5) 15HP, 1180 RPM Belt-Drive Electric Motors - 2 Cells per Motor
      • Comes With:
        • Overflow Launder Trough
        • Sealed Standpipe with Forced Air Control
        • Belt Guards
    • Denver #18 Special Flotation Cells:
      • Bank of 8
      • Model: #18 Special
      • Capacity: 24ft³ Per Cell
      • Manual Cell to Cell Flow Control Gate
      • Naturally Aspirated Sealed Standpipe
      • Drive: (4) 5HP, 1735 RPM Westinghouse Belt-Drive Electric Motors - 2 Cells per Motor
    • Thickener:
      • Custom Built Thickener/Agitator
      • Size: 18ft Dia. x 8ft Deep (Approx.)
      • Head: Dorrco Head (Approx. 40in Diameter)
  • Gold Room:

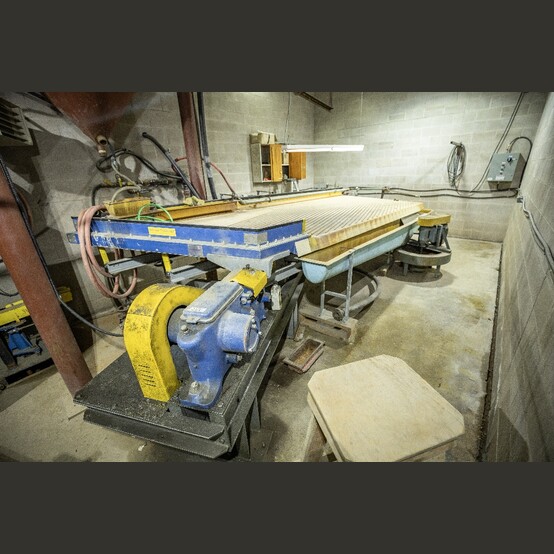

    • Holman Wilfley Concentrating Table
      • Model: 8000SD
      • Year: 2014
      • Deck Area: 7.5m²
      • Capacity: Up to 2,500 kgs/Hour
      • Drive: 3HP Baldor Electric Motor

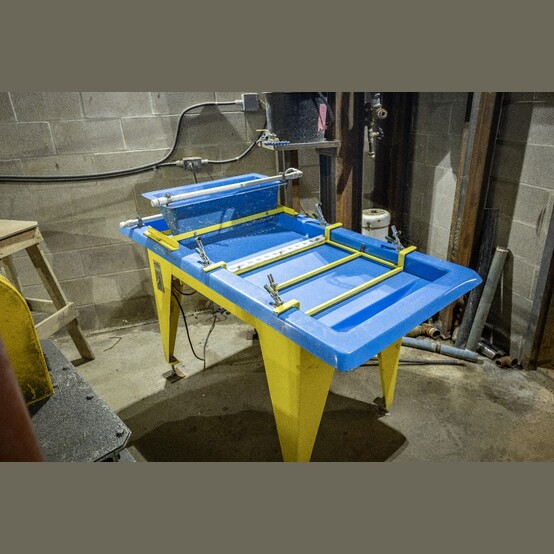

    • Action Mining Concentrating Wave Table
      • Model: M7
      • Capacity: 600-2500 Lbs. Wet Slurry Feed Per Hour (Depending on Material Run)
      • Water Requirements: 3-8 GPM (can be recycled), 2 Adjustable Spray Bars
      • Drive: 0.5HP, 115 Volt Electric Motor

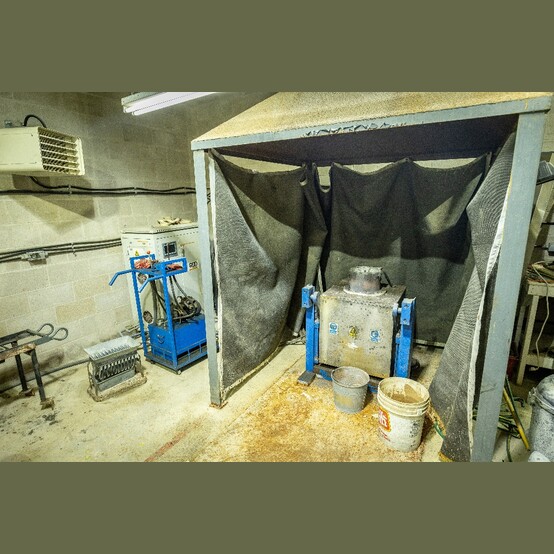

    • RDO Induction Melting Furnace:
      • Model: LC-50 P.S.
      • Output Power: 50kW @ 4-20kHz
      • Input Voltage: 460 Volt, 65 Amps, 3-Phase, 50/60Hz
      • Spout Diameter: 8.5in
      • Spout Depth: 18in Deep
      • With 1HP Electric Hydraulic Power Pack for Tilting
    • Conical Tank
      • Size: 5.5ft Diameter x 8ft Tall (4ft Conical Bottom)
      • Dual 2in Dia. Bottom Discharge
    • (2) Pressure Filters
      • Manual
      • Size: 9in Dia. x 12.5in High
    • Pumps:
      • Gold Room Tank Pump:
        • Size: 32in Diameter x 1ft Deep Tank
        • Discharge: 1in Dia.
        • Drive: 5HP Electric Motor
      • Gold Room Sump Pump
        • Drive: 2HP Electric Motor
      • Ball Mill Sump Pump
        • Make: SALA Machine Works
        • Type: VASA G-80-234-2S
        • Drive: 7.5HP Westinghouse Electric Motor
      • (2) Sepro Centrifugal Pumps
        • Model: HD80AR-C
        • Suction: 4in Dia.
        • Discharge: 3in Dia.
        • Rubber Impellers
        • Drive: 30HP Electric Motors
      • Svedala Vertical Tank Pump - Falcon Discharge Pump
        • Model: SPV232-2
        • Discharge: 2in Dia.
        • Pump Box: 29in Long x 34in Wide x 18in Deep
        • Drive: 7.5HP WEG Electric Motor
      • Sepro Centrifugal Pump With Pump Box
        • Model: HD80AR-C
        • Suction: 4in Dia.
        • Discharge: 3in Dia.
        • Drive: 30HP Electric Motor
        • Pump Box: 40in x 40in x 5ft
      • Sala Sump Pump
        • Model VASA G80-234-20
        • Drive: 7.5HP Westinghouse Electric Motor
      • Allis Chalmers 2x2x10 SRL Centrifugal Pump
        • Overhead Motor Mount
      • Vertical Tank Pump
        • 32in Dia. x 12in Deep Tank
        • Discharge: 1in Dia.
        • Drive: 5HP Electric Motor
      • Vertical Tank Pump
        • Model: SPV-181-1½
        • 32in Dia. x 12in Deep Tank
        • Discharge: 1.5in Discharge
        • Drive: 5HP Electric Motor
      • Pump Box
        • Make: Industrial Machine and Iron Works Ltd.
        • Capacity: 1200 Liters
        • Size: 1,000mm x 1,000mm x 1,600mm
        • Discharge: 3in Dia. Output with Butterfly Valve
      • Sala Tank Pump
        • Tank: 29in Long x 34in Wide x 20in Deep
        • Discharge: 2in Dia.
        • Drive: 10HP Electric Motor
      • Benshaw/I Curtiss Wright Panel For Ceaner Tailings Pump
        • Model: RSI-S$-0-030-600-SD-04-CB-OP
        • Hours: 6036.0
        • Horsepower Rating: 30HP
        • Current: 32 Amps
      • Sepro Centrifugal Pump
        • Model: HD80AR-C
        • Rubber Liners
        • Suction: 4in
        • Discharge: 3in
        • Drive: 30HP WEG Electric Motor
        • Pump Box with Auto Sampler
          • Capacity: 1319 Liters
          • Overflow Weir with 6in Output (Capped)
          • Discharge:
            • 8in Output Reduced to 4in (To Pump)
            • 4in Output with Butterfly Valve
            • 4in Bottom Output (Capped)
  • Laboratory:

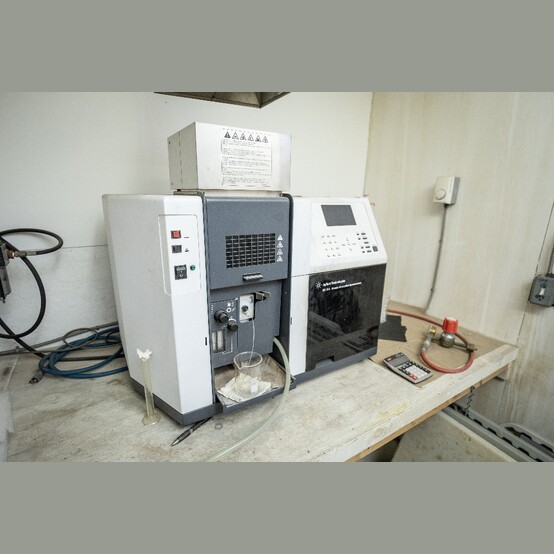

    • Agilent Technologies Atomic Absorption Spectrometer
      • Model: 55 AA

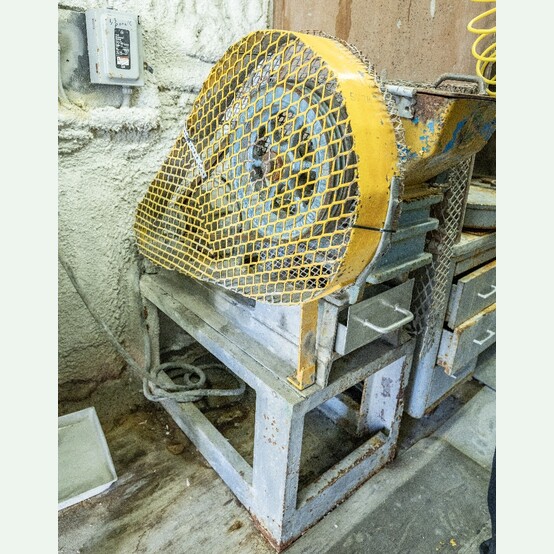

    • Whitelaw Lab Jaw Crusher:
      • Model: Model 0
      • Feed Opening: 5in x 6in
      • Hopper: 9in x 10in
      • Drive: 1.5HP, 115/230 Volt GE Electric Motor
      • With Sample Collection Drawer and (3) Spare Jaw Liner Plates

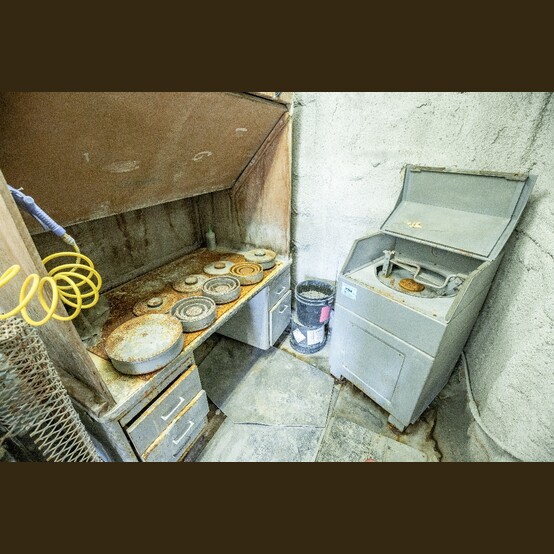

    • TM Engineering Ring and Puck Mill
      • Model: TM/STLX
      • With Control Timer
      • With 4 Full 250mL Ring and Puck Sets and 1 Fine Puck Set
    • Knelson MD3 Gold Concentrator
      • Model: KC-MD3
      • Type: Lab Size Concentrator

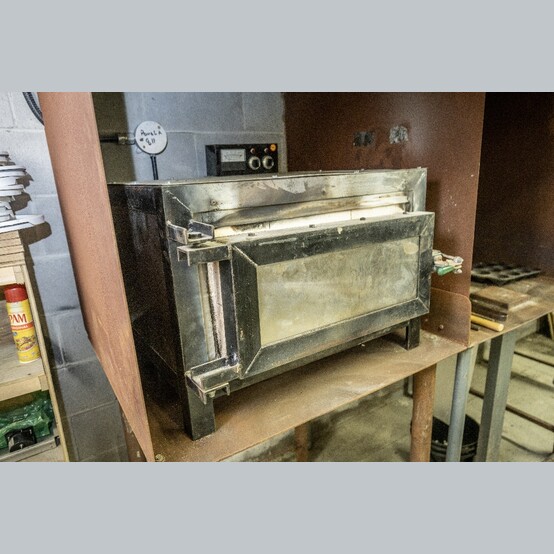

    • (2) Vcella 240-Volt Klins
      • Model: Model 21
      • Condition: (1) Working, (1) In Need of Repair
    • Vcella 120-Volt Kiln
      • Model: D9
    • Fisher ISOTEMP Drying Oven:
      • Series: 200 Series
      • Model: 230F
    • Drying Oven:
      • 4 Rack Oven
      • Temperature Control: 0-550°F
    • W.S. Tyler Sieve Shaker:
      • Model: RX-29
      • Year: 2017
      • Voltage: 115 Volt
    • Sepor Seive Shaker
      • Model: 5FTT3
      • Drive: 115 Volt, 60Hz
    • Legend Jar Mill:
      • Counter Top HD Drive Roll
      • Roll: 3 Rows, 32in Long Each
      • Drive: 0.5HP, 230/460 Volt, 50/60Hz With TECO Fluxmaster FM50 Speed Control
    • Grobet Benchtop Rolling Mill
    • Lortone Rotary Tumbler
      • Model: QT12/QT66
      • Jar Size: 7.5in Diameter x 8.5in Long
      • Drive: 115 Volt, 60Hz
    • Mettler Toledo Assay Electric Scale/Balance
      • Model: XS3DU
    • (2) Ohaus Large Electric Scale/Balance
      • Model: Explorer
    • Ohaus Medium Electric Scale/Balance
      • Model: Adventurer
    • Camel Mining Products Gold Panning Machine
      • Model: Pro-Camel-24
    • (2) Thermo Scientific Hot Plates
      • Type: 2200
      • Model: HPA2245M
    • (2) Sample Splitters
      • (1) Humboldt 16 Chute Splitter
        • Chute Width: 1in
        • Input: 20in Wide x 9in Deep
      • (1) 14 Chute Splitter
        • Chute Width: 0.75in
        • Input: 14.5in Wide x 7in Deep
    • Labconco Protector Premier Fume Hood
      • Catalog No.: 10040000010814
      • Working Area: 37in Wide x 23in Deep
      • Mounted on Protector Acid Storage Cabinet
    • New York Blower High Pressure Blower
      • Wheel Size and Type: 33510 ALM
      • Year: 2014
      • Arrangement: ARR-4
      • Flow Rate: 2,400 CFM
      • Static Pressure: 98" SP
      • Suction/Discharge Sizes: 10in Diameter
      • Drive: 75HP, 3555 RPM Baldor Electric Motor

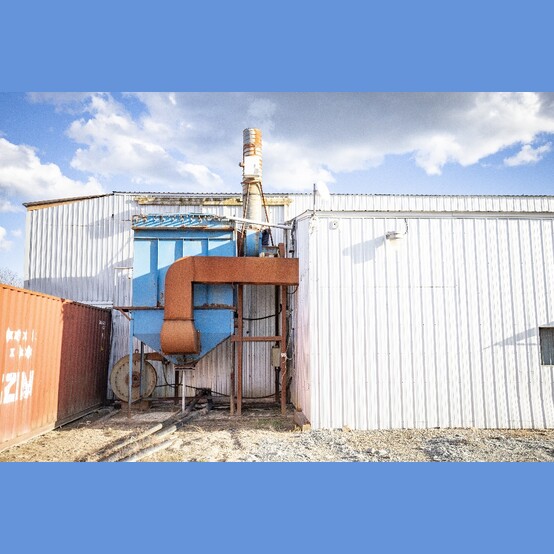

    • Sheldons 10,000 CFM Dust Collector
      • Speed: 1370 RPM
      • 30in Wide x 18in High Dirty Air Inlet
      • Discharge: 12in Dust Discharge
      • Clean Air Outlet: Dual 9in Wide x 12in High Outlets
      • Drive: 30HP Electric Motor
    • Sullair Air Compressor
      • Model: LS25S 250 AC
      • Year: 2013
      • Flow Rate: 1,075 CFM (30.4m³/min.)
      • Pressure: 125 PSI (8.6 bar)
      • Drive: 275HP, 60Hz, 3-Phase
  • Location: Eastern Canada
