Multi-Power Discovery II Diamond Core Fly Drills

Quantity: 2 Units Package

• Make: Multi-Power Products
• Model: Discovery II
• Type: Diamond Core Fly Drills
• Year: 2007
• Condition: Used, Reported in Good Condition

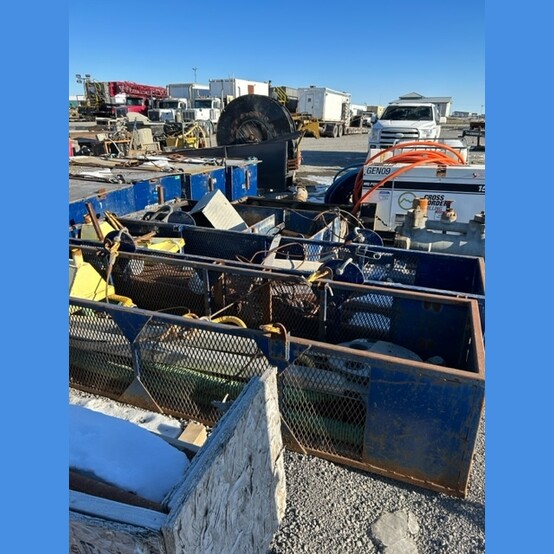

• Includes:

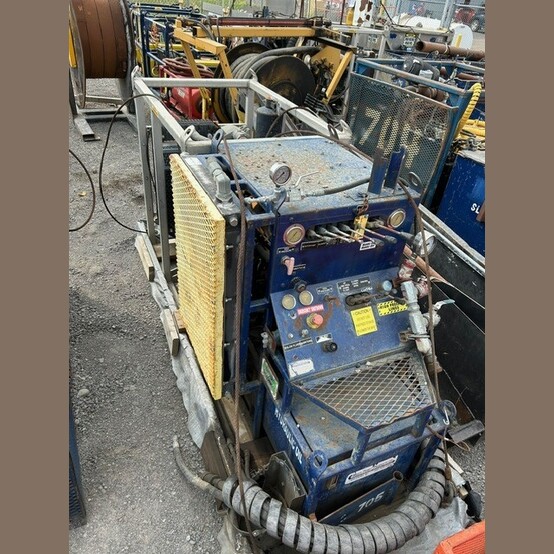

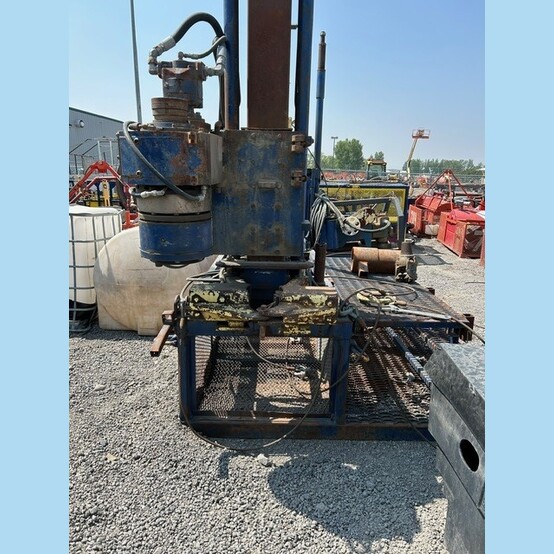

  • (1) Discovery II Drill (R704) With Stand and Motors
  • (1) Discovery II (R705) With Stand and Motors

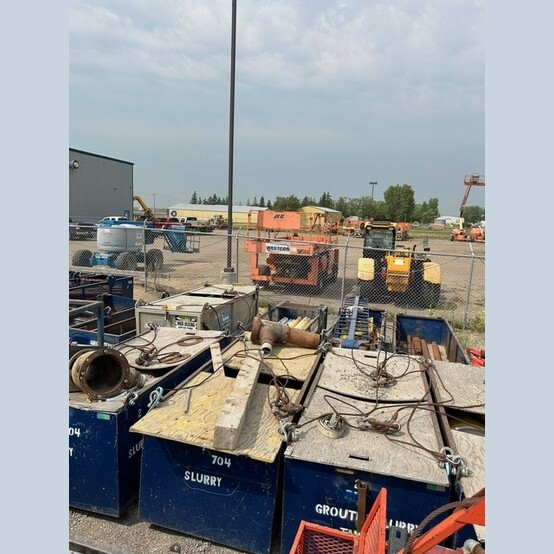

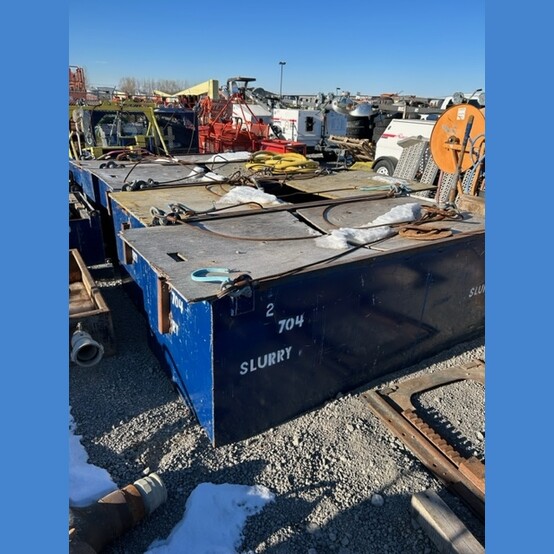

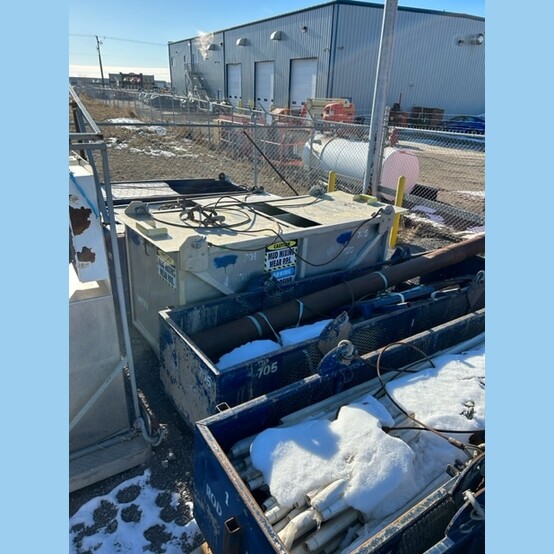

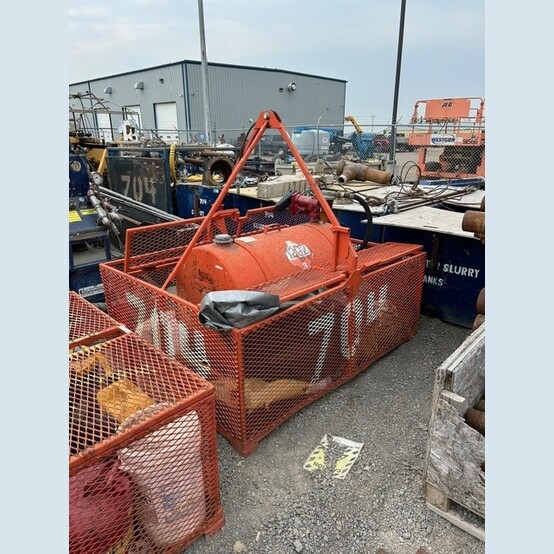

  • (6) Slurry Tanks - Used to Haul Drill Cuttings Out

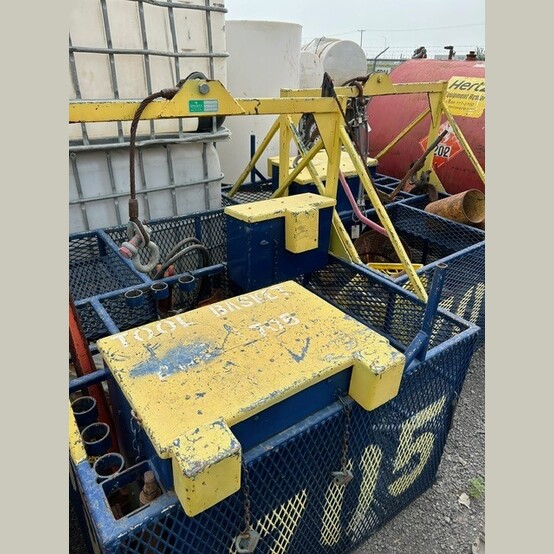

  • (2) Tool Baskets
  • (2) Supply Cabinets

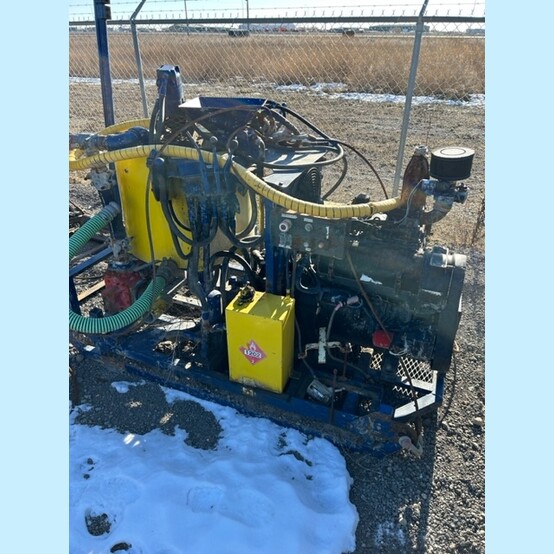

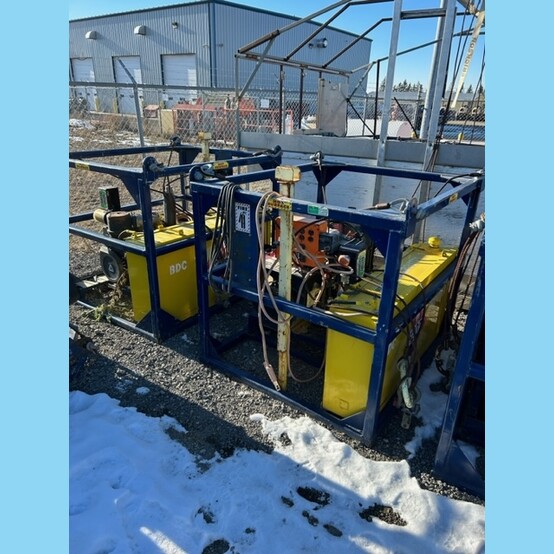

  • (2) Aux. Hydraulic Power Packs

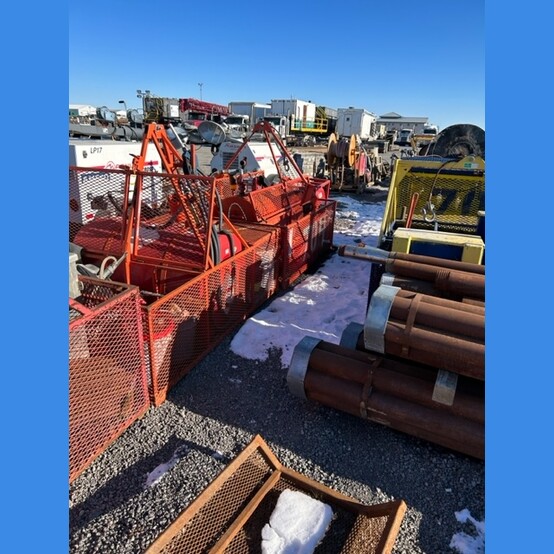

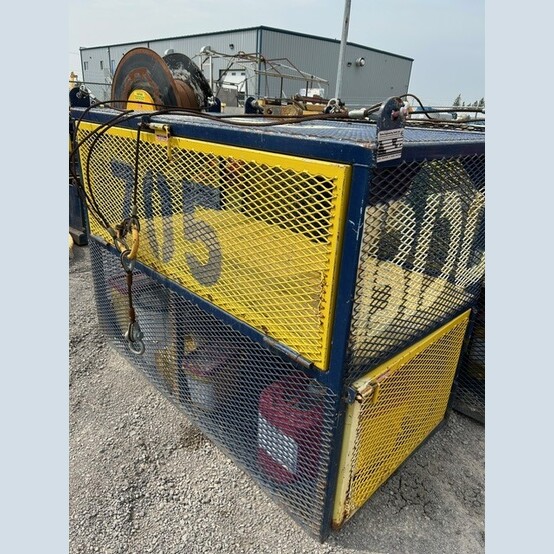

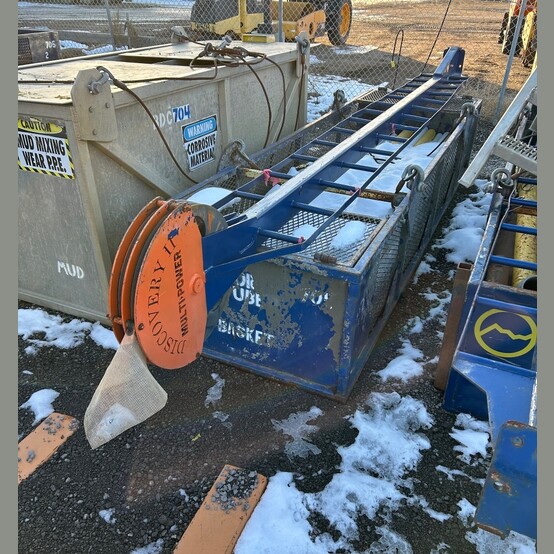

  • (4) Rod/Casing Baskets
  • (2) Drill Thru Pits
  • (2) Aluminum Mud Mixing Tanks

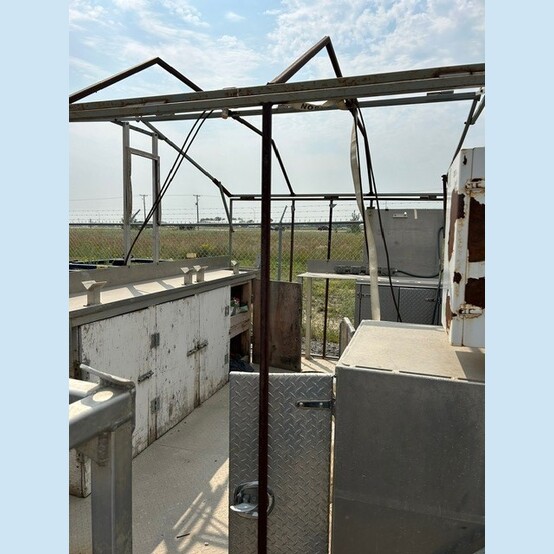

  • (2) Aluminum Core Tents
  • (1) Grouter
  • (3) Gensets
  • (4) Water Tanks
  • (2) Centerline Mud Pump and Tanks - Available for Additional Cost

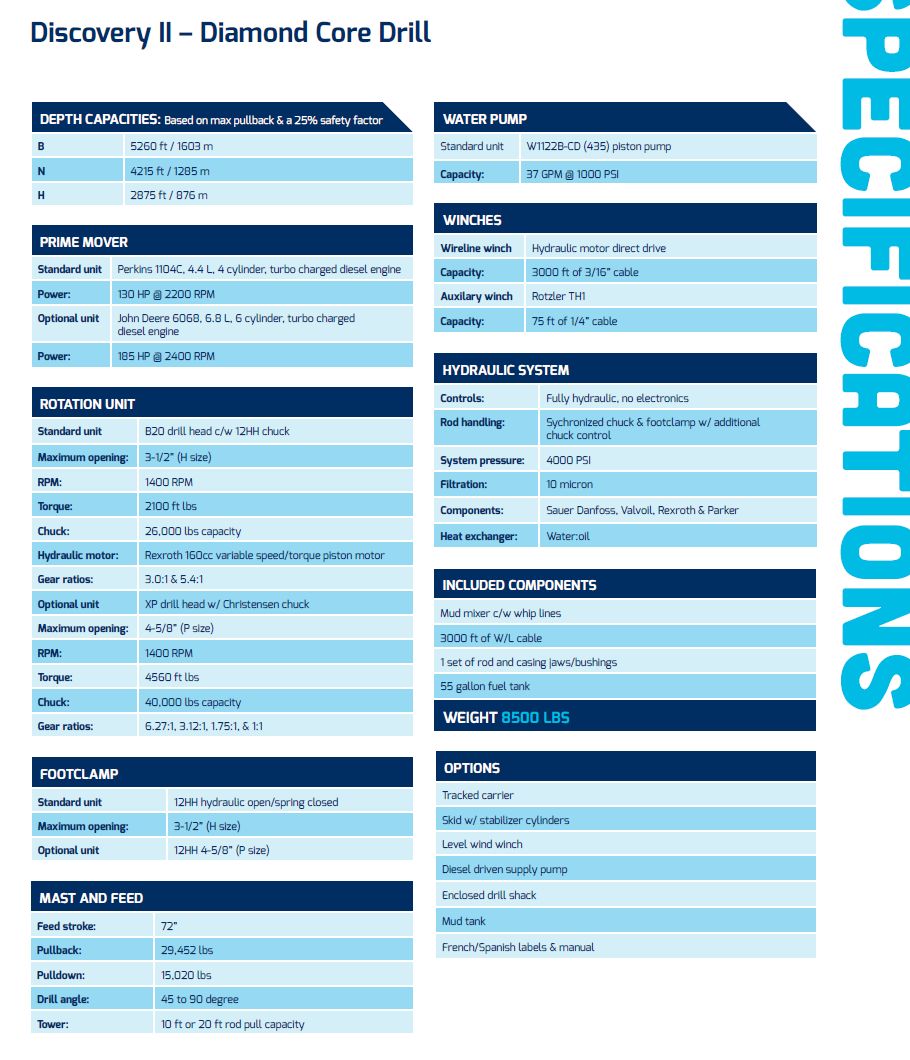

• General Model Specifications:
  • Depth Capacities: Based on Max Pullback & a 25% Safety Factor
    • B: 5,260ft (1,603m)
    • N: 4,215ft (1,285m)
    • H: 2,875ft  (876m)
  • Prime Mover:

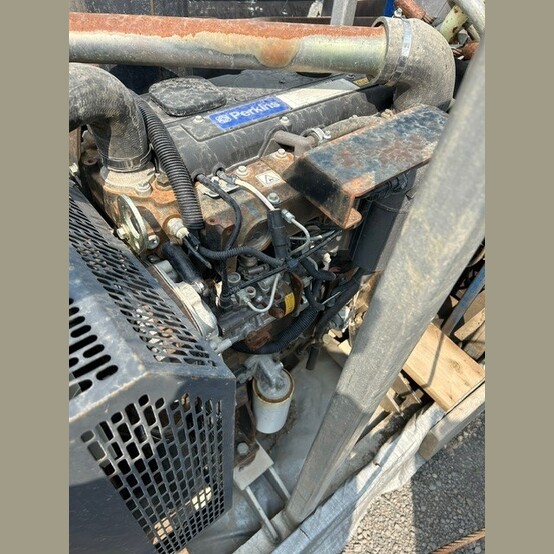

    • Standard Unit: Perkins 1104C, 4.4 L, 4-Cylinder, Turbocharged Diesel Engine
    • Power: 130HP @ 2200 RPM

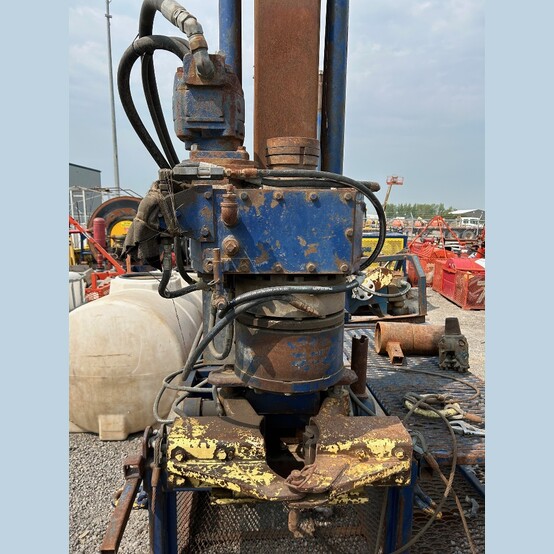

  • Rotation Unit:

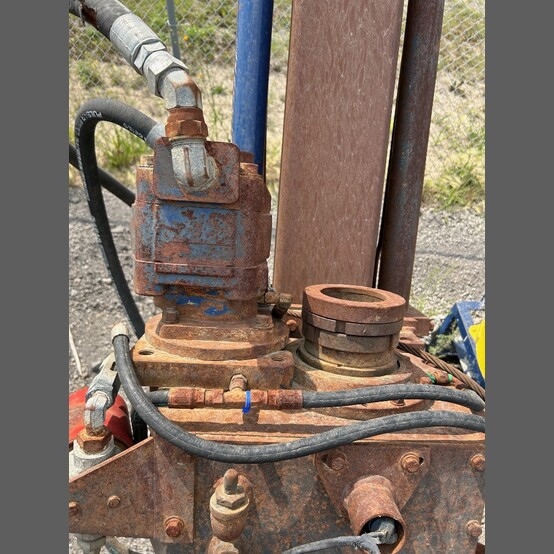

    • Standard Unit: B20 Drill Head c/w 12HH Chuck
    • Maximum Opening: 3-1/2” (H-Size)
    • RPM: 1400 RPM
    • Torque: 2100 ft-lbs.
    • Chuck: 26,000 Lbs. Capacity

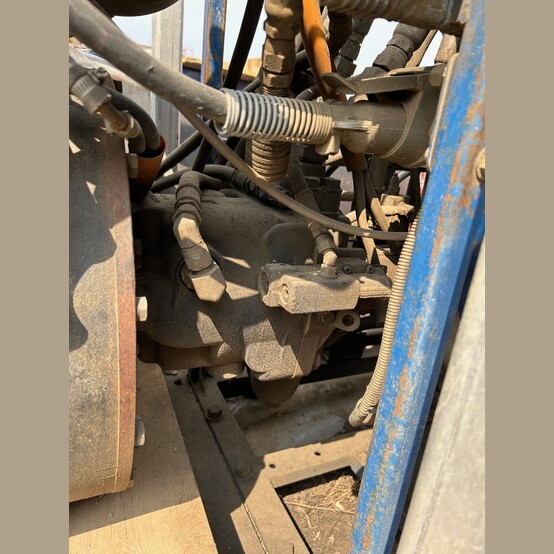

    • Hydraulic Motor: Rexroth 160cc Variable Speed/Torque Piston Motor
    • Gear Ratios: 3.0:1 & 5.4:1

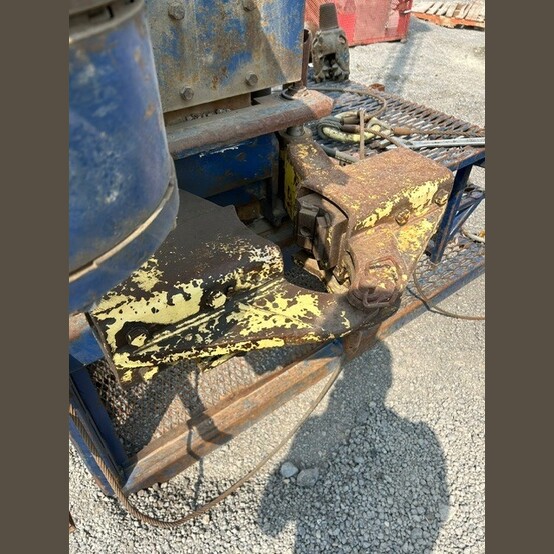

  • Footclamp:
    • Standard Unit: 12HH Hydraulic Open/Spring Closed
    • Maximum Opening: 3-1/2” (H-Size)

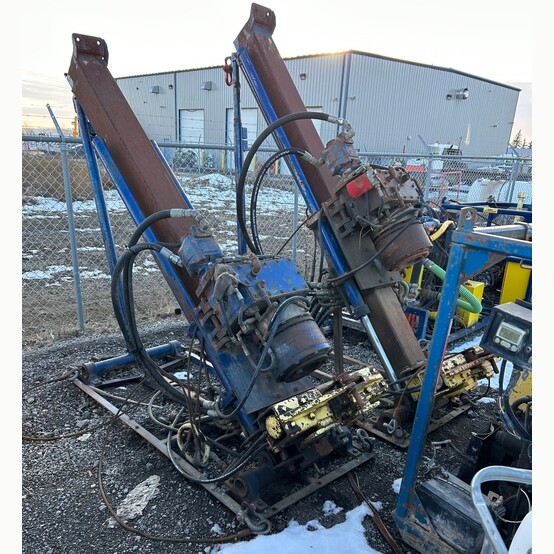

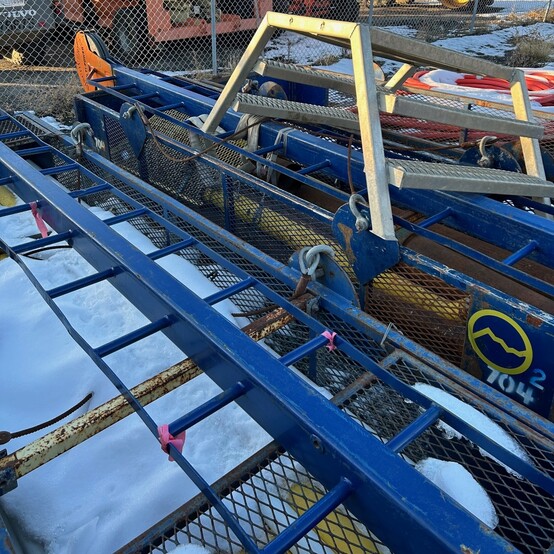

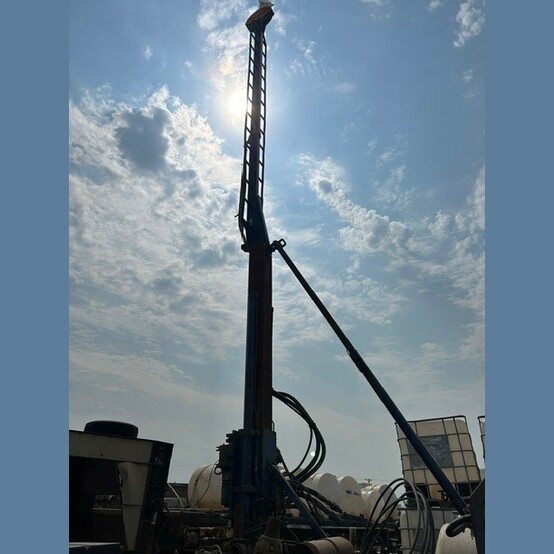

  • Mast and Feed:
    • Feed Stroke: 72”
    • Pullback: 29,452 lbs.
    • Pulldown: 15,020 lbs.
    • Drill Angle: 45° to 90° Degree
    • Tower: 10ft or 20ft Rod Pull Capacity

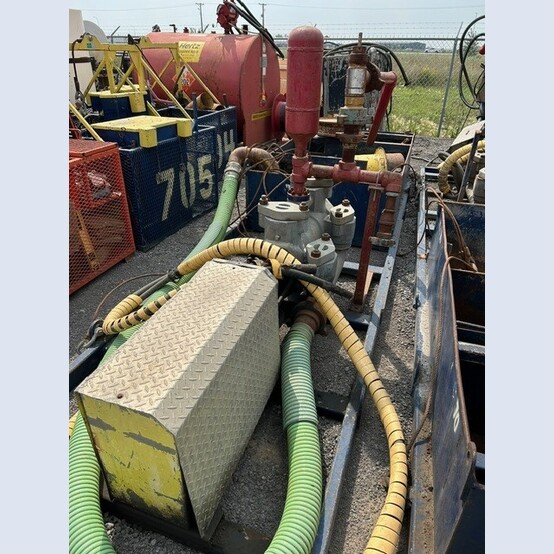

  • Water Pump:
    • Standard Unit: W1122B-CD (435)
    • Piston Pump Capacity: 37 GPM @ 1000 PSI
  • Winches:

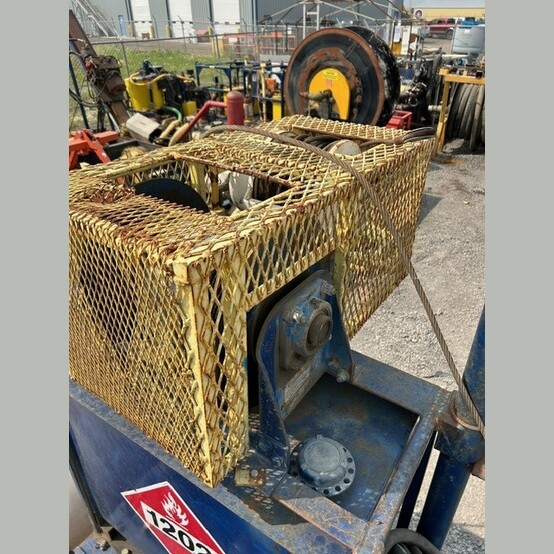

    • Wireline Winch: Hydraulic Motor Direct Drive
    • Capacity: 3,000ft of 3/16” Cable
    • Auxilary Winch: Rotzler TH1
    • Capacity: 75ft of 1/4” Cable

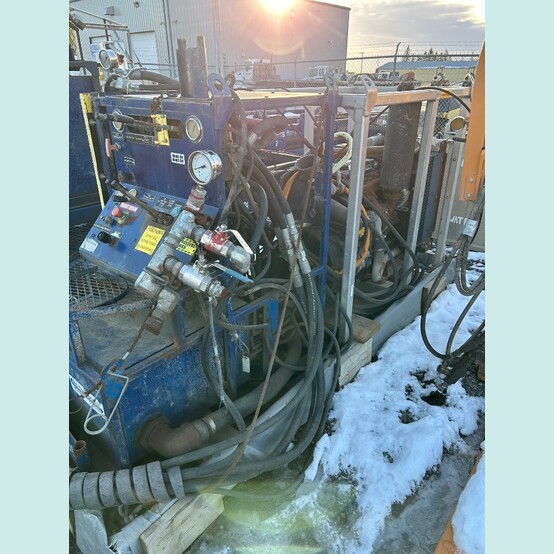

  • Hydraulic System:
    • Controls: Fully Hydraulic, No Electronics
    • Rod Handling: Sychronized Chuck & Footclamp w/ Additional Chuck Control
    • System Pressure: 4000 PSI
    • Filtration: 10 Micron
    • Components: Sauer Danfoss, Valvoil, Rexroth & Parker
    • Heat Exchanger: Water-Oil


• Location: Western Canada
