2021 Sandvik DE130 Compact Core Drill ID: 1303360

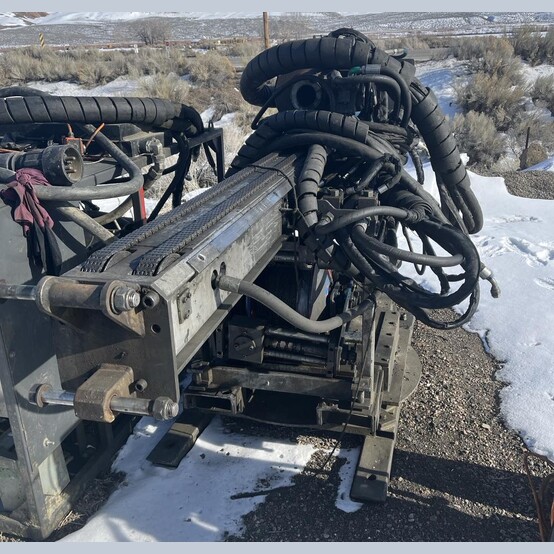

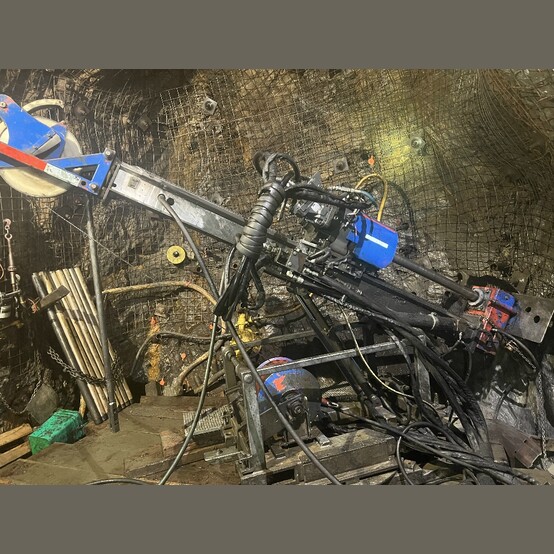

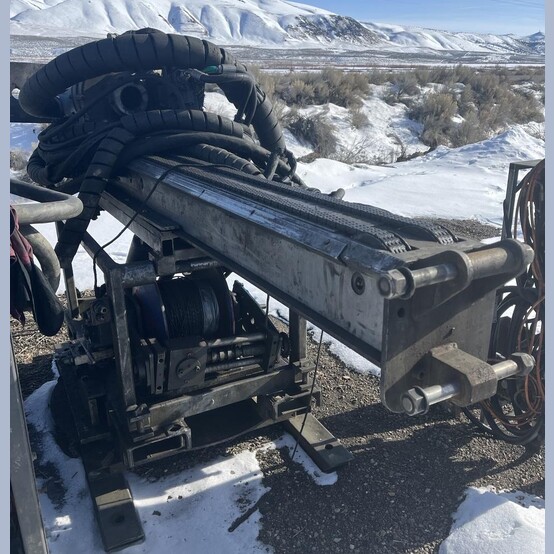

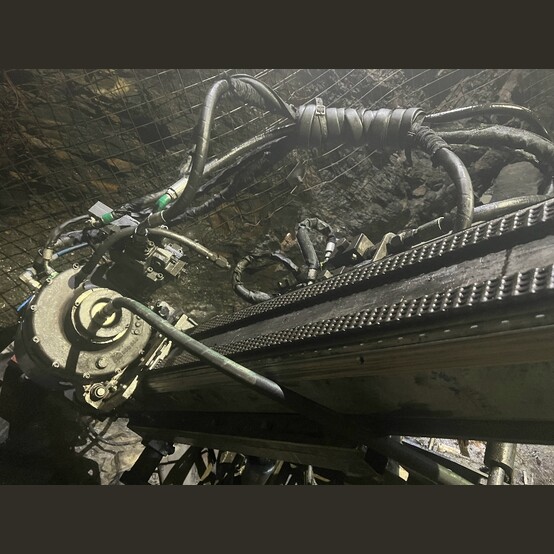

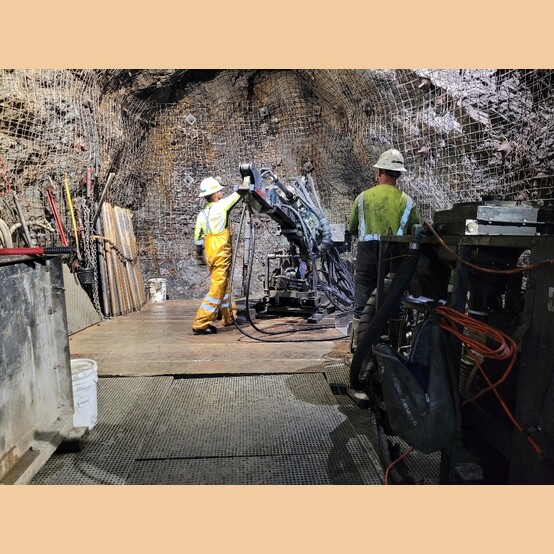

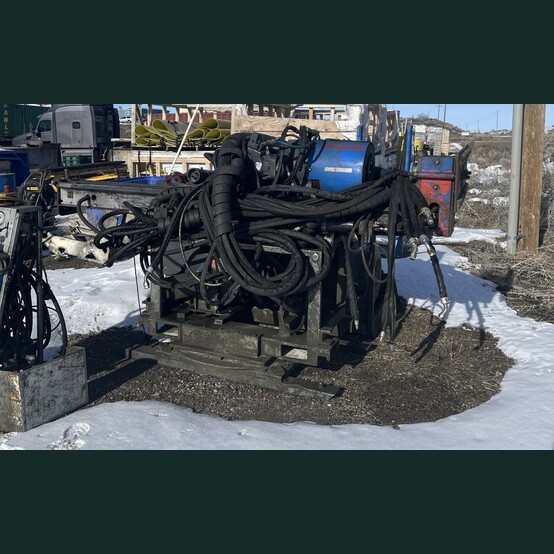

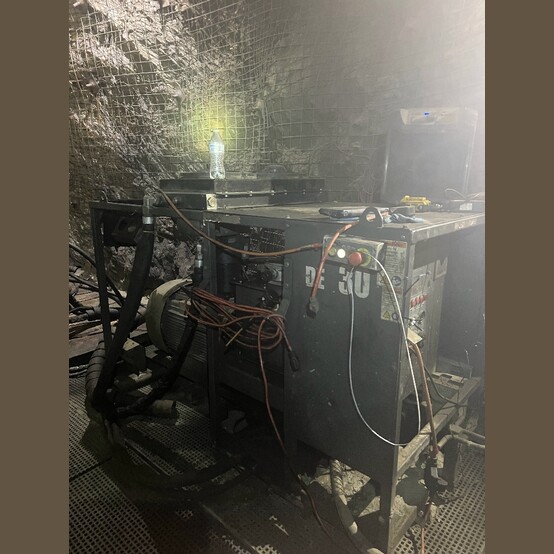

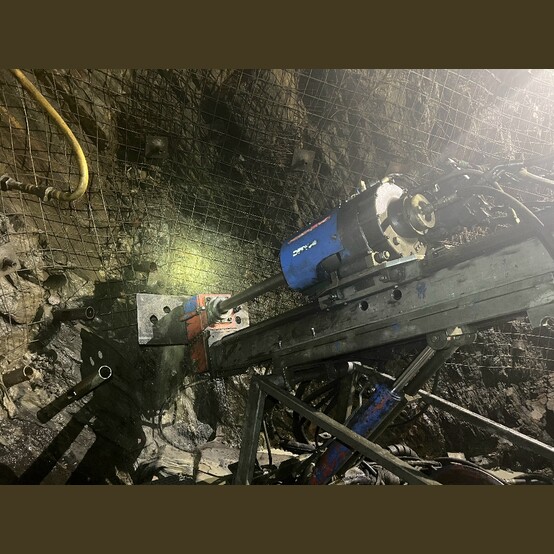

2021 Sandvik DE130 Compact Core Drill

  • Make: Sandvik
  • Model: DE130
  • Year: 2021
  • Condition: Used, Reported in Great Condition, Well Maintained

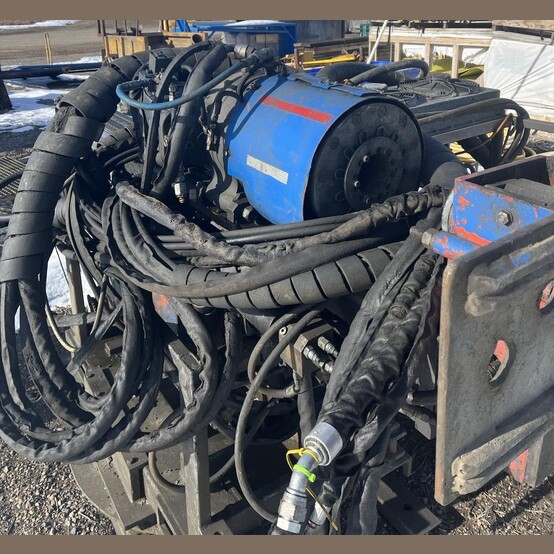

  • Brand New HQ Head
  • Heli-Portable

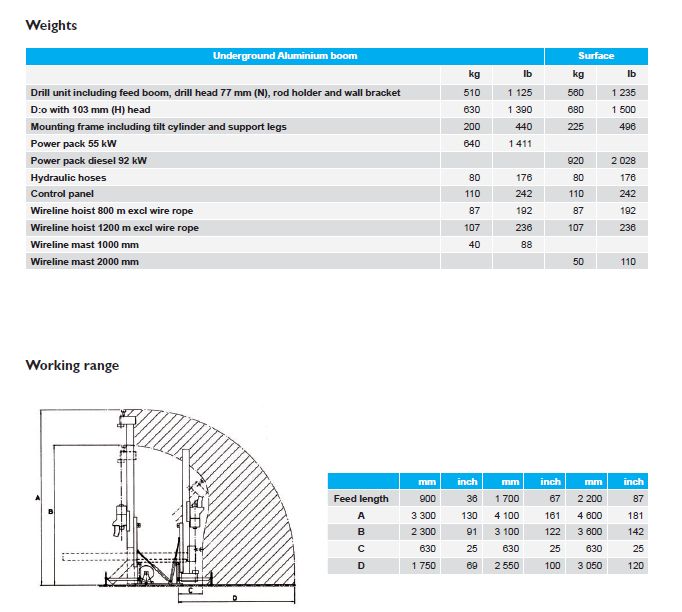

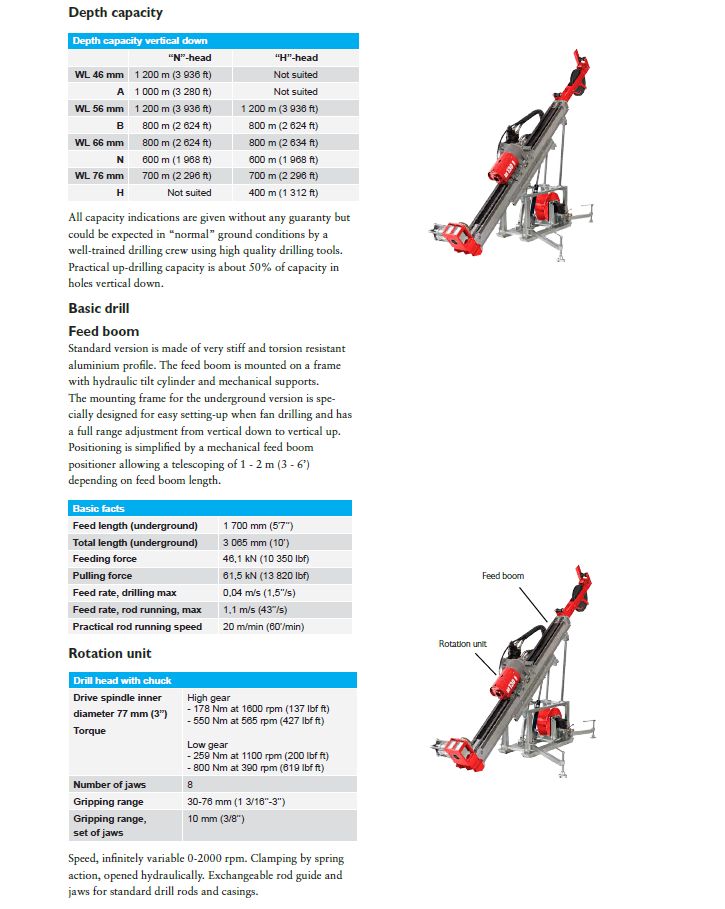

  • Technical Data
    • Depth Capacity:
      • (N): 815m (2,674ft)
      • (H): 400m (1,312ft)
      • (B): 800m (2,624ft)
      • (WL56): 1,200m (3,936ft)
    • Lift Capacity: 1280m (4200ft) with WL56 Rod
    • Rotation Unit N Size: 77mm (3in)
    • Rotation Unit H Size: 103mm (4in)
    • Torque:
      • Max Torque: (N High Speed):  550Nm (406 lbf/ft)
      • Max Torque (N High Torque): 800Nm (590 lbf/ft)
      • Max Torque (H): 940Nm (693 lbf/ft)
    • Speed:
      • Max RPM (N High Speed): 1,600 RPM
      • Max RPM (N High Torque): 1,100 RPM
      • Max RPM (H): 1,100 RPM
    • Feed Force: 46.1 kN /4.7 T (10,360 lbf)
    • Feed Rate, Rod Running Max: 1.1m/s (43in/s)
    • Feed Rate, Drilling Max: 0.04m/s (1.5in/s)
    • Pull Force: 61.5 kN /6.3 T (13,820 lbf)
    • Feed Length (Stroke): 1,700mm (5ft 7in)

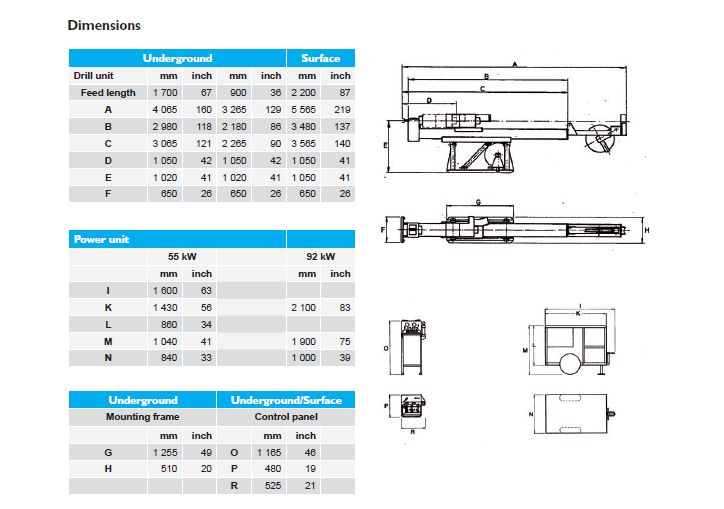

    • Total Length: 3,065mm (10ft 1in)

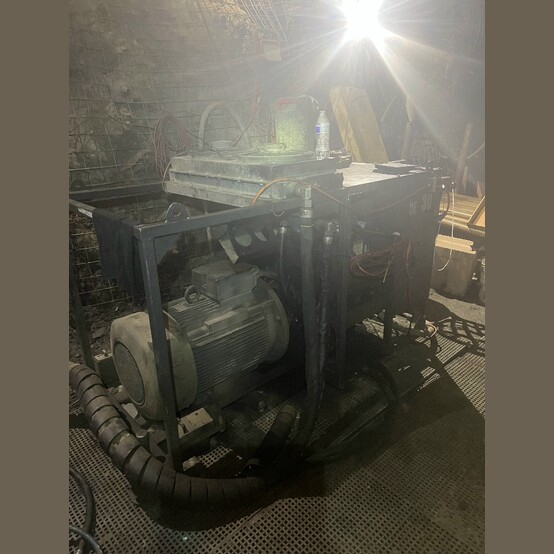

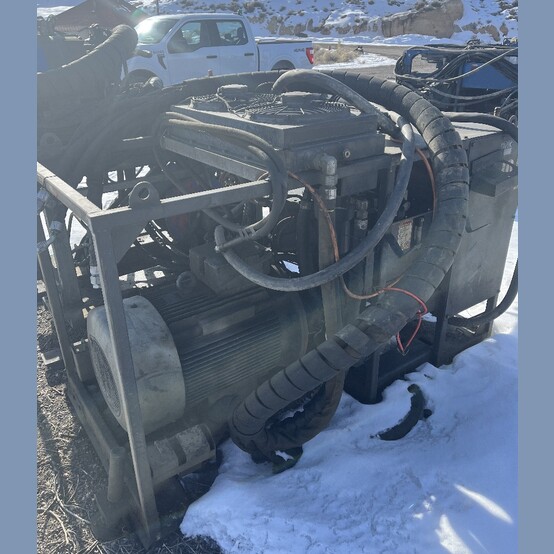

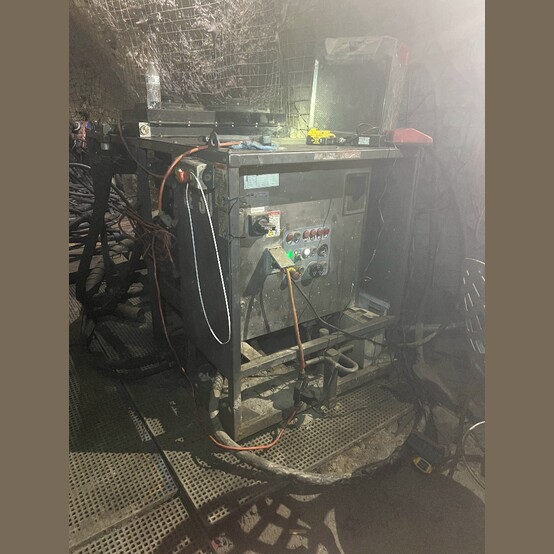

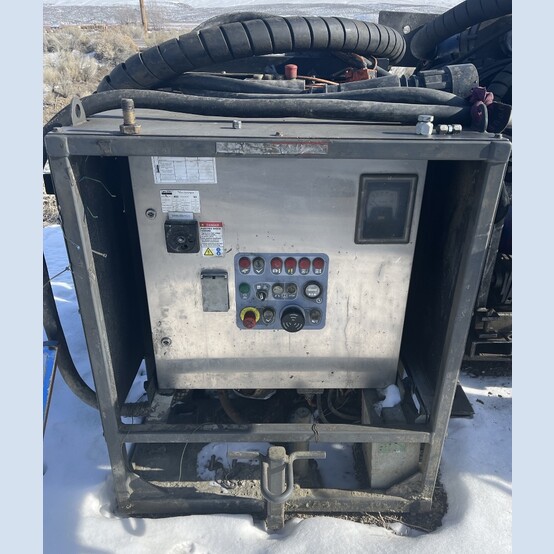

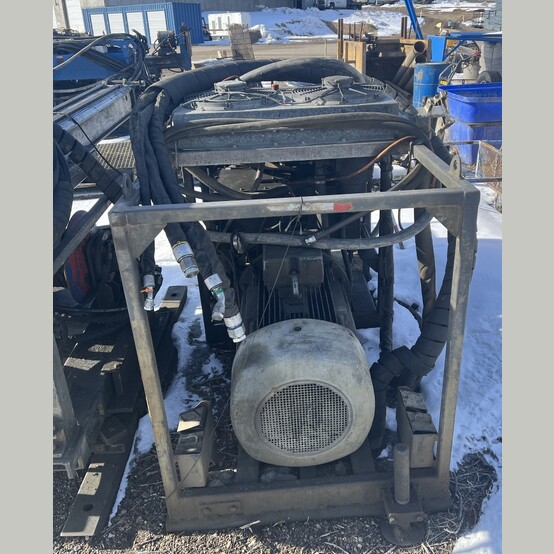

    • Power Unit: 55kW (75HP)

  • Location: Central USA
