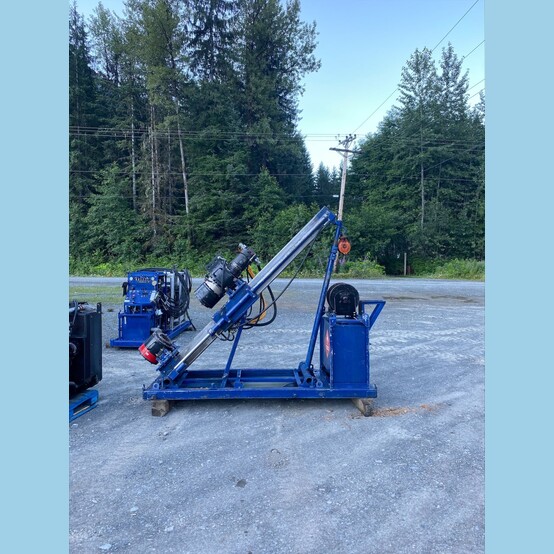

Multi-Power Discovery 2 Diamond Drill ID: 1068249


  • Multi-Power Discovery 2 Diamond Drill
  • B-15 Drill Head
  • Capable of being mounted in a skid shack
  • Heli Portable and Man Portable.
  • Drill is field ready
  • Capacity:
    • Pull back: 29452 lb @3000 psi
    • pull down: 15020 lb @3000 psi
    • Foot clamp:
      • Operation: spring closed, hydraulically opened.
      • Axial thrust capacity: 26000 lbs.
    • Drilling depth
      • (B) 6190ft (1635m)
      • (N) 4814ft (1271m)
      • (H) 3058ft (807m)
  • Comes as complete power pack with
    • 4cyl. Perkins
    • feed frame with B-15 top drive head
      • High gear 3.0:1.
        • Torque: 1165 ft lbs, 333 rpm @ 3000 psi.
      • Low gear 4.4:1.
        • Torque: 1708 ft lbs, 227rpm a 3000 psi.
    • 12 HH Bayles foot clamp.
  • This package also comes with
    • spare 4cyl. Perkins
    • 6cyl Perkins's quantity of spare filters,  starter, Alta Etc.
  • Location: British Columbia, Canada.

MPP’s flagship diamond drill, the Discovery II was developed with portability and production in mind. The rig is both compact and powerful. The Discovery II’s modular design allows for efficient and safe helicopter transport. The rig’s small footprint and available track package allow the Discovery II to access remote drill sites most large rigs cannot reach.

View more Diamond Core Drills.
