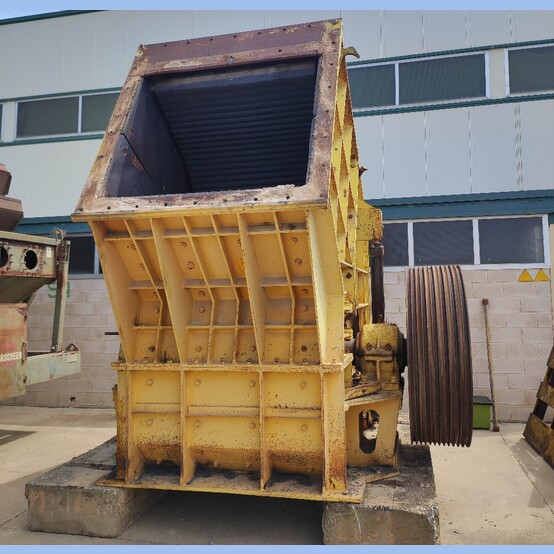

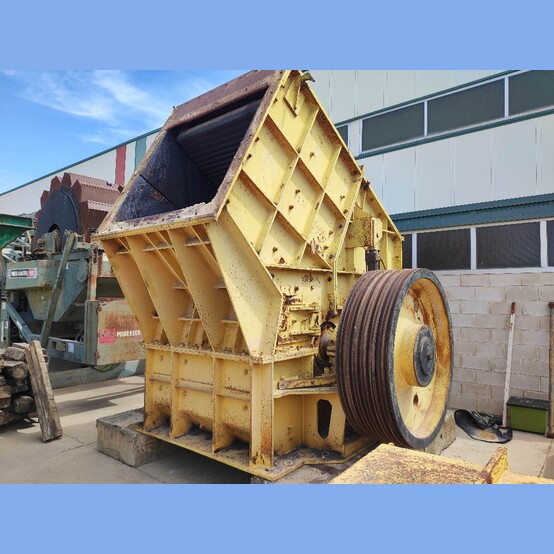

Laron IM13R Primary Impact Crusher
- Make: Laron
- Model: IM13R
- Series: IM
- Type: Primary Impact Crusher
- Condition: Used, Reported in Good Condition, Ready-to-Work
- Feed Opening: 61.4in x 55.1in (1,560mm x 1,400mm)
- Capacity: 150/300 Tonnes Per Hour
- Stones Admitted: 1,000 kg
- 3 Impact Plates
- Drive: Helmke Electric Motor
- Power Output: 200kW (268HP)
- Speed: 1490 RPM
- Voltage: 400/690 Volt
- Current: 332/183 Amps
- Frequency: 50Hz
- Overall Dimensions:
- Length: 138.7in (3,525mm)
- Width: 126.7in (3,220mm)
- Height: 145.5in (3,695mm)
- Weight: 41,900 kg
- Location: Spain
