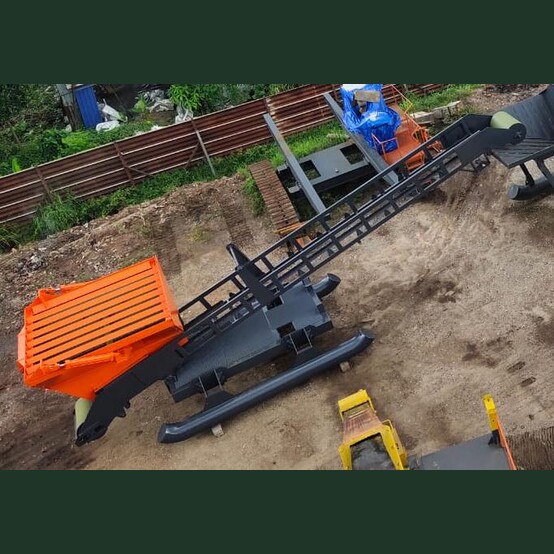

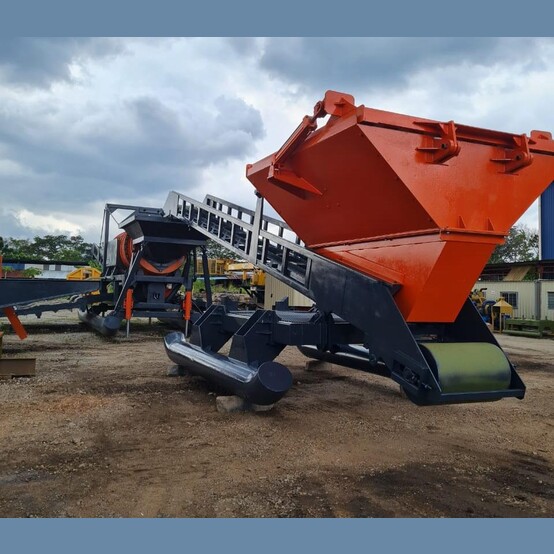

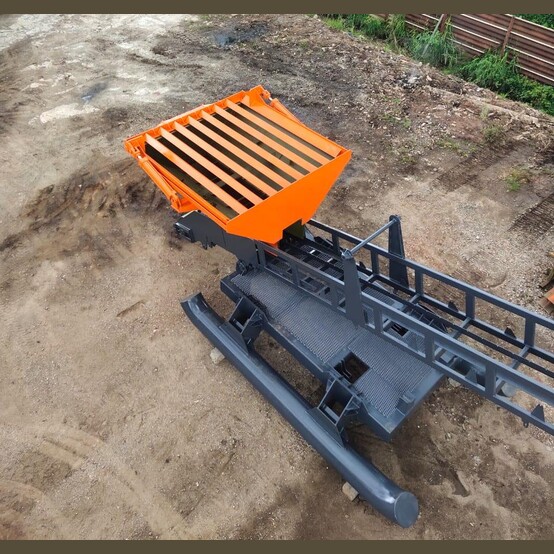

FB200 20m³ Belt Feeder

• Model: FB200
• Year: 2022
• Condition: New
• Bin Capacity: 20m³
• Estimated Max Capacity: 200 TPH
• Hopper Feed Area: 118in x 118in (3,000mm x 3,000mm)
• Belt Width: 900mm (35.4in)
• Conveyor Length: 12m (39.5ft)
• Discharge Height: 3.6m (11.8ft)
• Operating Weight: 7 Tons
• Optional Manual Dumping Grizzly Available
• Powered via Diesel Power Pack
  • 630CC Hydraulic Motor
  • Gearbox Spec: 1in Chain Drive
• Mounted on Large Diameter Skid


• Overall Dimensions:
  • Length: 39.4ft (12,000mm)
  • Width: 13.1ft (4,000mm)
  • Height: 8.2ft (2,500mm)

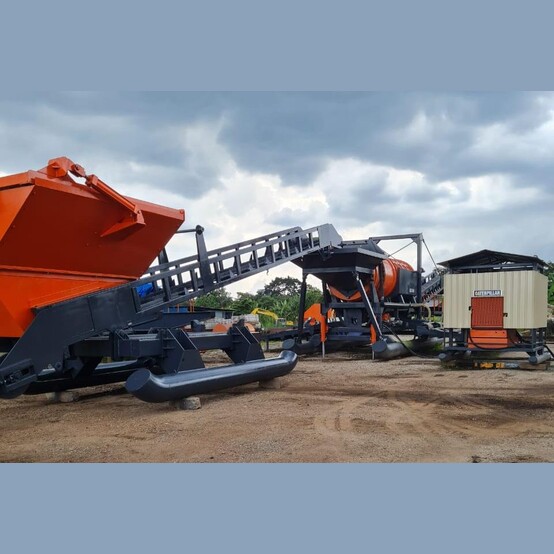

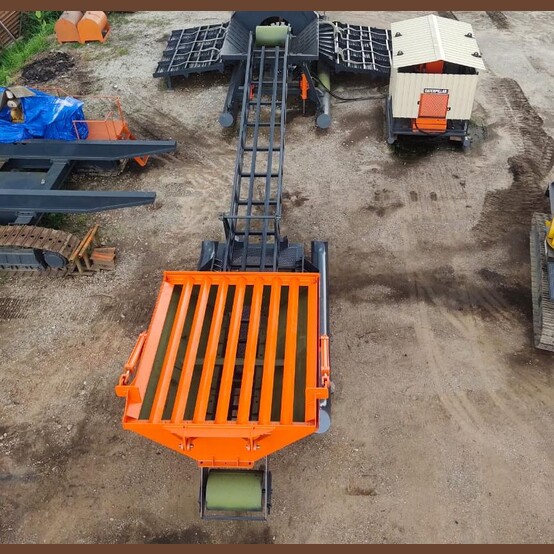

Ideal Feeder Option for ST300S Scrubber Trommel Wash Plant and ST200T Scrubber Trommel Wash Plant
