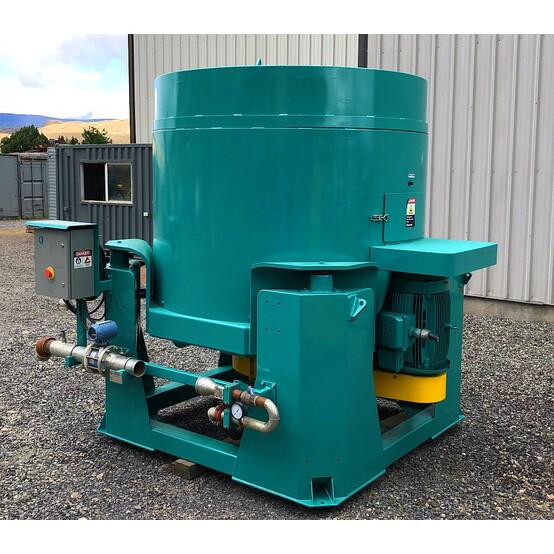

• Model: KCXD48
  • Complete with:
  • New G5 Bowl in 2018
    • Only used approx. 3 months
    75hp Drive Motor
    • 460 Volt
  •  Variable Frequency Drive
  • Water flow meter
  •  Specifications:
    • Solids Feed Capacity: 200-400 tonnes/hr (220-440 tons/hr)
    • Fluidization Water Required: 41-61 m³/hr (180/270 USgpm)
    • Max Volumetric Throughput: 545 m³/hr (2400 USgpm)
    • Active Capture Area: 13,941 cm² (2,161 in²)
    • Feed Size: Max. 6mm (1/4 in.) - Recommended 1.7mm (10 Mesh)
    • Concentrate Volume: 20 L (1,220 in³)
    • Concentrate Weight: 45-50 kg (100-110 lbs)
    • Concentrator Net Weight: 5,680 kg (12,500 lbs)
  • Location: Western Canada
