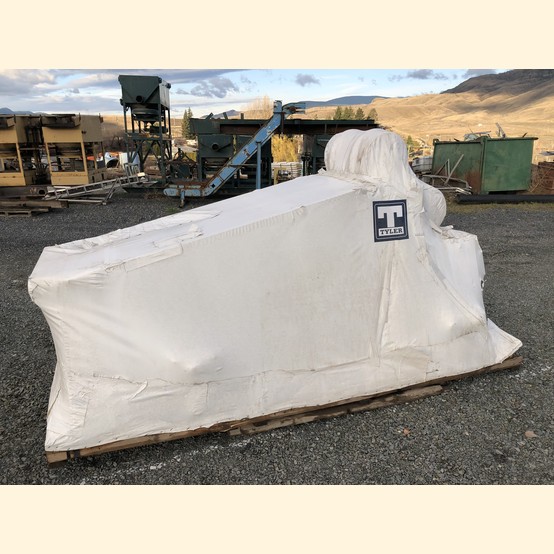

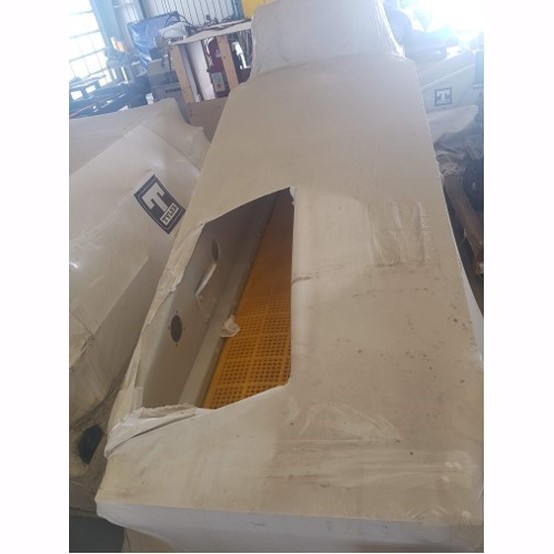

Haver Boecker Tyler 3ft. x 10ft. UML-Class 2 Deck Rinse Screen ID: 398277


Application Data:

  • Maximum Material Weight: 68 kg
  • Screen Vibrating Weight: 2132 kg for Balancing
  • Screen Total Weight: 2312 kg for Lifting
  • Unit Weight: 2721 kg
  • Motor Speed: 1200 rpm
  • Motor Power: 7 Hp
  • Motor Voltage / Freq / Phases: 480 V /60 Hz/ 3 Phase
  • Number of Motors: 2
  • Motor Type/ Total HP: Unbalanced OLI Motor / 13.42 HP
  • Media Type: Tyrethane
  • Top Deck Media Aperture: 15mm x 15mm / 1in. THK
  • Bottom Deck Media Aperture: 0.079in. x 0.079in./ 0.047in.THK
  • Opening Type: Square

Includes:

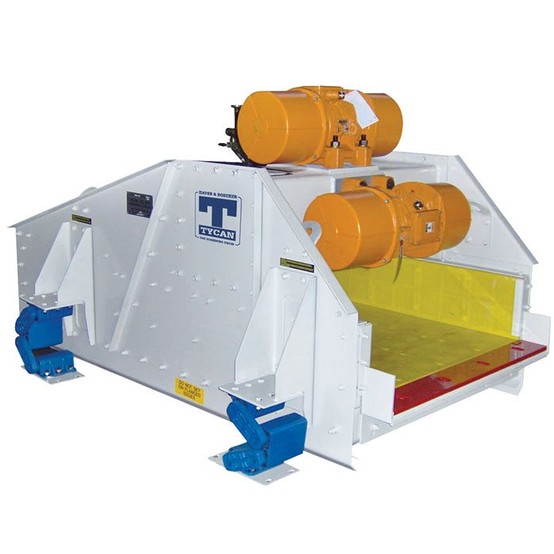

  • 1: UML-Class (unbalanced motor) 3ft. x 10ft. 2 Deck Horizontal Vibrating Screen set up for side tensioned media
  • 1: Spray System
    • Includes 2 Branch Lines with 2 Nozzles (Per Deck)

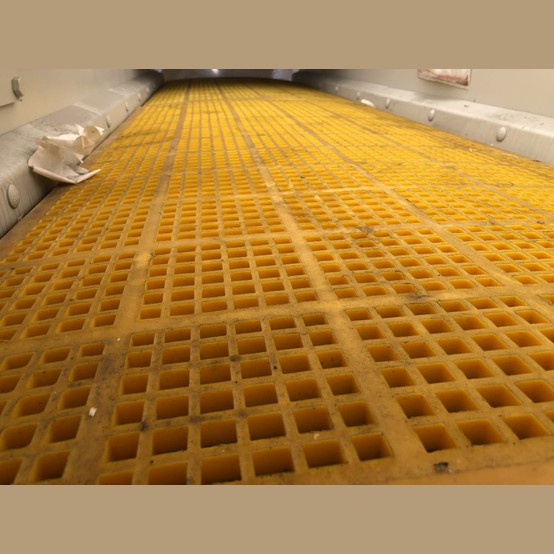

  • 1: Deck 1 Media:
    • Ty-Max (Side Tensioned Polyurethane)
    • 2 Sections
    • 34.5in. OH x 60in.
    • 15mm Square Openings
    • 1in. thickness

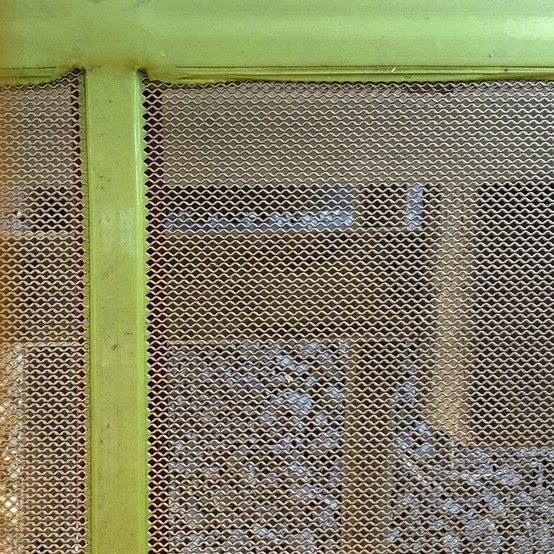

  • 1: Deck 2 Media:
    • Flex-Mat D (Side Tensioned T304)
    • 2 Sections
    • 34.375in. OH x 60in. with Overlap
    • 0.079in. Openings
    • 0.047in Wire Diameter
  • Location: Western Canada
