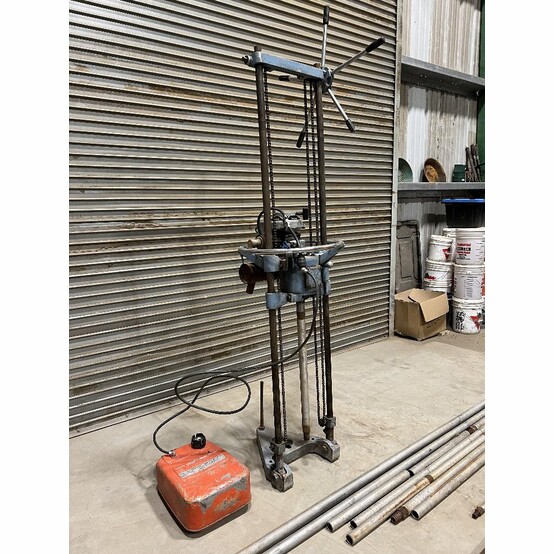

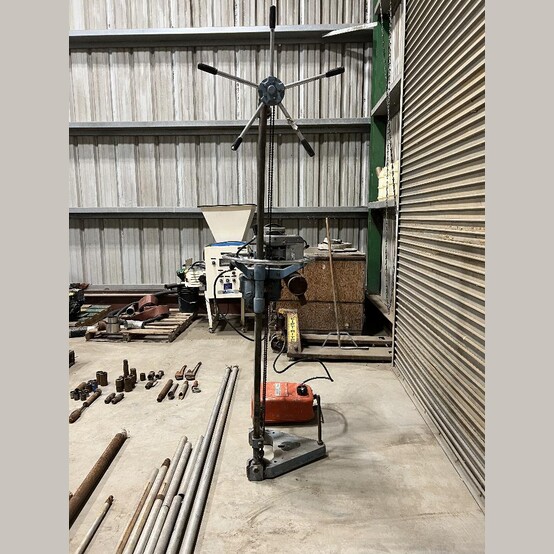

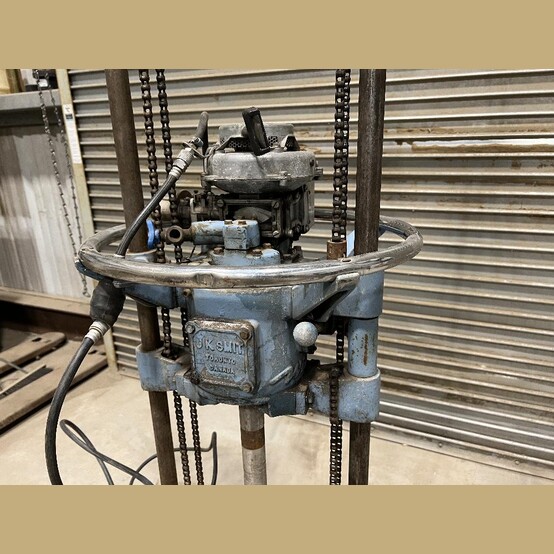

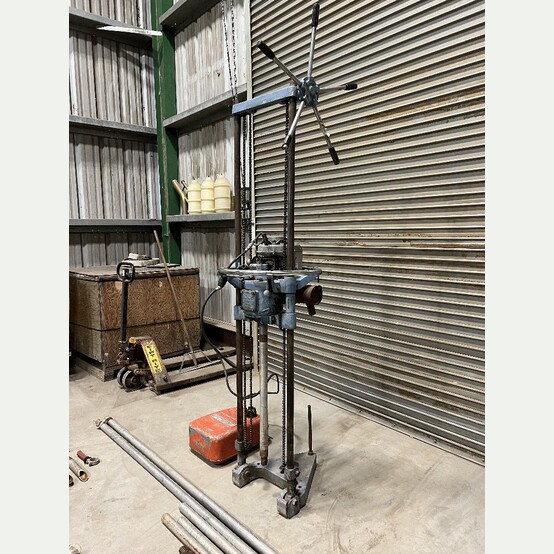

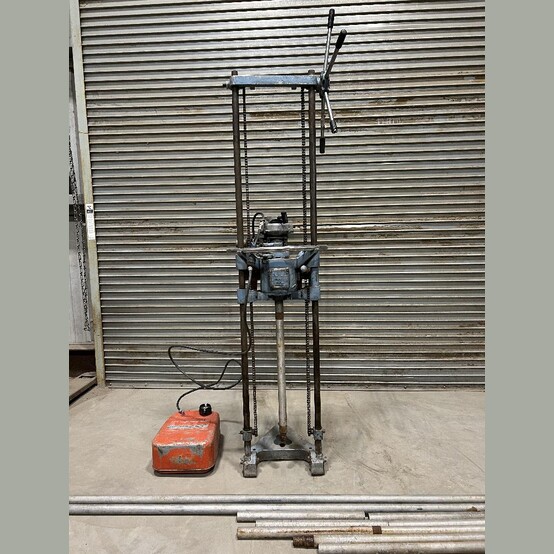

JKS Winkie GW-15 Diamond Core Drill

• Make: JKS-Boyles
• Model: Winkie GW-15
• Type: Diamond Core Drill
• Style: Man Portable
• Condition: Used Condition

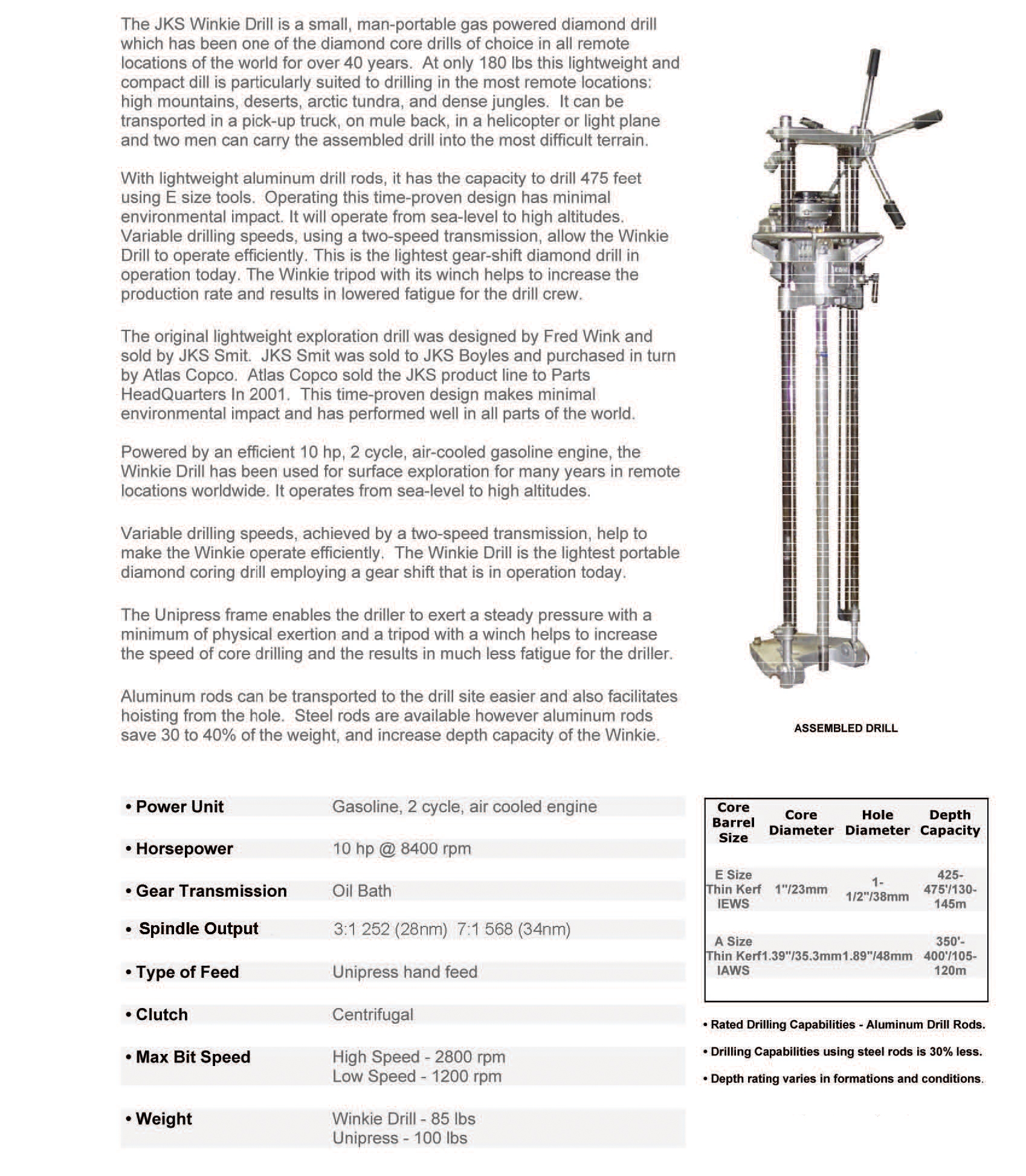

• View Spec Sheet Below

• General Model Specifications:

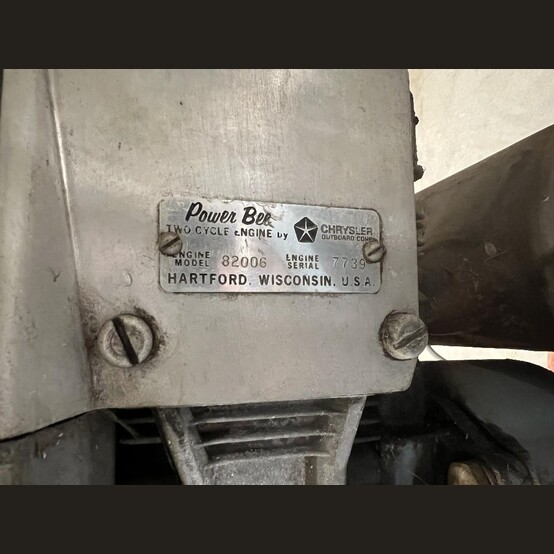

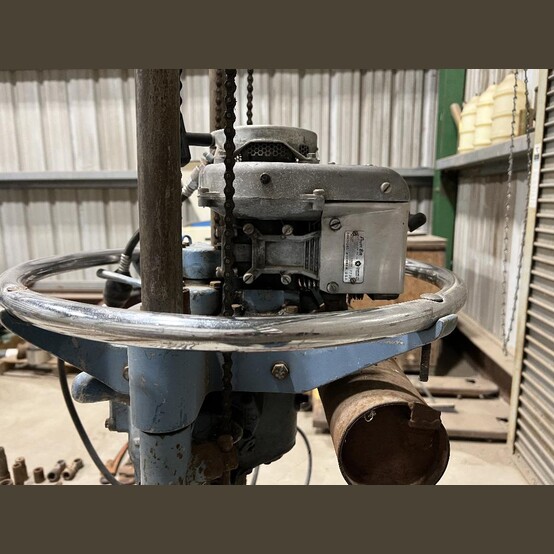

  • Power Unit: Gasoline, 2-Cycle, Air Cooled Engine
    • Output: 10HP @ 8400 RPM
  • Transmission: Oil Bath Gear Shift Transmission
  • Clutch: Centrifugal
  • Unipress Hand Feed
  • Max Bit Speed:
    • Low Speed: 1200 RPM
    • High Speed: 2800 RPM
  • Weight:
    • Drill: 85 lbs.
    • Feed: 100 lbs.


• Hole Depth Capacity: Core Size - E-Core
• Core Barrel: E-Core Thin Kerf IAWS
• Core Diameter 1in (23mm)
• Hole Diameter 1-1.5in (38mm)
• Depth: 425-475ft (130-145m)


• Hole Depth Capacity: Core Size - A-Core
  • Core Barrel: A-Core Thin Kerf IAWS
  • Core Diameter 1.39in (35.3mm)
  • Hole Diameter 1.89in (48mm)
  • Depth: 350-400ft (105-120m)

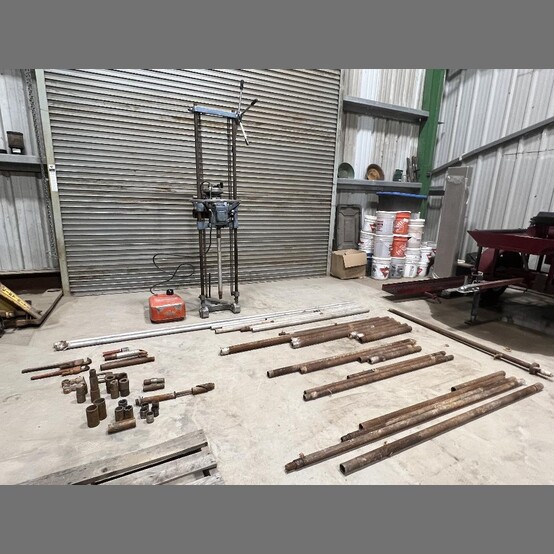

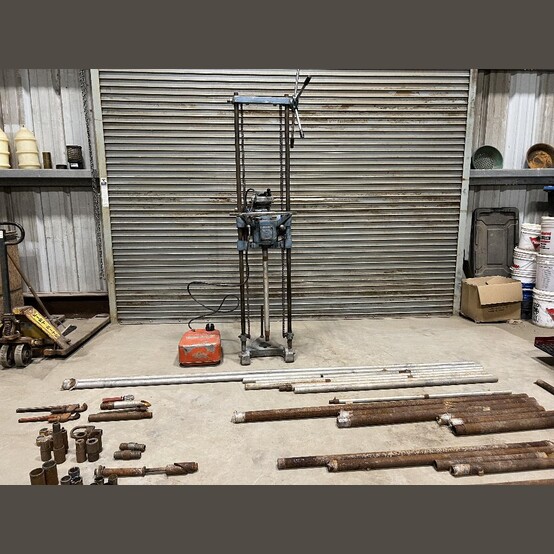

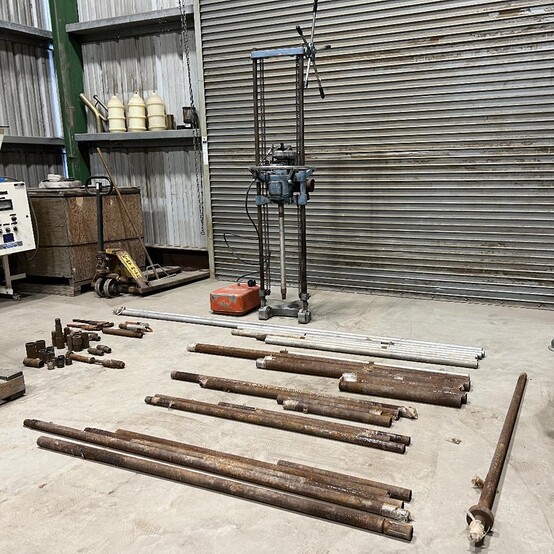

• Includes:

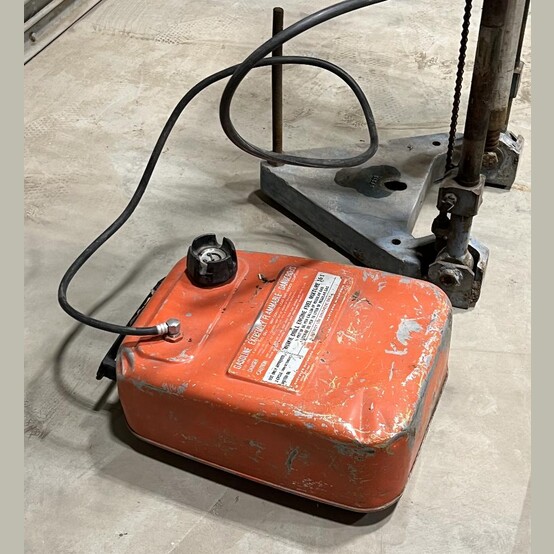

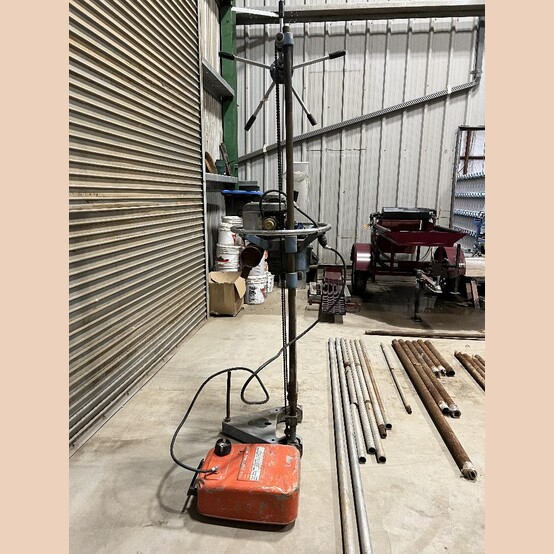

  • Winkie Fuel Tank

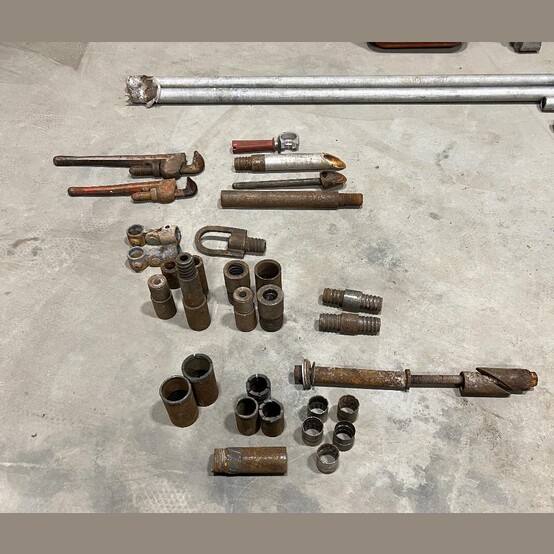

  • Various Bits and Tooling, Adaptor Subs

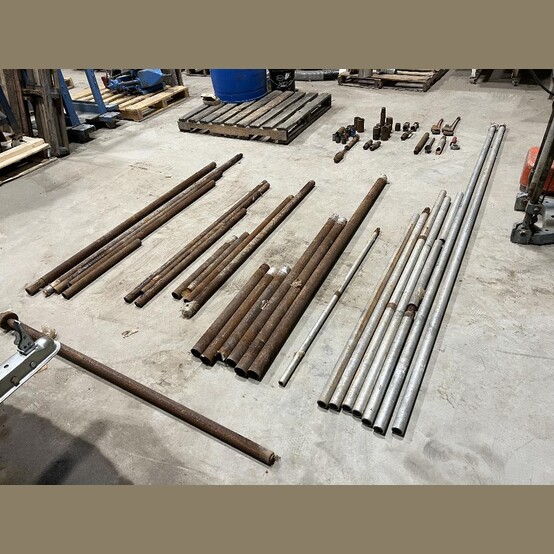

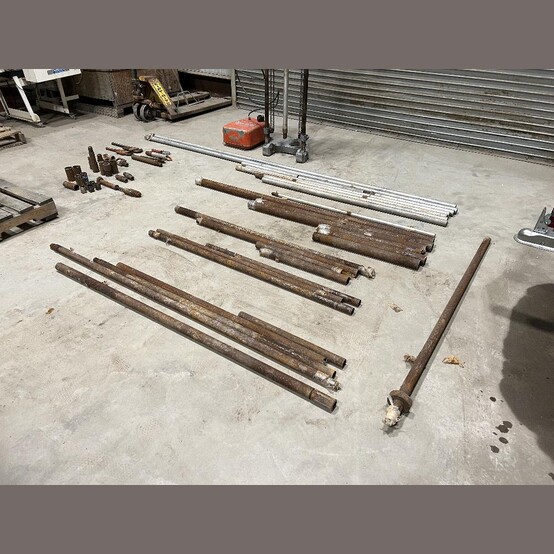

  • Aluminum AW Rods
    • (2) 10ft
    • (2) 5ft
    • (9) 2ft
  • Steel AW Rods
    • (1) 6ft
    • (2) 5ft
    • (1) 4.5ft
    • (1) 2ft
    • Complete with Couplings
  • Core Barrel: A-Core
    • (2) 5ft
    • (1) 4ft
    • (2) 2ft
  • Core Tube: A-Core
    • (3) 4.5ft
    • (1) 3.5ft
  • AW Casing
    • (1) 6ft
    • (2) 4ft
    • (3) 2ft


• Location: Savona, British Columbia, Canada
