32in x 32in 16-Plate Filter Press

• Make: OnTrac Environmental Inc.
• Type: Filter Press
• Style: Plate Filter
• Condition: Used Condition
  • Previous Usage: Fine Particle Removal During Environmental Clean-Up of Water for a Reclamation Project
• Number of Plates: 16 Plates
• Size of Plates: 32in x 32in
• Plate Thickness: 2.5in
• Capable of Using Filter Cloths Down to 2 Microns (No Cloths Included)
  • Filtrate Slurry Feed Rates Dependent Upon Size of Filter Cloths
• Press Uses Air and Hydraulics for Operation
  • Air Requirements: 80-100 PSI Air Supply - Compressor Required (Not Included)
  • Hydraulic Closing: Operates at Approx. 2,200 PSI Plate Closure Pressure
• Inlet/Outlet: 2in Dia. with Camlock Fittings and Valves
• Discharge Conveyor: 18in Wide x 16.5ft Long
  • Powered by a Explosion-Proof Air-Drive Motor
• Fully Operated by Control Panel fitted with Switches and Pressure Gauges for Press and Conveyor Operation
• Stainless Steel Air-Over-Hydraulics Pump with all Stainless Steel Lines

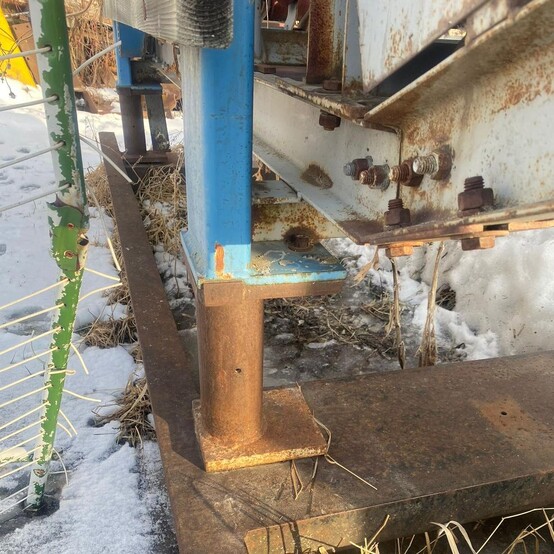

• Stands on (4) Legs with (2) Supports for Conveyor
• Resting on Steel Skid for Transport


• Overall Dimensions:
  • Length: 220in (120in Filter Press, 100in Conveyor)
  • Width: 42in
  • Height: 80in
  • Weight: 10,000 Lbs. (Approx.)


• Location: Western Canada
