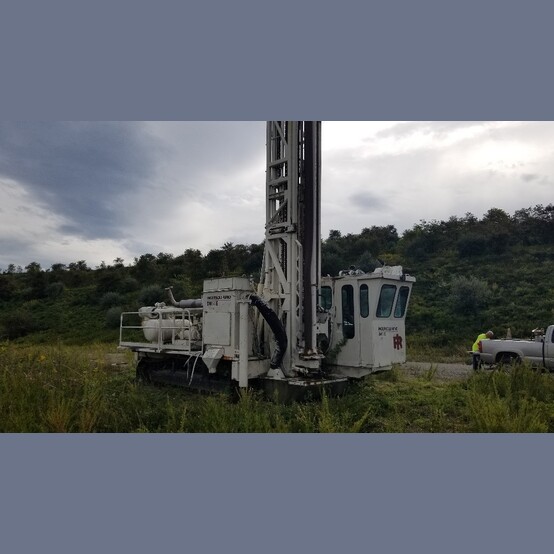

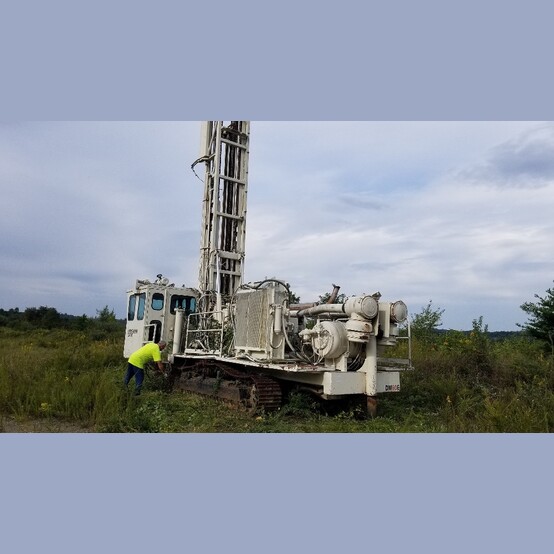

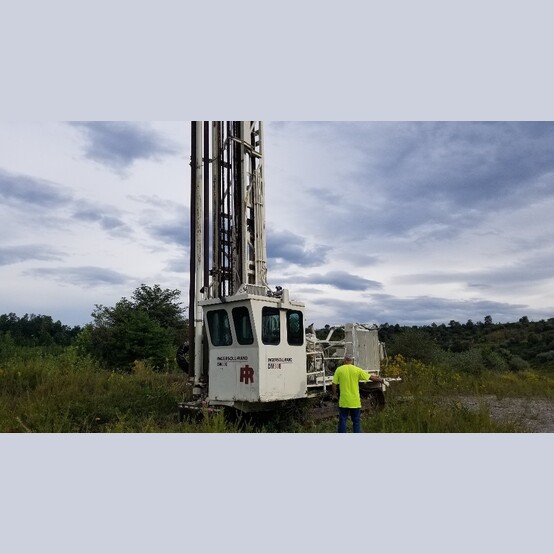

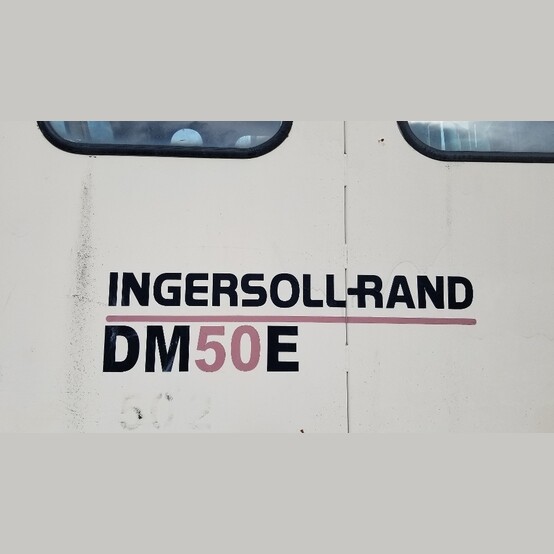

Ingersoll-Rand DM50E Crawler Vertical Drill

• Make: Ingersoll-Rand
• Model: DM50E
• Year: 1991
• Hours: 4,459 Since Rebuild by Southern Rotary Drill


• Bit Load: 50,000 Lbs. (22,700 Kg)
• Hole Diameter: 7.875" - 9.875" (200-250mm)
• Drill Depth: 180ft (55m) with Optional 30ft Drill Pipe Change and 5-Pipe Carousel
• Rotation Speed: 0-200 RPM
• Max Operating Air Pressure: 150 PSIG
• Safety Valve Setting: 175 PSIG


• Rotary Head:
  • Single Motor Spur Gear Head
  • 7,200 ft-lb.

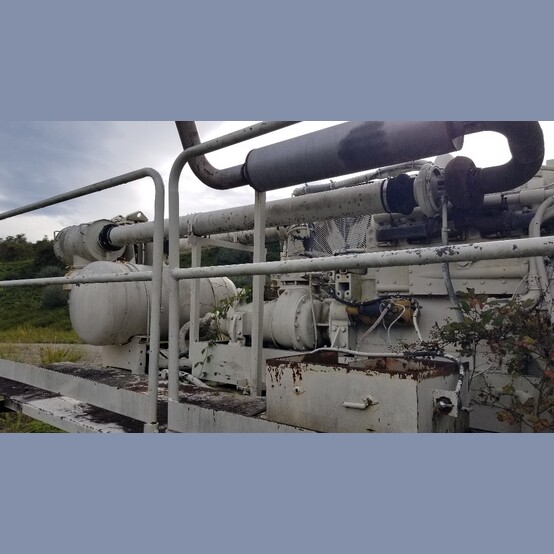

• Compressor: Ingersoll-Rand XL1200


• 3 Pieces of Drill Steel Included

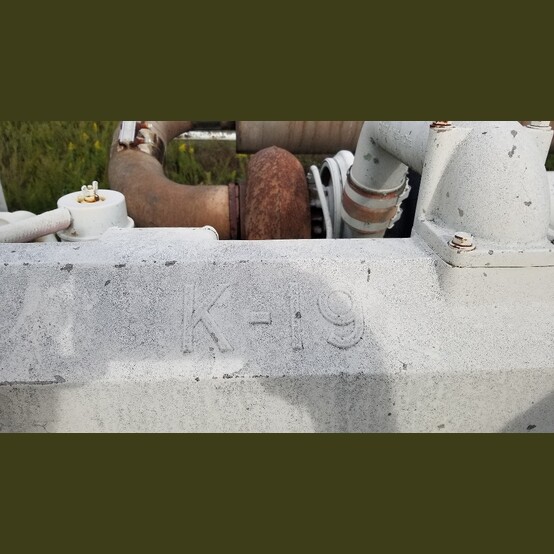

• Engine: Cummins KT19
  • 1150 Cubic Inch
  • Diesel Engine


• Location: Mideast USA
