Graphite Processing Plant ID: 1400967

Graphite Processing Plant

Grinding Mills:

SAG Mill: One (1)
- Make: Outotec
- Type: Trunnion Supported SAG Mill
- Condition: New in OEM Packaging (In Storage since 2018)
- Size: 3.7m Diameter x 1.5m Effective Grinding Length (12.1ft Dia. x 4.9ft)
- Discharge: Grate Discharge
- Liner: Poly-Metallic Liners
- With Motor
  - Power Output: 350HP
  - Voltage: 575V
- With a 250kW Variable Speed Single Pinion SCIM Drive
Rod Mill: One (1)
- Make: Outotec
- Type: Trunnion Supported Rod Mill
- Condition: New in OEM Packaging (In Storage since 2018)
- Size: 2.7m Diameter x 4.1m Effective Grinding Length (8.8ft Dia. x 13.5ft)
- Discharge: Overflow Discharge
- Liners: Cr-Mo Steel Liners (Note: Rods May Have Been Replaced with Ceramic Balls to Avoid Damaging the Large Flakes)
- With Motor:
  - Power Output: 450HP
  - Voltage: 575V
- With a 340kW Variable Speed Single Pinion SCIM Drive
Polishing Mills: Two (2)
- Make: Outotec
- Type: Trunnion Supported Ball Mills
- Condition: New in OEM Packaging (In Storage since 2018)
- Size: 3.2m Diameter x 5.6m Effective Grinding Length (10.5ft Dia. x 18.4ft)
- Discharge: Overflow Discharge
- Liners: Rubber Liners
- With Motors:
  - Power Output: 1000HP
  - Voltage: 4160V
- With a 725kW Variable Speed Single Pinion SCIM Drives
Polishing Mills: Two (2)
- Make: Outotec
- Type: Trunnion Supported Ball Mills
- Condition: New in OEM Packaging (In Storage since 2018)
- Size: 2.7m Diameter x 4.1m Effective Grinding Length (8.9ft Dia. x 13.5ft)
- With Motors:
  - Power Output: 450HP
  - Voltage: 575V
- With a 340kW Variable Speed Single Pinion SCIM

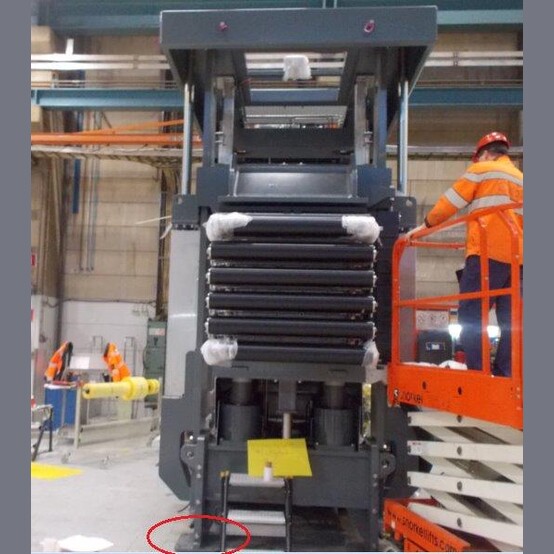

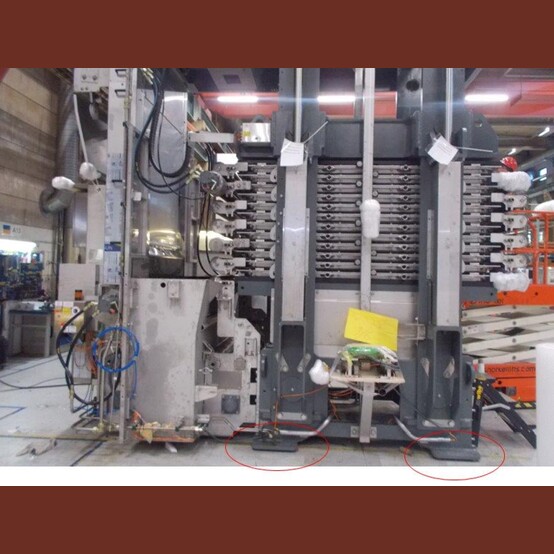

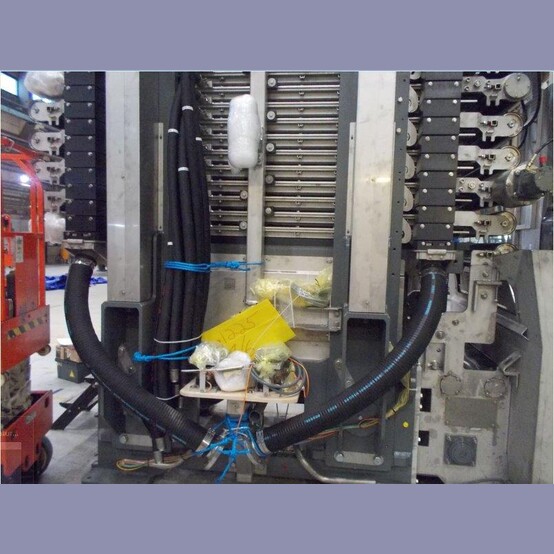

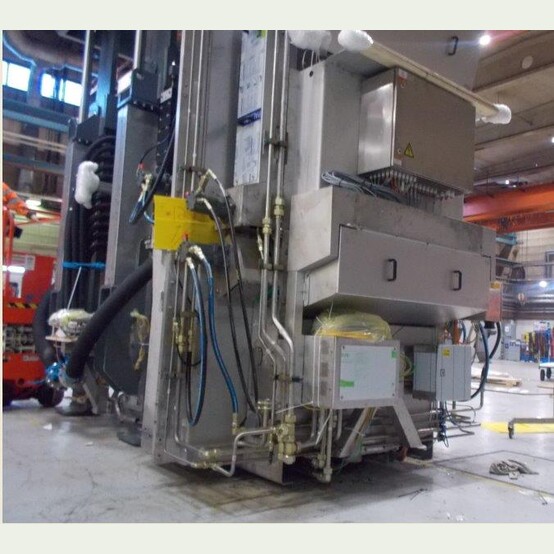

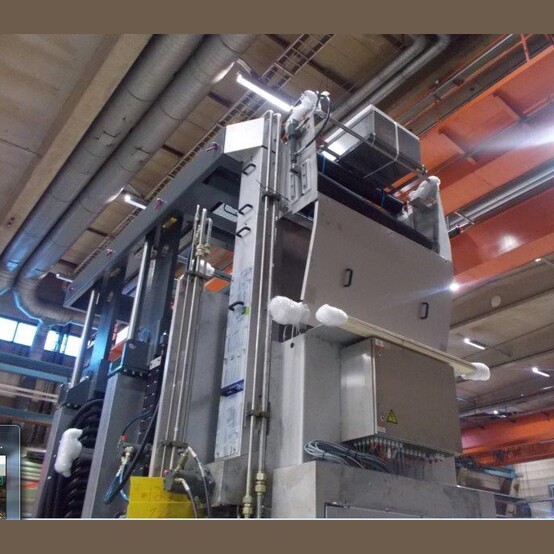

Filter Presses:

Make: Outotec

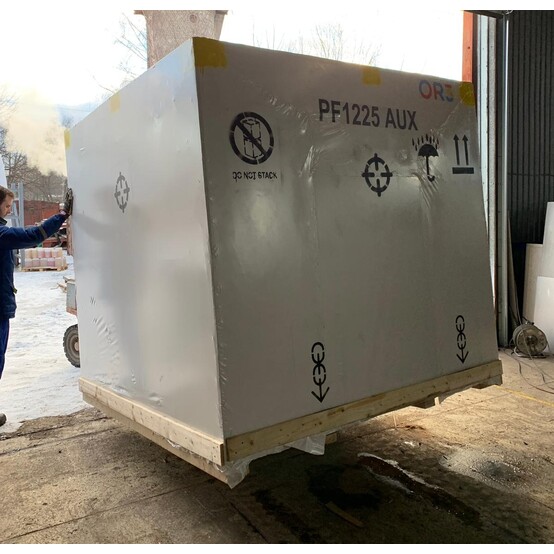

- Concentrate Filter-Press: PF1225
  - Model: PF1225 30/35 M15 1 60
  - Condition: New in OEM Packaging (In Storage since 2018)

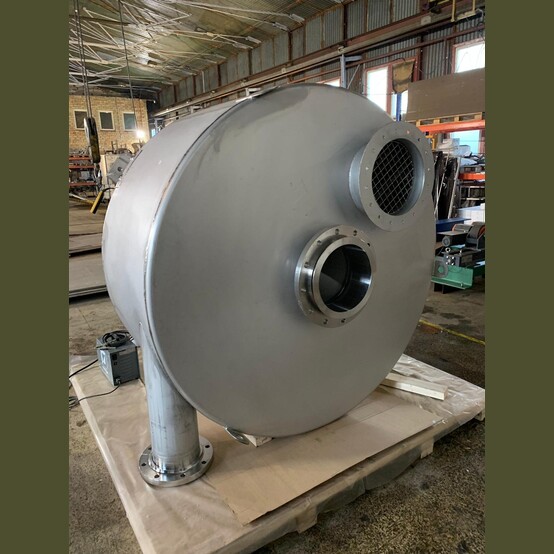

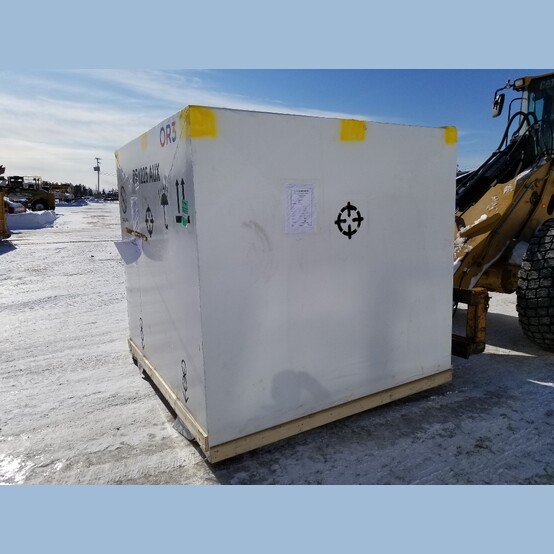

  - Hydraulic Unit & Air Release Tank (Fully Assembled)

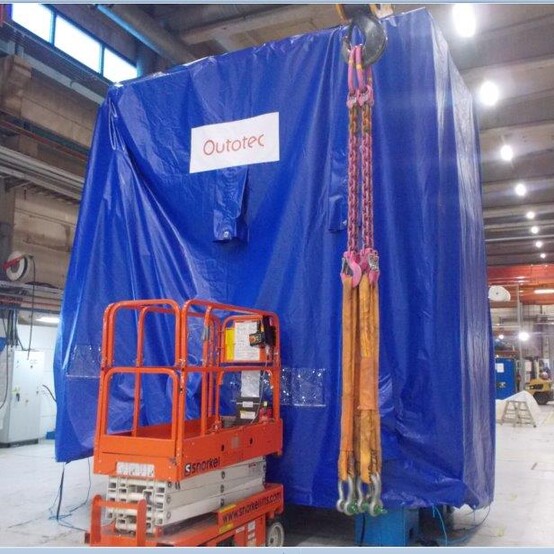

- Tailings Filter-Press: FFP102
  - Model: FFP1516 30/40 M60
  - Condition: New in OEM Packaging (In Storage since 2018)
  - With Hydraulic Power Unit & Water Station

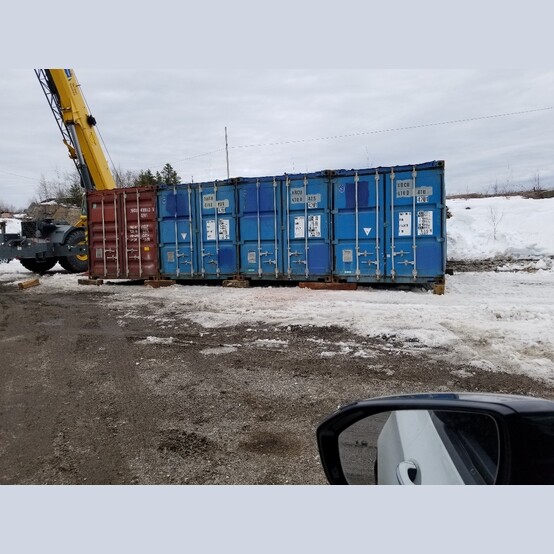

  - Disassembled in (4) 40ft HC Containers
  - Overall Dimensions:
    - Length: 13,460mm
    - Width: 3,834mm
    - Height: 4,515mm
    - Weight: 50,000 kgs

Flotation Equipment:

12 Flotation Cells (No Platework)
- The Components to Fabricate the Cells and Columns were Partially Delivered - Fabrication Halted with Financing went Uncompleted
8 Flotation Columns (No Platework)
- The Components to Fabricate the Cells and Columns were Partially Delivered - Fabrication Halted with Financing went Uncompleted

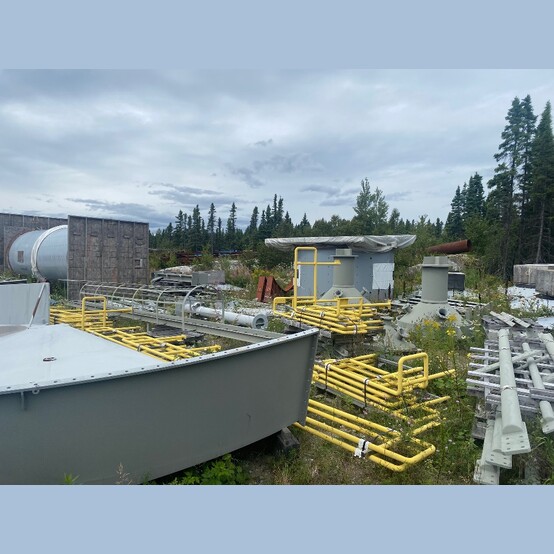

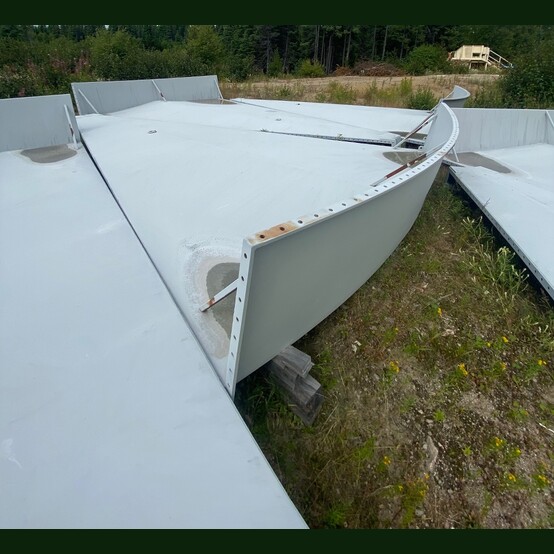

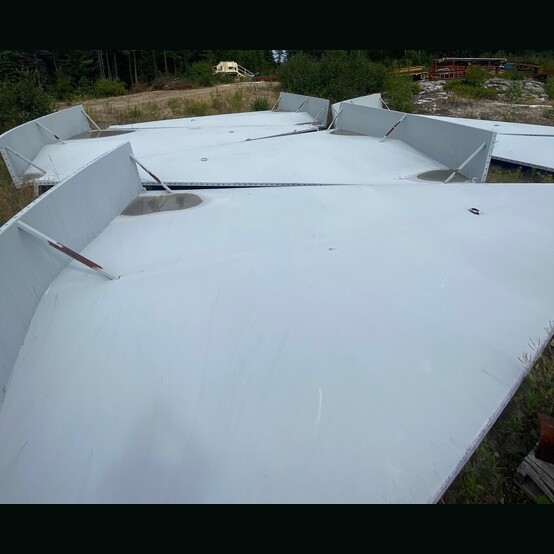

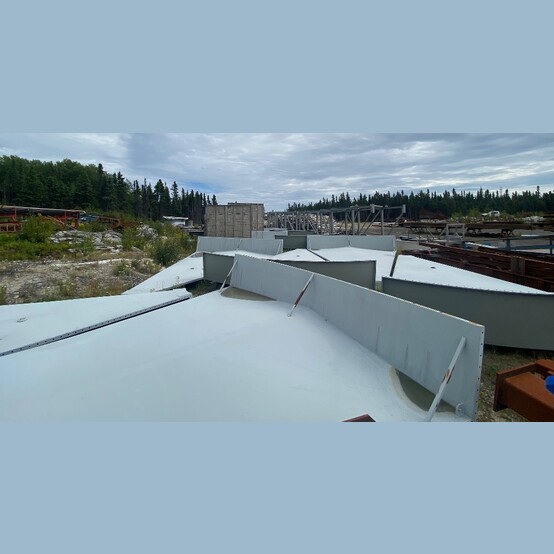

Thickeners:

9m Concentrate Thickener
- Feed Rate, Dry: 6.7 TPH
- Weld-Type
- Work Completed/To Be Done:
  - Tank (Divided in 2 Half Sections) - 100% Welding Complete, Paint Remaining
  - Bridge - 100% Welding Complete, Paint Remaining
  - Columns and Brace - 100% Complete
  - Rake - 100% Complete
  - Drive and Feed - Not-Started
15m Pre-Concentrate Thickener
- Feed Rate, Dry: 7.5 TPH
- Bolt-Type
- Work Completed/To Be Done:
  - Tank - 100% Complete
  - Bridge - 100% Complete
  - Column and Brace - 100% Complete
  - Rake - 100% Welding Complete, Paint Remaining
  - Feed - Welding 50% (Can Confirm with More Accuracy in Spring)
  - Drive - Not-Started
18m Tailings Thickener
- Feed Rate, Dry: 17.6 TPH
- Bolt-Type
- Work Completed/To Be Done:
  - Tank - 100% Complete
  - Bridge - 100% Complete
  - Column and Brace - 100% Complete
  - Rake - 100% Welding Complete, Paint Remaining
  - Feed - Not Started
  - Drive - Not Started
Location: Eastern Canada
