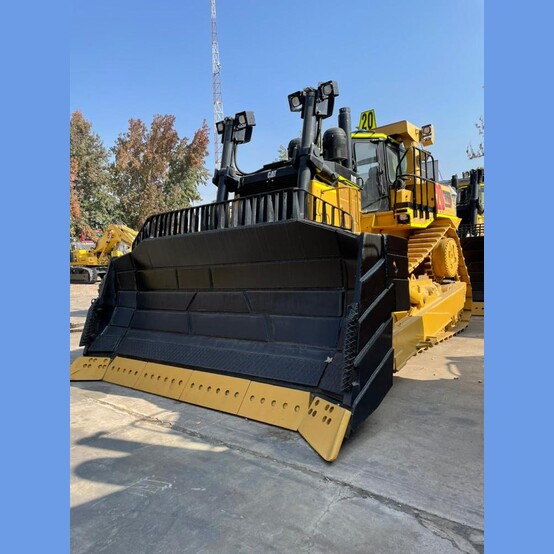

2011 CAT D10T Dozer

  • Make: Caterpillar
  • Model: D10T
  • Year: 2011
  • Condition: Used, Running and Ready to Work
  • Hours: 13,822
  • Very Good Undercarriage

  • General Specifications For CAT D10T:

    • Engine
      • Number Of Cylinders: 12
      • Engine Make: Caterpillar
      • Engine Model: C27 ACERT
      • Gross Power: 646HP @1800rpm
      • Displacement: 1647.5in³
      • Aspiration: Turbocharged

    • Transmission
      • Transmission Type: Powershift
      • Number Of Forward Gears: 3
      • Number Of Reverse Gears: 3
      • Max Speed - Forward: 7.9mph
      • Max Speed - Reverse: 9.8mph

    • Blade:
      • Type 10U
      • Capacity: 22m³ (28.8yd³)
      • Width (Over End Bits): 5,260mm (17ft 3in)
      • Height: 2,120mm (6ft 11in)
      • Digging Depth: 674mm (26.5in)
      • Ground Clearance: 1,497mm (58.9in)
      • Maximum Tilt: 1,074mm (42.3in)

    • Hydraulic System
      • Pump Type: Gear Driven
      • Relief Valve Pressure: 2725 PSI
      • Pump Flow Capacity: 107 Gal/min

    • Undercarriage
      • Shoe Type: ExtremeService
      • Track Gauge: 8.37ft
      • Standard Shoe Size: 24in
      • Number Of Track Rollers Per Side: 8
      • Number Of Shoes Per Side: 44
      • Ground Contact Area: 7,326in²
      • Track Pitch: 10.2in

    • Operational
      • Operating Weight: 146,500 lbs.
      • Fuel Capacity: 318 Gal
      • Cooling System Fluid Capacity: 34.9 Gal
      • Engine Oil Capacity: 18 Gal
      • Hydraulic Fluid Capacity: 38 Gal
      • Powertrain Fluid Capacity: 51 Gal
      • Final Drives Fluid Capacity: 6 Gal
      • Operating Voltage: 24V
      • Alternator Supplied Amperage: 95 Amps

    • Overall Dimensions:
      • Length: 30.4ft (With Blade)
      • Width: 10.4ft
      • Height: 13.4ft
      • Weight: 146,500 Lbs.

  • Location: South America
