150 - 200 TPD Merrill Crowe Gold/Silver Processing Plant ID: 206702


Item Details:

Coarse ore bin  Bolted Construction
Coarse ore feeder FMC - approx 36 in. X 8 ft. - 2 drives

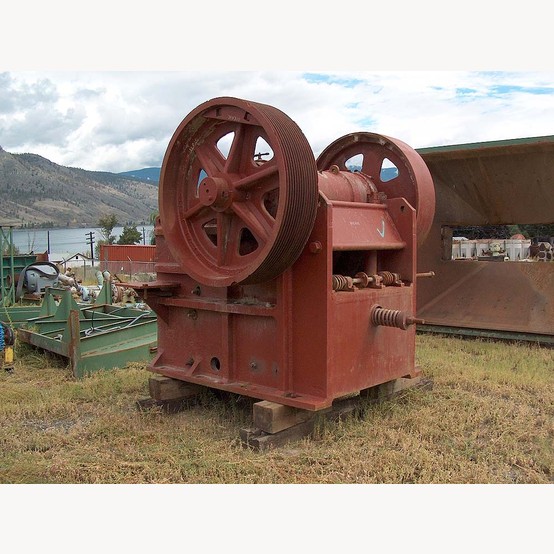

Jaw crusher 25 in. X 42 in.

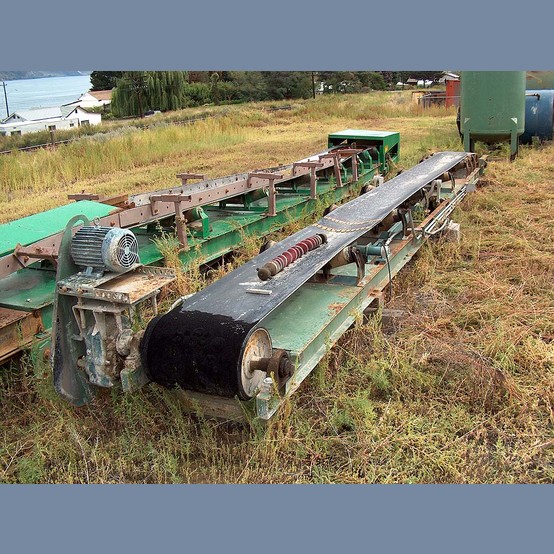

Conv No. 1 24 in. X approx. 10 ft.
Conv No. 2 24 in. X approx. 35 ft.
Vibrating screen 4 ft. X 8 ft. AC - low head - double deck
Electromagnet approx. 2 ft. X 2 ft. - Dings - 115 V
Conv No. 3  24 in. X approx. 28 ft.

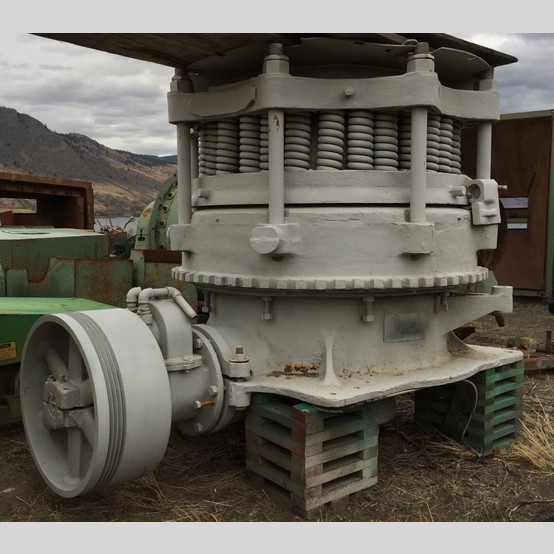

Cone crusher cw lube system  3 ft.

Fine ore feeder  12 in. wide Vibrating feeder

Fine ore bin 12" wide Vibrating bin
Ball mill feed conveyor 18" X 15'
Weightometer Ramsey

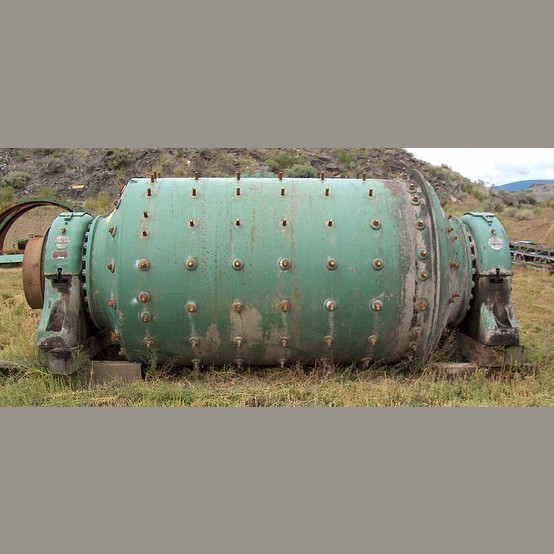

Ball mill 150 HP Hardinge - 6 ft. dia. x 9.5 ft.

Replacement metal liners - ball mill Spare set Liners - complete except for grates and disch head
Grinding balls approx. 10 tons
Cyclone feed pump 3" Slurry
Cyclones Krebs - 10 in.
Mineral jig  16 in. x 24 in. duplex

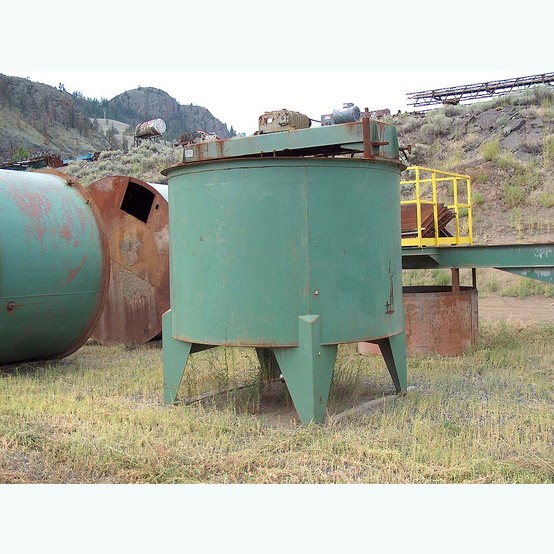

Conditioning tank 5 ft. x 5 ft.
Flotation air blower Roots

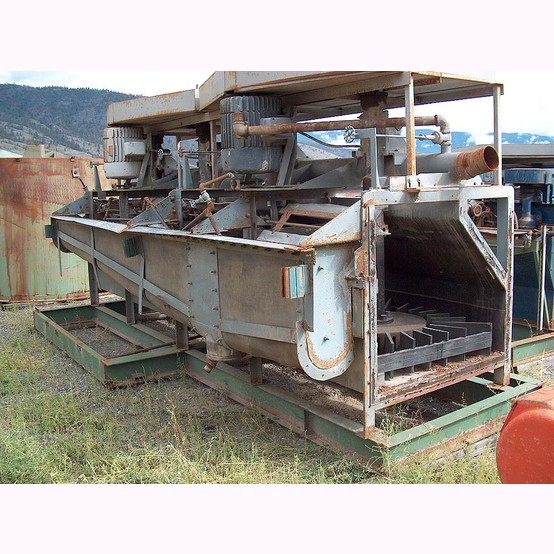

Rougher - scav flot machines 30 cu ft.  8 cells
Cleaner flot machine  18 SP - 3 cells
Concentrate pumps 1 in. vertical
Concentrate thickener 9 ft. diameter

Tailing Thickener 16 ft. diameter

Tailing pump 3 X 3 Slurry Pump
Sump pumps 2.5 in. x 4 ft. Vertical
Sump pumps 1.5 in. x 4 ft. Vertical

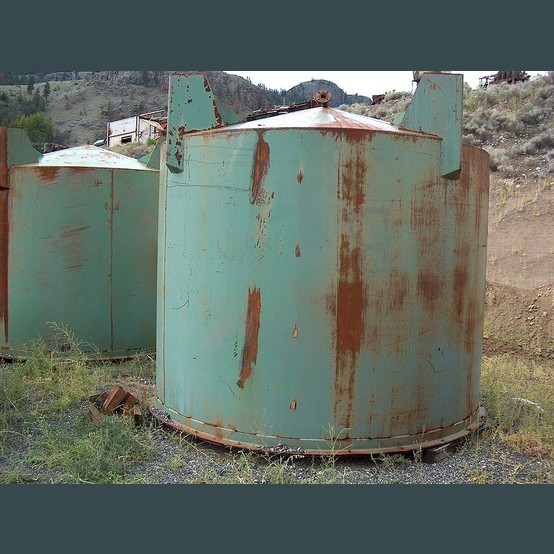

Leaching tanks 10 ft. dia. X 8 in. high
Misc tanks 4 @ 9 ft. dia. x 8 ft. high
Refinery furnace  12 in. diameter crucible
Pressure filter 16 in. diameter horizontal
Electrolytic cells with Rectifiers  4 ft. w x 5 ft. h X 15 ft. long - SS & Al electrodes

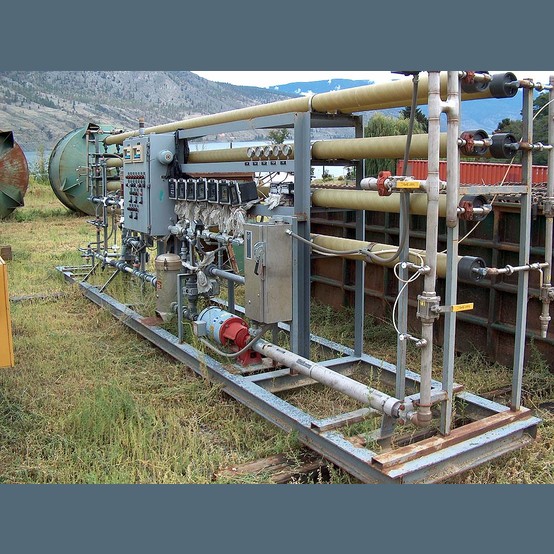

Piping and control manifold skid
Clarifier 3 ft. dia. X 8 ft. high
Receiver  3 ft. dia. X 8 ft. high

Misc pumps - slurry  3 in. & 4 in.

Regrind ball Mill Hazen Quinn - 16 in. Dia. X 48 in. Long

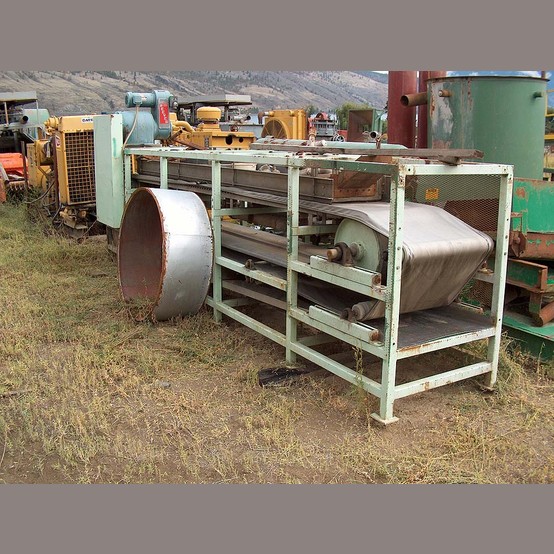

Horizontal belt filter cw vacuum and filtrate pumps

Shop compressor

Sample pressure filter

Misc pumps   Water & Solution

Diaphragm pump

Assay furnace DFC electric - 3 phase
Drying oven Double Door
Jaw crusher Lab Jaw

Motor control center Allen Bradley
  CB + mag starters /Various Sizes
