Goulds e-SV Vertical Turbine Pump

Quantity: 2 Units

• Make: Goulds
• Model: 66SV20NG8E2C
• Type: e-SV Vertical Multi-Stage Pump
• Stainless Steel Construction
• Inlet: 4in Diameter
• Outlet: 4in Diameter
• Max Efficiency Flow: 87m³/h
• Flow Range: 36 ÷ 102 m³/h
• Maximum Head: 220m (721ft)
• Motor Power: 7.5 ÷ 45 kW
• Max η ( % ) of Pump: 78
• Standard Temperature: -30°C to +120°C

  View Pump Curve Below

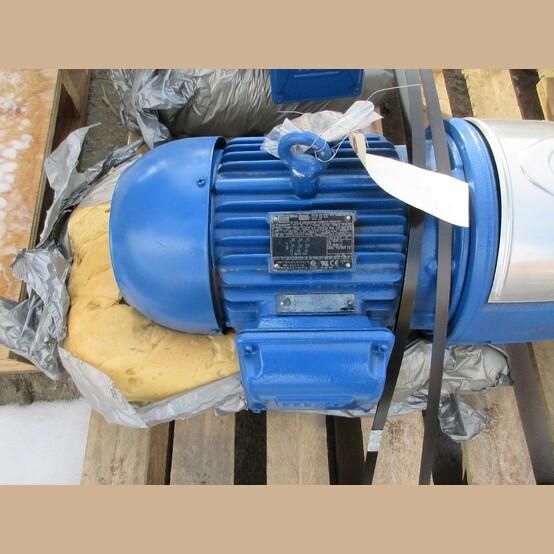

• Drive: WEG W22 Electric Motor
  • Power Output: 5HP
  • Speed: 1755 RPM
  • Voltage: 575 Volts
  • Frequency: 60Hz
  • Phase: 3-Phase


• Overall Dimensions:
  • Length: 12in
  • Width: 14in
  • Height: 40in


• Location: Savona, British Columbia, Canada
