2ft. x 4ft. UHF Finish Concentrating Tables

Quantity: 2

• Make: Graphic Engineering
• Model: 2040FT
• Style: UHF Finishing Table (Ultra High Frequency)
• Size: 2Ft. x 4Ft.
• Water Inlet Size: 0.75" (19mm)
• GPM: 3
• Capacity: 0.1 TPH
• Riffles: Straight UHMW


• Drive:
  • Leeson 04D17FK1H Direct Current
    • HP: 0.5 HP
    • RPM: 1750
    • Frequency: D.C.
    • Voltage: 90V
    • Amperage: 5A
    • Frame: VS56C
    • Duty: Continuous

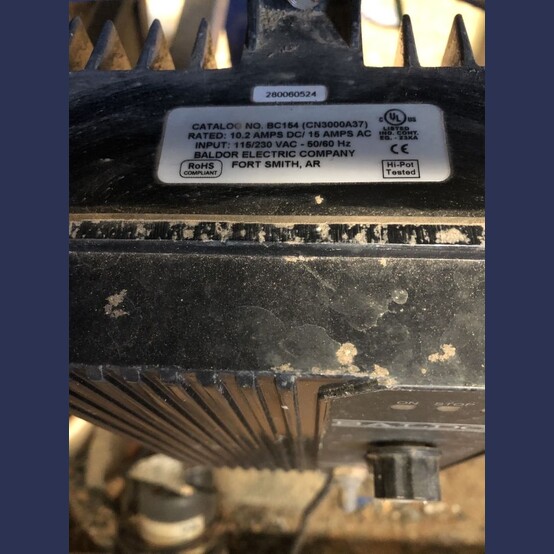

  • Paired to Baldor VFD DC Drive
    • Model: BC 154
    • Input Voltage: 115/230 VAC, 60/50Hz
    • Max A.C. Load: 15 Amps
    • Output Voltage: 0-90 VDC
    • Max Output Current: 10.2 Amps D.C.


• Overall Dimensions:
  • Length: 60"
  • Width: 40"
  • Height: 46"
  • Weight: 200 Lbs. (Approx.)


• Location: Southeastern USA
