• Maximum feed approx. 6-8 tons/hour of fine material.
    • 1/3 in. (8mm) minus.
  • Concentrator belt and trommel are independently driven.
  • Digital variable frequency controller housed within a waterproof enclosure.
    • 2.2 kW (3.0 HP) 3 phase drive motor.
    • Reduction gearbox.
  • HPC-30 requires approx. 100 gallons/minute.
  • Scrubbing & Screening trommel is 168 in. (4.27 m) long x 20 in. (0.5 m) diameter.
    • 100 in. (2.5 m) 2-stage scrubber.
    • Trommel inclination, height, and speed are independantly adjustable.
  • Feed hopper designed to receive feed from 18 in. (450 mm) conveyor.
  • HPC FC-30 Feeder.
  • Feeder is custom designed to suit HPC-30 Trommel.
  • Hopper built with 1/4 in. plate steel with approx. 6 ton capacity.
  • 6 ft x 8 ft top opening with 3 in. grizzly.
  • Extendable support legs.
  • 18 in. radial control gate (manual).
  • 18 in. x 18 ft. long conveyor.
  • 3 hp (2.2kW) electric motor.
  • 3 phase 380-480 volt electrical supply required.
  • Shaft mounted gear reduction V-belt drive.
  • Lagged head pulley and wing tail pulley.
  • 2 ply conveyor belting with 3/16 in. x 1/16 in. covers.
  • VFD controller for speed adjustment with detachable cabinet which mounts on HPC-30.
  • Mobile single axle design.
Sold

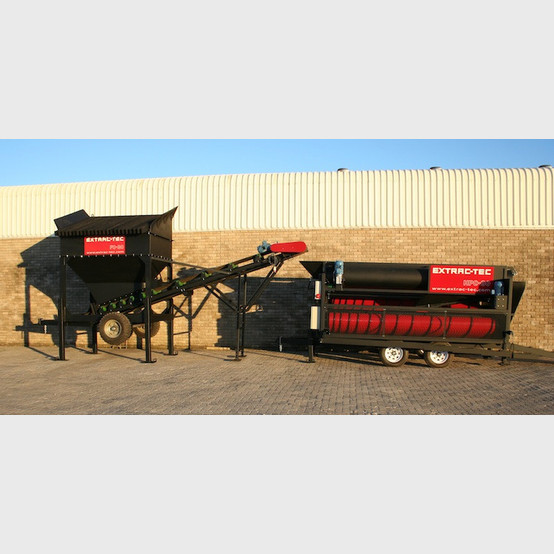

Image 1 of 3

Manufacturer:Extrac-Tec

Extrac-Tec
