Jaw Crusher Pilot Plant for Sale ID: 54162

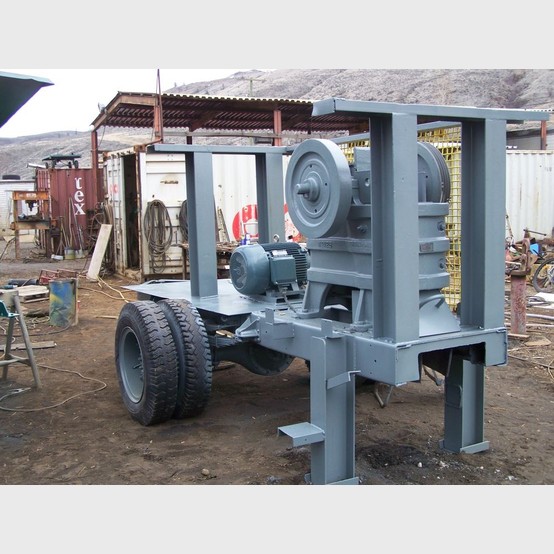

  • 8 x 12 W.S. Barron & Son jaw crusher.
    • 25 hp, 230/460 volt, 1200 rpm electric motor.
    • Mounted on single axle dual wheel chassis.
  • 18 in. x 7 ft. long overhead belt feeder.
    • 2 hp, 230/460 volt gearhead drive motor.

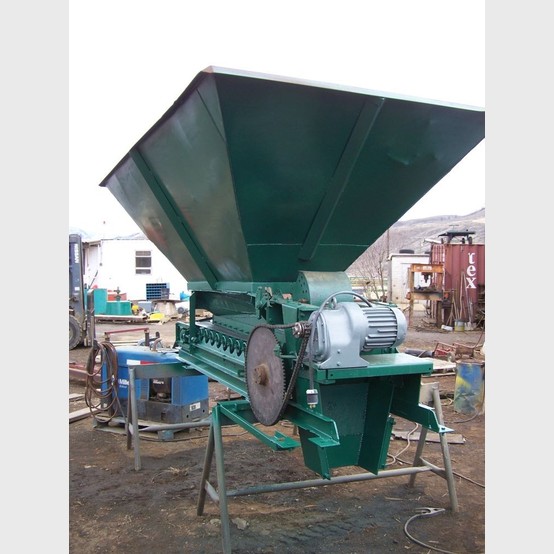

    • 6 ft. x 12 ft. x 4 ft. deep feed hopper.

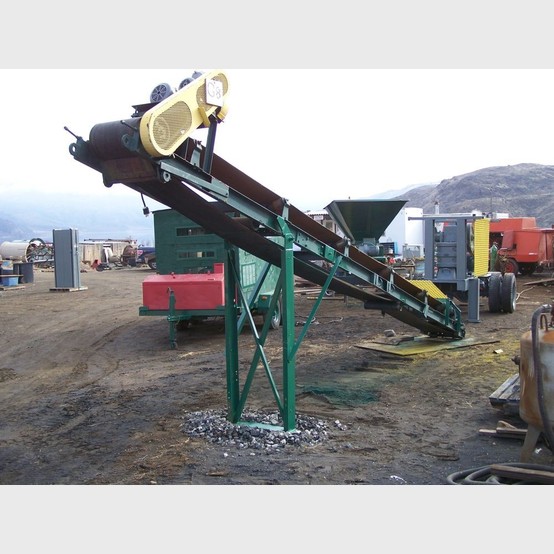

  • 18 in. wide x 28 ft. crusher discharge conveyor.
    • 5 hp, 230/460 volt motor.
    • Belt driving a right angle gear reducer.
    • 4 in. dia. 20 deg. troughing idlers.
    • 3 ft. long receiving hopper.
    • 10 in. dia. head pulley.
    • 12 in. dia. tail pulley.

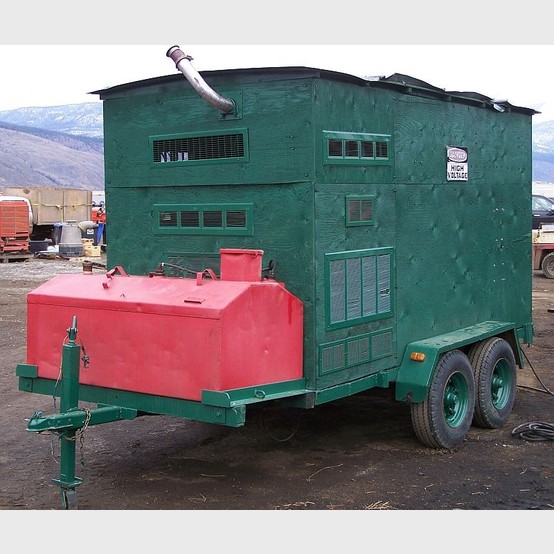

  • 37.5 KVA Cat diesel genset.
  • D-320-A Cat turbo engine.
    • 73 hp, 1800 rpm, 120/240 volt.
    • Includes switch gear to run feeder, jaw, & conveyors. (Feeder drive through VFD)
    • Main disconnect plus three additional starters.
    • Generator out-put panel.
    • Internal lighting
    • 3/4 in. plywood encloser.
  • All mounted on tandem axle trailer complete with 150 gallon fuel tank.
